Square D QDA221101 Molded Case Circuit Breaker
- 110A
- 2 Pole
- I-Line
Square D
QDA221101
Molded Case Circuit Breaker
Brand
Square D
SKU
QDA221101
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

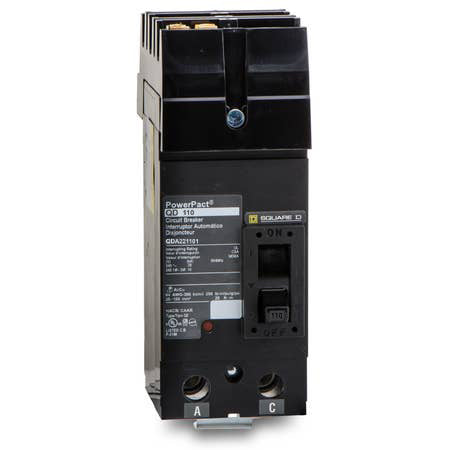

Square D QDA221101 - 110A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
Description
Built for industrial applications, the QDA221101 is a 110A, 240VAC molded case circuit breaker. It utilizes thermal-magnetic technology to deliver reliable long-time and instantaneous (LI) protection. This Q-Frame breaker mounts into Square D I-Line panelboards using a specialized AB phase connection. It serves as a direct cross-reference for the discontinued Q221101. The unit boasts a 25kAIC rating at 240V and includes the Visi-Trip visual indicator to easily spot a tripped condition.Specifications
| Brand | Square D |
|---|---|
| Part Number | QDA221101 |
| Series | QDA |
| Amperage | 110A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip |
Product FAQs
6 answersWhat does the "1" suffix in the QDA221101 catalog number signify?
The "1" at the end of the part number indicates that this 2-pole breaker is configured with an AB phase connection for the I-Line bus.
How much bus space does the QDA221101 require in an I-Line panelboard?
This 2-pole PowerPacT Q-frame circuit breaker requires 3 inches of mounting space on the I-Line bus.
What legacy circuit breaker does the QDA221101 replace?
The QDA221101 is the direct cross-reference and replacement for the discontinued Square D Q221101 circuit breaker.
Is the QDA221101 suitable for HVAC applications?
Yes, this circuit breaker is HACR rated, making it approved for use with heating, air conditioning, and refrigeration equipment.
Can this breaker be used in standard QO or NQ load centers?
No, the QDA221101 features an I-Line style plug-in connection and is exclusively compatible with Square D I-Line panelboards and switchboards.
How can I visually identify if the QDA221101 has tripped?
This breaker features the Square D Visi-Trip indicator, which displays a highly visible red flag in the window when the breaker is in a tripped state.
