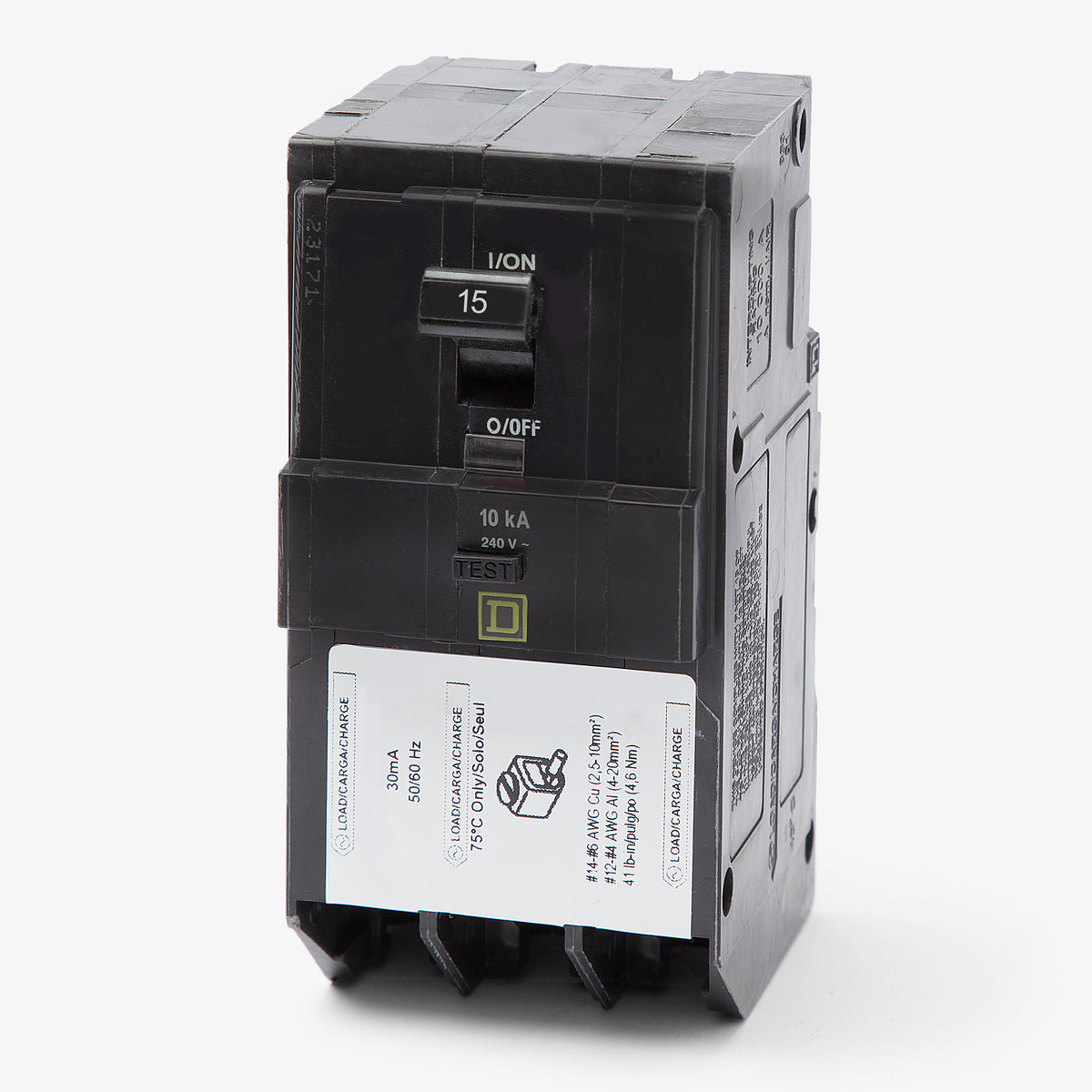

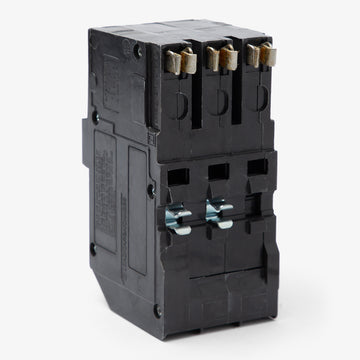

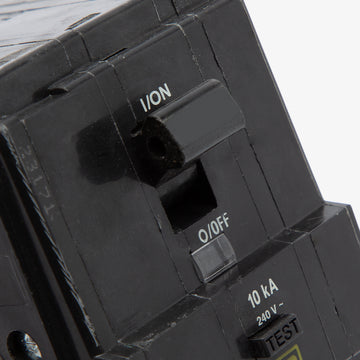

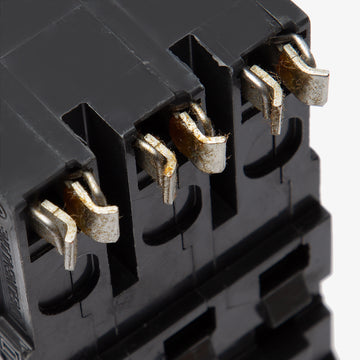

Square D QO315EPD GFEP Miniature Circuit Breaker
- 15A
- 3 Pole
- Plug-On
Square D
QO315EPD
GFEP Miniature Circuit Breaker
Brand
Square D
SKU
QO315EPD
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO315EPD - 15A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
15A GFEP Miniature Circuit Breaker
15A GFEP Miniature Circuit Breaker
Description
Designed for three-phase commercial systems, the QO315EPD delivers reliable 30mA ground fault protection. This 15A component shields sensitive machinery from low-level electrical leaks. Featuring a convenient plug-on form factor, the three-pole unit installs quickly into compatible enclosures. It is specifically rated for use within Square D QO load centers and NQ panelboards. A built-in Visi-Trip indicator allows maintenance personnel to spot tripped circuits instantly along the panel line.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO315EPD |
| Series | QO |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 489, UL 1053 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Mercury Free |
Product FAQs
5 answersWhat is the difference between an EPD and a standard GFI breaker?
An EPD (Equipment Protection Device) trips at a 30mA ground fault threshold to protect equipment from damage. A standard GFI (Class A) breaker trips at a 5mA threshold to provide personnel protection against electrical shock.
Can I install the QO315EPD in a Square D Homeline panel?
No. Square D QO and Homeline breakers are not interchangeable. This breaker is exclusively designed for QO load centers and NQ panelboards.
How many panel spaces does the QO315EPD require?
As a 3-pole breaker, it requires three adjacent spaces in a compatible QO load center or NQ panelboard.
Where does the pigtail wire connect during installation?
The white pigtail wire must be connected directly to the neutral bus bar in the panel. This connection is required to power the internal ground fault monitoring circuitry.
What is the bolt-on equivalent for this breaker?
The QO315EPD is a plug-on breaker. If your NQ panelboard requires a bolt-on connection, the correct catalog number is QOB315EPD.
