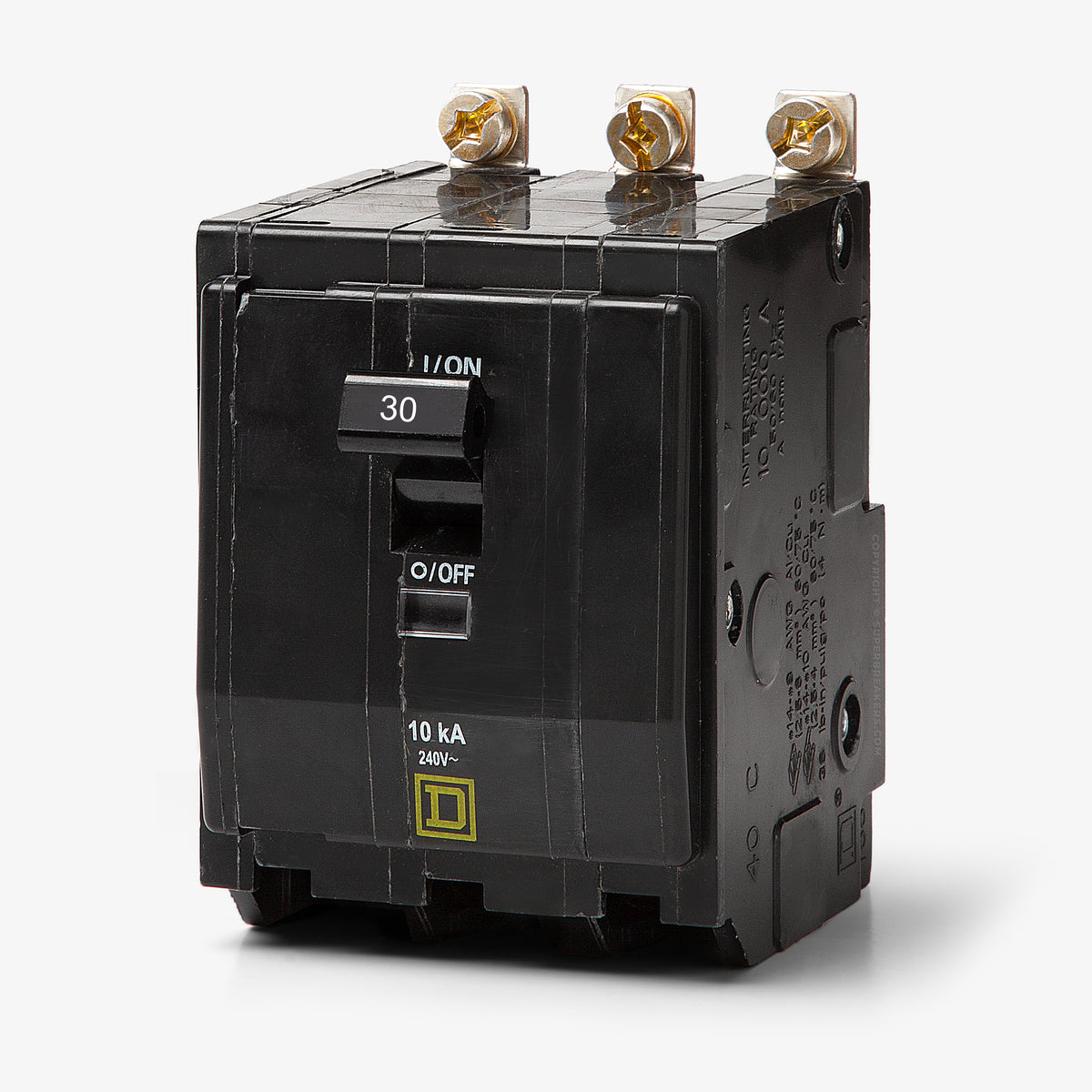

Square D QOB330 Miniature Circuit Breaker
- 30A
- 3 Pole

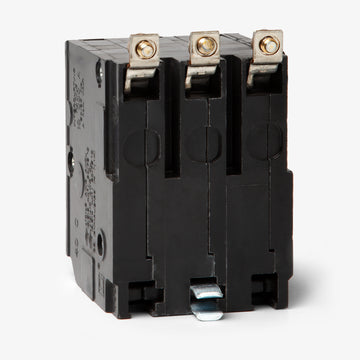

- Bolt-On
Square D
QOB330
Miniature Circuit Breaker
Brand
Square D
SKU
QOB330
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB330 - 30A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Quantity
Square D QOB330 - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB330 |
| Series | QOB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1, HACR, RoHS, REACh |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Quantity
Square D QOB330 - 30A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB330-R |
| Series | QOB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1, HACR, RoHS, REACh |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Similar Items
QOB3301021 - 30A 3 Pole Miniature Circuit Breaker
35A 3 Pole Miniature Circuit Breaker
25A 3 Pole Miniature Circuit Breaker
Description
A staple for commercial power distribution, the QOB330 delivers dependable overload and short-circuit protection for 30-amp, three-phase circuits. This standard 10kAIC breaker utilizes proven thermal-magnetic trip technology to safeguard wiring from electrical faults. Designed to mount into Square D NQ and NQOD panelboards, the bolt-on connection ensures a tight, reliable fit. Maintenance is simplified by the integrated Visi-Trip window, which flashes a red flag when the breaker trips.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB330-R |
| Series | QOB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1, HACR, RoHS, REACh |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
6 answersCan I install the QOB330 in a standard Square D QO load center?
No. The QOB330 features a bolt-on connection designed exclusively for Square D NQ and NQOD panelboards. Standard QO residential and commercial load centers require plug-on breakers, not bolt-on.
How many panel spaces does the QOB330 require in an NQ or NQOD panelboard?
This 3-pole miniature circuit breaker occupies three standard 3/4-inch pole spaces.

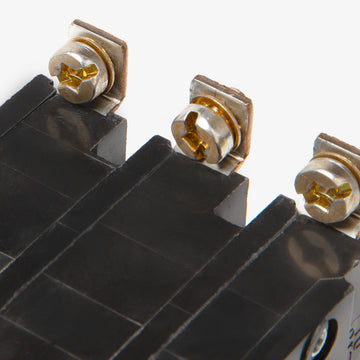

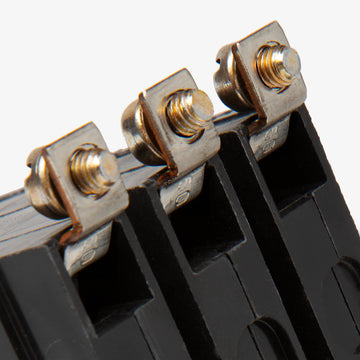

What is the recommended tightening torque for the load terminals on the QOB330?
The pressure plate wire terminals should be tightened to 35.4 lb-in (4 N.m) for 14-8 AWG copper or aluminum conductors.
Are there alternate versions of this 30A breaker with higher short circuit interrupting ratings?
Yes. If your application requires more than 10kAIC at 240VAC, the QOB330VH provides 22kAIC, and the QHB330 provides 65kAIC.
Can I use the QOB330 on a 3-phase 208Y/120V electrical network?
Yes. It is rated for a maximum of 240VAC, making it fully compatible with 3-phase 208Y/120V solid-grounded Wye systems as well as 240V Delta configurations.
How can I quickly identify if the QOB330 has tripped in a busy electrical room?
This breaker includes the Square D Visi-Trip indicator. When the breaker trips due to an overload or short circuit, a bright red flag snaps into the window on the face of the breaker for immediate visual identification.
