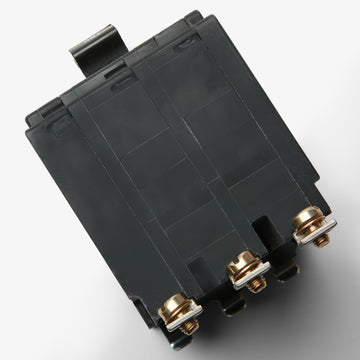

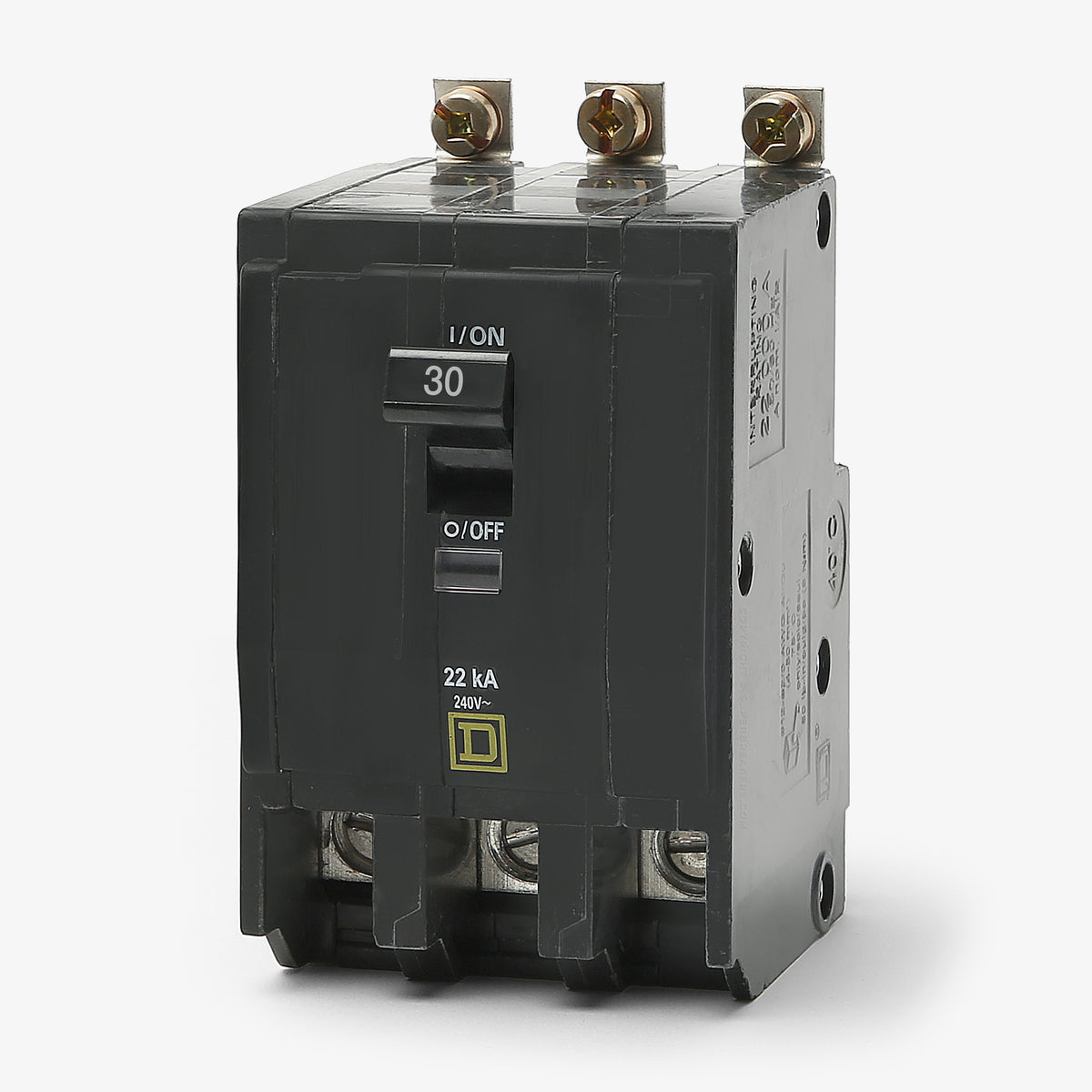

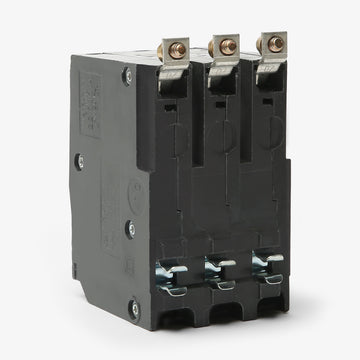

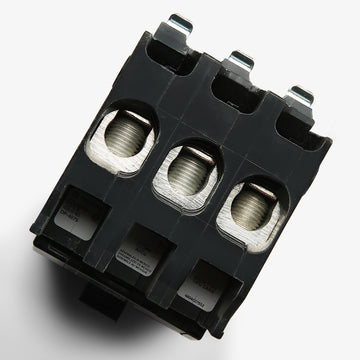

Square D QOB330VH Miniature Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Square D
QOB330VH
Miniature Circuit Breaker
Brand
Square D
SKU
QOB330VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB330VH - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB330VH - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB330VH |
| Series | QOB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, High Interrupting Capacity |
Quantity
Square D QOB330VH - 30A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB330VH-R |
| Series | QOB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, High Interrupting Capacity |
Similar Items
QOB340VH1021 - 40A 3 Pole Miniature Circuit Breaker
20A 3 Pole Miniature Circuit Breaker
15A 3 Pole Miniature Circuit Breaker
Description
Providing enhanced fault protection, the Square D QOB330VH is a 3-pole, 30A miniature circuit breaker with a high interrupting capacity. It utilizes proven thermal-magnetic trip technology to safeguard commercial electrical systems. This bolt-on breaker is fully compatible with Square D NQ and NQOD panelboards, ensuring a secure connection. With an upgraded 22 kAIC rating at 120/240V, it offers superior performance and includes the Visi-Trip red indicator for quick fault identification.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB330VH |
| Series | QOB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, High Interrupting Capacity |
Product FAQs
9 answersWhich panelboards are compatible with the QOB330VH?
This bolt-on circuit breaker is designed specifically for use in Square D NQ and NQOD panelboards.
Can I install this bolt-on breaker in a standard QO load center?
No. Standard QO residential load centers require plug-on QO breakers. The QOB330VH is a bolt-on breaker intended for commercial NQ and NQOD panelboards.
What does the "VH" signify in the QOB330VH catalog number?
The "VH" suffix indicates a very high interrupting rating. While standard QOB330 breakers are rated at 10 kAIC, the QOB330VH provides an upgraded 22 kAIC interrupting capacity at 120/240VAC.
Is this circuit breaker HACR rated?
Yes, the QOB330VH is HACR rated, making it suitable for heating, air conditioning, and refrigeration equipment applications.
Does the QOB330VH include the Visi-Trip indicator?
Yes, it features the Square D Visi-Trip indicator, which displays a high-visibility red flag when the breaker trips due to a fault condition.
What is the recommended terminal tightening torque?
The pressure plate terminals on this breaker require a tightening torque of 40.7 lb-in (4.6 N.m).
How many panel spaces does this 3-pole breaker require?
It utilizes three standard 0.75-inch spaces in the panelboard.
What wire types and sizes can be used with this breaker?
The terminals accept 14 AWG to 8 AWG conductors. It is rated for use with both copper and aluminum wire.
Can the QOB330VH be used as a direct replacement for a standard QOB330?
Yes. It shares the exact same physical footprint and bolt-on mounting style, allowing you to use it in place of a standard 10 kAIC QOB330 when an upgraded 22 kAIC rating is required by the electrical system.
