Square D QOM2175MM Miniature Circuit Breaker
- 175A
- 2 Pole
- Bolt-On
Square D
QOM2175MM
Miniature Circuit Breaker
Brand
Square D
SKU
QOM2175MM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

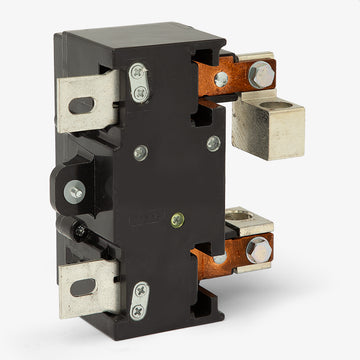

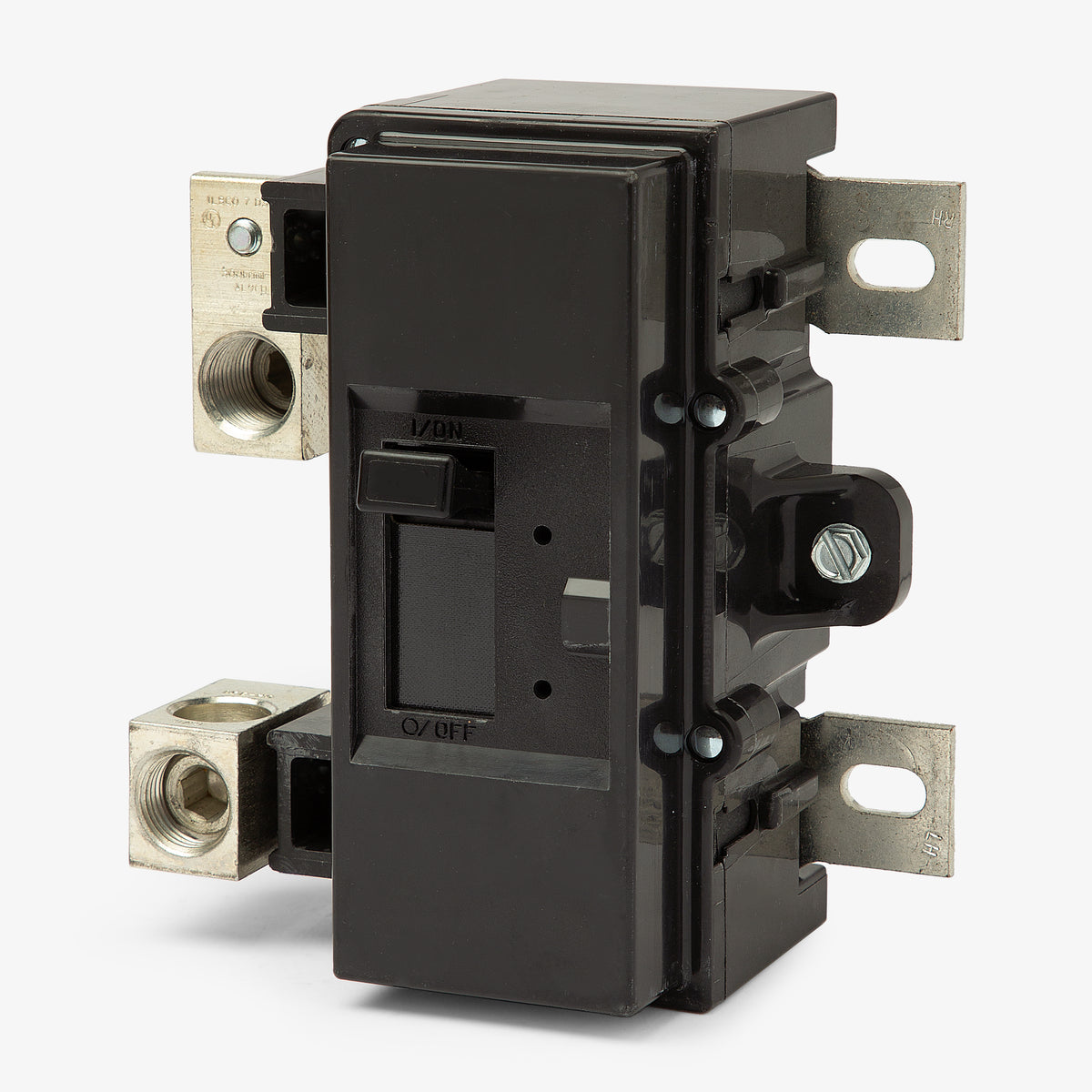

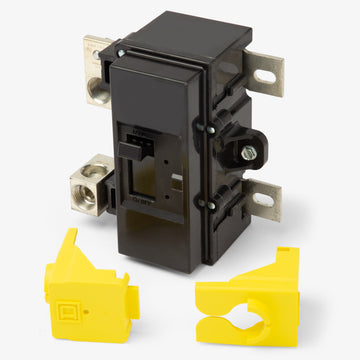

Square D QOM2175MM - 175A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
200A 2 Pole Miniature Circuit Breaker
200A 2 Pole Miniature Circuit Breaker
150A 2 Pole Miniature Circuit Breaker
Description

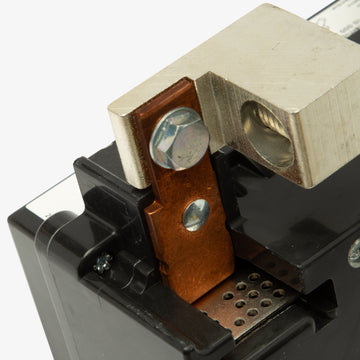

Designed for metering applications, the Square D QOM2175MM is a 175A, two-pole main circuit breaker. It delivers dependable thermal-magnetic protection for multi-family service setups. This bolt-on breaker fits Square D MP Meter-Pak and EZ Meter-Pak metering centers. Box lugs accommodate 4 AWG to 300 kcmil wire for flexible installation. With a 10kAIC rating at 120/240VAC, it meets standard interrupting requirements. The Visi-Trip feature provides clear visual confirmation of a tripped state.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOM2175MM |
| Series | QOM |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | MP Meter-Pak Meter Centers, EZ Meter-Pak Metering Equipment |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Main Breaker |
Product FAQs
6 answersWhat equipment is the QOM2175MM designed to fit?
This breaker is specifically engineered for use in Square D MP Meter-Pak meter centers and EZ Meter-Pak metering equipment. It serves as a main breaker for these multi-family service setups.
What is the difference between the QOM2175MM and the QOM2175VH?
The QOM2175MM is designed for MP and EZ Meter-Pak metering centers and has a 10kAIC rating. The QOM2175VH is used as a main breaker in standard QO and Homeline load centers and features a higher 22kAIC rating.
Can I install the QOM2175MM in a standard QO or Homeline residential load center?
No. While it shares the QOM frame, the MM suffix designates it for Meter Main applications like Meter-Pak centers. Standard QO and Homeline load centers typically require the VH variant, such as the QOM2175VH.
What does the MM suffix mean on this Square D breaker?
The MM indicates that the breaker is designed for Meter Main applications. It is specifically configured to mount in Square D metering equipment rather than standard residential breaker panels.
How does the QOM2175MM mount inside the meter center?
It features a bolt-on mounting design that secures directly to the bus assembly of compatible MP and EZ Meter-Pak metering equipment, ensuring a stable and reliable connection for primary service feeds.
Is there a higher interrupting rating alternative to the QOM2175MM?
Yes, if your metering equipment requires a higher short-circuit current rating, Square D offers the QOM2175MVH, which provides a 22kAIC rating compared to the 10kAIC of the standard MM version.
