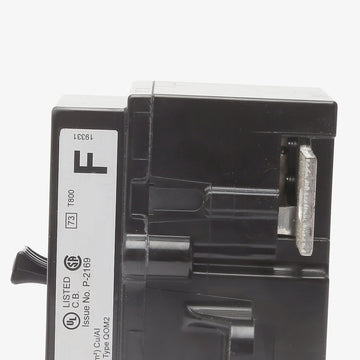

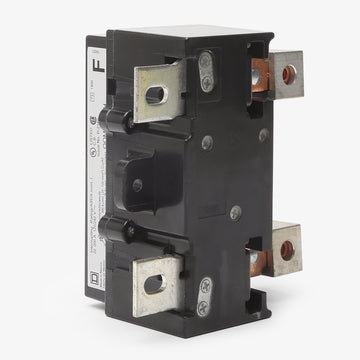

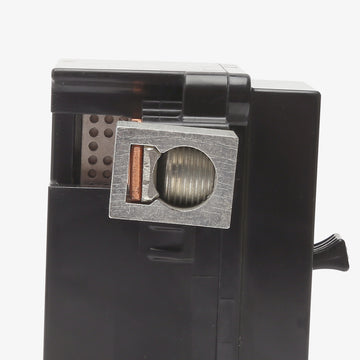

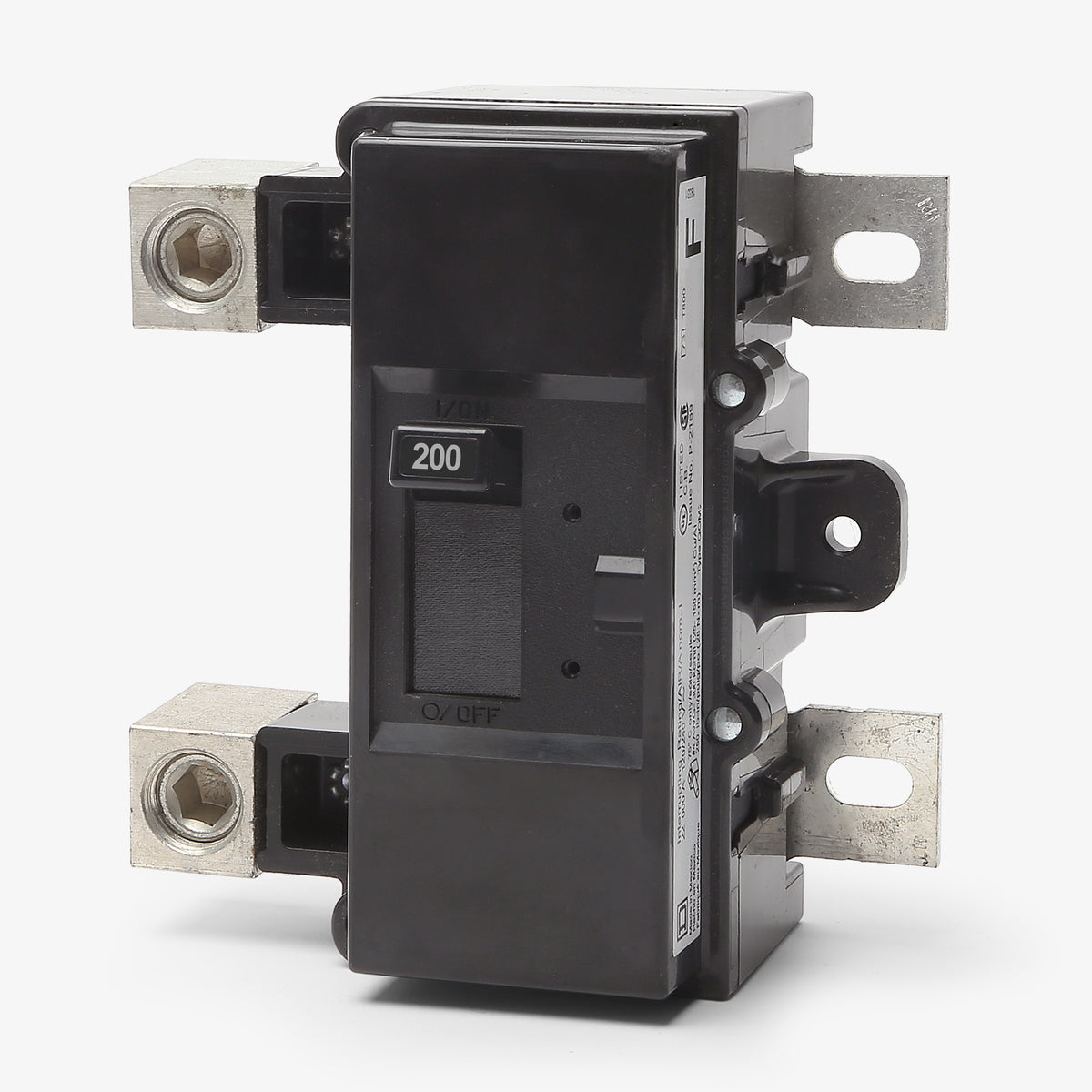

Square D QOM2200VH Miniature Circuit Breaker
- 200A
- 2 Pole
- Bolt-On
Square D
QOM2200VH
Miniature Circuit Breaker
Brand
Square D
SKU
QOM2200VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOM2200VH - 200A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOM2200VH - 200A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOM2200VH |
| Series | QOM |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, Homeline Load Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip |
Quantity
Square D QOM2200VH - 200A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOM2200VH-R |
| Series | QOM |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, Homeline Load Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip |
Similar Items
175A 2 Pole Miniature Circuit Breaker
150A 2 Pole Miniature Circuit Breaker
125A 2 Pole Miniature Circuit Breaker
Description
Designed to act as the primary service disconnect, the Square D QOM2200VH delivers 200A of reliable thermal-magnetic protection. Rated at 22kAIC at 120/240VAC, this two-pole breaker handles modern residential demands. It installs securely into QOM2 frame spaces within Square D QO and Homeline load centers. The bolt-on mounting style ensures a robust connection for main service feeds. The exclusive Visi-Trip indicator provides clear visual confirmation when the breaker trips.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOM2200VH |
| Series | QOM |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, Homeline Load Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip |
Product FAQs
5 answersCan I install the QOM2200VH in a panel that currently has a QOM1 main breaker?
No. The QOM2200VH utilizes the QOM2 frame size, which is physically larger than the QOM1 frame. It will only fit QO or Homeline load centers specifically designed for QOM2 main breakers, typically found on 150A to 225A panels.
What is the recommended tightening torque for the load lugs on the QOM2200VH?
Schneider Electric specifies a tightening torque of 250 lb-in for the main feeder wire lugs on this circuit breaker. Always verify the torque requirements on the breaker's label before completing the installation.
Does installing this main breaker take up branch breaker spaces in a convertible load center?
No. In convertible QO and Homeline main lug load centers, the QOM2 main breaker bolts directly into the main bus area and does not require or occupy any branch breaker pole spaces.
What is the difference between the QOM2200VH and QOM2200MVH?
The QOM2200VH is designed specifically for use as a main breaker in QO and Homeline load centers. The QOM2200MVH features a different lug configuration and is strictly intended for use in metering equipment. The two breakers are not interchangeable.
Can I use this 200A main breaker to upgrade a panel that currently has a 150A main?
You can use the QOM2200VH to upgrade your service only if your existing load center is factory rated for a maximum of 200 amps or higher. You must never install a main breaker that exceeds the maximum amperage rating of the load center bus.
