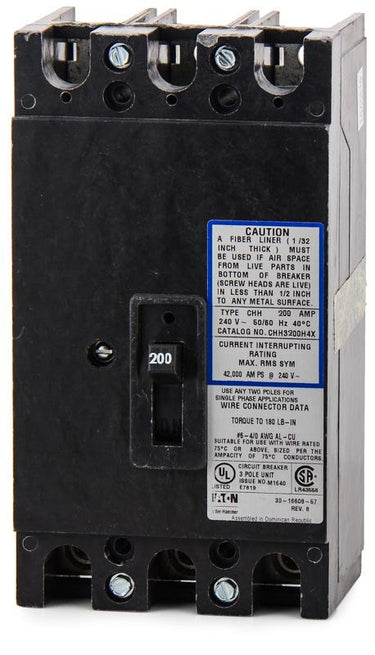

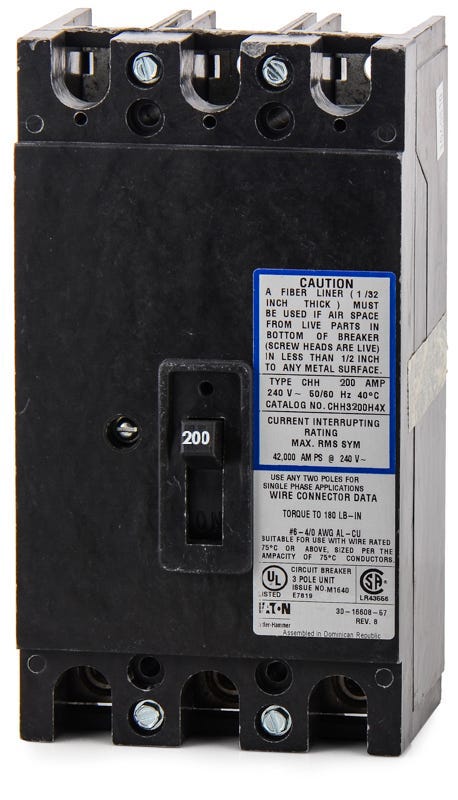

Eaton / Cutler-Hammer CHH3200H4X Molded Case Circuit Breaker
- 200A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
CHH3200H4X
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHH3200H4X
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHH3200H4X - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer CHH3200H4X - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHH3200H4X |
| Series | CHH |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 208Y/120VAC |
| Frame Type | CHH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Modular Metering Stacks (35MM, 37MM, 37SS) |
| Wire Gauge | #2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | #2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main, HACR Rated, High Interrupting Capacity |
Quantity
Eaton / Cutler-Hammer CHH3200H4X - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHH3200H4X-R |
| Series | CHH |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 208Y/120VAC |
| Frame Type | CHH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Modular Metering Stacks (35MM, 37MM, 37SS) |
| Wire Gauge | #2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | #2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main, HACR Rated, High Interrupting Capacity |
Similar Items
225A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerCHH3150H2X
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the Eaton CHH3200H4X is a 3-pole, 200A molded case circuit breaker with thermal-magnetic LI protection. It mounts via a bolt-on connection into Eaton 35MM, 37MM, and 37SS modular metering stacks. For system upgrades, this unit is officially replaced by the CVS3200X model. Delivering a 42kAIC interrupting capacity at 208Y/120VAC, it ensures robust fault clearing. The breaker is fully HACR rated and optimized for tenant main use.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHH3200H4X-R |
| Series | CHH |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 208Y/120VAC |
| Frame Type | CHH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Modular Metering Stacks (35MM, 37MM, 37SS) |
| Wire Gauge | #2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | #2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main, HACR Rated, High Interrupting Capacity |
Product FAQs
5 answersWhich Eaton metering stacks accept the CHH3200H4X circuit breaker?
This breaker is specifically designed for installation in Eaton 35MM, 37MM, and 37SS commercial modular metering stacks, providing reliable power distribution for multi-tenant facilities.
What is the recommended replacement for the legacy CHH3200H4X?
For system upgrades or replacements, this model transitions to the Eaton CVS3200X, which provides the same 200A capacity and 42kAIC fault protection.
What wire sizes are supported by the load lugs on this breaker?
The factory-installed load-side lugs accommodate copper or aluminum conductors ranging from #2 AWG up to 300 kcmil, allowing for flexible wiring in commercial tenant applications.
What type of protection does the CHH3200H4X trip unit provide?
It is equipped with a fixed thermal-magnetic trip unit that delivers long-time and instantaneous (LI) protection, safeguarding commercial tenant circuits against both sustained overloads and sudden short circuits.
How is the CHH3200H4X installed into a commercial meter stack?
It uses a secure bolt-on connection to mount directly to the internal cross buses of compatible Eaton modular metering centers, ensuring a stable connection for tenant main applications.
