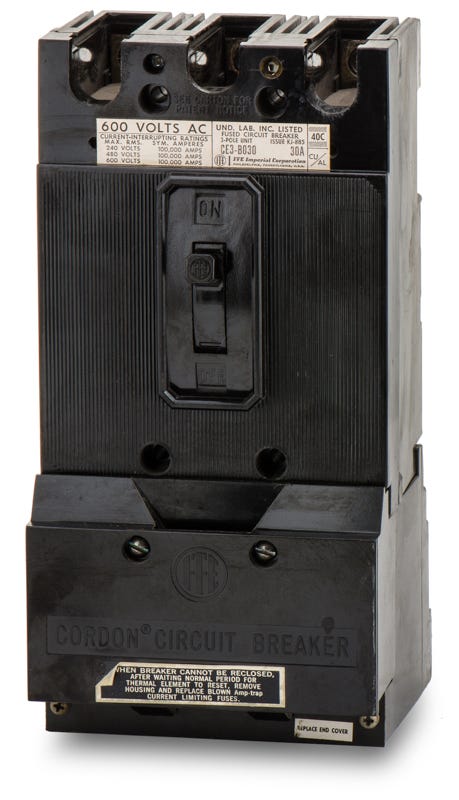

Siemens / ITE CE3B030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Siemens / ITE
CE3B030
Molded Case Circuit Breaker
Brand
Siemens / ITE
SKU
CE3B030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens / ITE CE3B030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the Siemens CE3B030 is a 3-pole, 30A current-limiting molded case circuit breaker. As part of the legacy Cordon family, it provides robust thermal-magnetic protection. This bolt-on MCCB installs into Siemens P2 and P3 panelboards. It serves as an exact fit for aging infrastructure, eliminating the need for retrofits. It is replaced by the CED63B030. Rated 100kAIC at 480V, it features integrally fused limiters to restrict let-through energy.Specifications
| Brand | Siemens / ITE |
|---|---|
| Part Number | CE3B030-R |
| Series | CE |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 25kA @ 600VAC |
| Frame Type | CE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included, Current Limiters |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, Integrally Fused, High Interrupting Capacity |
| Special Features | Current Limiting (Integrally Fused) |
Product FAQs
5 answersWhich panelboards are compatible with the CE3B030 breaker?
This bolt-on breaker is designed for use in Siemens P2 and P3 panelboards, as well as compatible Siemens switchboards.
Are ITE and Siemens CE3B030 breakers the same?
Yes. Siemens acquired ITE, and the CE3B030 catalog number remains identical across both brands for this C-frame molded case circuit breaker.
What wire sizes do the standard lugs on the CE3B030 accept?
The factory lugs accommodate 14 to 10 AWG copper wire or 12 to 10 AWG aluminum wire.
Does the CE3B030 provide current limiting protection?
Yes, this is a current limiting molded case circuit breaker. It is engineered to restrict let-through current during a short circuit fault, which helps protect downstream equipment.
Are the trip settings adjustable on this breaker?
No, the CE3B030 features a fixed thermal and fixed magnetic trip unit for standard long-time and instantaneous protection.
