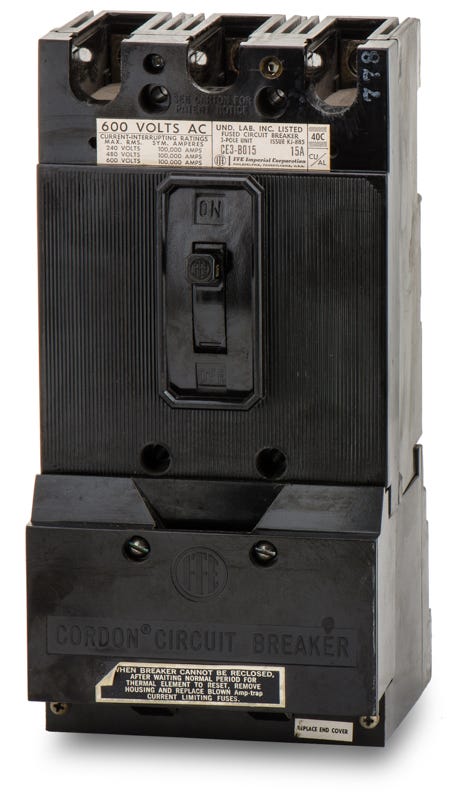

Siemens / ITE CE3B015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Siemens / ITE
CE3B015
Molded Case Circuit Breaker
Brand
Siemens / ITE
SKU
CE3B015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens / ITE CE3B015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
30A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the Siemens CE3B015 is a 3-pole, 15A legacy molded case circuit breaker. It provides reliable thermal-magnetic protection for critical downstream equipment. This bolt-on breaker installs into Siemens and ITE P2 or P3 panelboards. As a discontinued unit, it serves as an exact fit replacement, superseded by the CED63B015. Rated 100kAIC at 480VAC, this current-limiting device uses integrally fused limiters to safely interrupt massive faults.Specifications
| Brand | Siemens / ITE |
|---|---|
| Part Number | CE3B015-R |
| Series | CE |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 25kA @ 600VAC |
| Frame Type | CE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included, Current Limiters |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, Integrally Fused, High Interrupting Capacity |
| Special Features | Current Limiting (Integrally Fused) |
Product FAQs
5 answersWhat panelboards are compatible with the CE3B015 breaker?
This bolt-on breaker is designed for installation in Siemens P2 and P3 panelboards, as well as compatible Siemens switchboards.
What wire sizes are accepted by the terminals on this breaker?
The included lugs accept 14 to 10 AWG copper wire or 12 to 10 AWG aluminum wire.
Is the CE3B015 a current limiting circuit breaker?
Yes, the CE frame is a current limiting molded case circuit breaker designed to restrict let-through fault current, providing high interrupting capacities up to 100kA at 480VAC.
Are the trip settings adjustable on the CE3B015?
No, this breaker features a thermal magnetic trip unit with fixed long-time and fixed instantaneous protection functions.
How does this breaker mount into the enclosure?
It utilizes a bolt-on connection, meaning it must be bolted directly to the busbars of the panelboard or switchboard.
