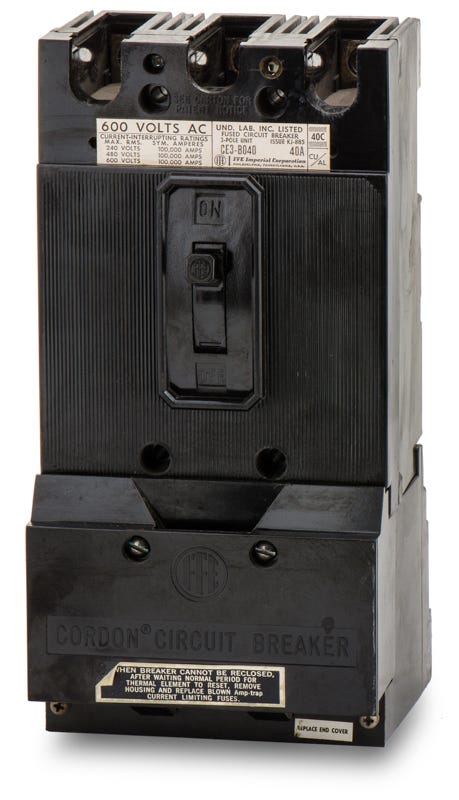

Siemens / ITE CE3B040 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
Siemens / ITE
CE3B040
Molded Case Circuit Breaker
Brand
Siemens / ITE
SKU
CE3B040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens / ITE CE3B040 - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Providing high-capacity overcurrent protection, the Siemens CE3B040 is a 3-pole, 40A current-limiting MCCB. It belongs to the legacy Cordon family, utilizing thermal-magnetic trip units alongside Amp-Trap limiters. This bolt-on breaker fits seamlessly into Siemens P2 and P3 panelboards. It is an ideal exact-match replacement for older facilities, avoiding the need for panel modifications. It is replaced by the CED63B040. The 100kAIC rating at 480VAC ensures excellent downstream protection.Specifications
| Brand | Siemens / ITE |
|---|---|
| Part Number | CE3B040-R |
| Series | CE |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 25kA @ 600VAC |
| Frame Type | CE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3 Panelboards, Switchboards |
| Wire Gauge | 8-4 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included, Current Limiters |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, Integrally Fused, High Interrupting Capacity |
| Special Features | Current Limiting (Integrally Fused) |
Product FAQs
5 answersWhat panelboards accept the CE3B040 circuit breaker?
This bolt-on breaker is designed for installation in Siemens P2 and P3 panelboards, as well as compatible Siemens switchboards.
What wire sizes are supported by the terminals on this breaker?
The factory lugs accommodate 8 AWG to 4 AWG conductors and are rated for both copper and aluminum wiring.
Does the CE3B040 provide current limiting protection?
Yes, this CE frame breaker is current limiting. It offers high interrupting capacities, including 100kAIC at 480VAC and 200kAIC at 240VAC, to protect downstream equipment from severe fault currents.
Will I receive an ITE or Siemens branded breaker?
Because this is a legacy C frame MCCB, it may feature either ITE or Siemens branding depending on when it was manufactured. Both versions share the exact same form factor and electrical ratings.
Are the trip settings adjustable on the CE3B040?
No, this breaker utilizes a thermal magnetic trip unit with fixed thermal and fixed magnetic settings for its long-time and instantaneous protection functions.
