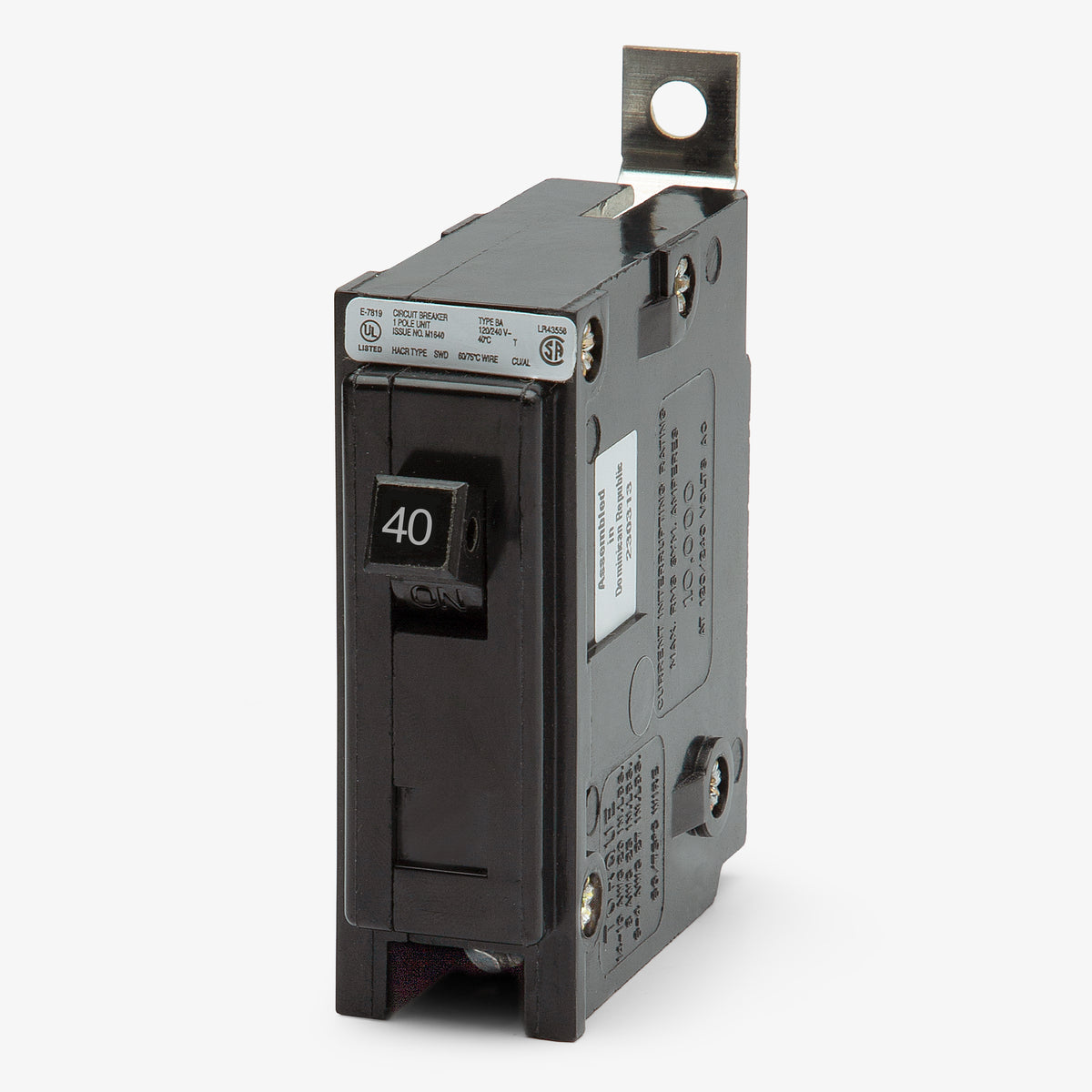

Eaton / Cutler-Hammer BAB1040 Miniature Circuit Breaker
- 40A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB1040
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB1040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB1040 - 40A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BAB1040 - 40A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB1040 |
| Series | BAB |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | BAB |
|---|---|

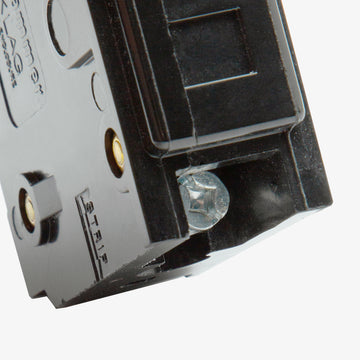

| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Sold out
Quantity
Eaton / Cutler-Hammer BAB1040 - 40A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB1040-R |
| Series | BAB |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
50A 1 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerBABRP1030
30A 1 Pole Miniature Circuit Breaker
Description
Delivering 40 amps of reliable overcurrent defense, this single-pole Quicklag breaker is tailored for commercial environments. It utilizes proven thermal-magnetic technology. The bolt-on mounting guarantees a stable connection within Eaton Pow-R-Line, Cutler-Hammer, and Westinghouse panelboards. It also serves as an exact replacement for obsolete QB and QNBL units. Featuring a 10 kAIC rating at 120/240VAC, it meets standard industrial requirements and is HACR rated for HVAC installations.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB1040 |
| Series | BAB |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhich panelboards are compatible with the BAB1040 circuit breaker?
This bolt-on breaker is designed for use in Eaton Pow-R-Line panelboards, as well as legacy Westinghouse and Cutler-Hammer bolt-on load centers and panels.
Can the Eaton BAB1040 replace older Westinghouse BAB breakers?
Yes, Eaton acquired the Westinghouse distribution equipment line. The Eaton BAB1040 is the direct, manufacturer-approved replacement for legacy Westinghouse and Cutler-Hammer BAB1040 breakers.
What is the difference between Eaton BAB and QBHW circuit breakers?
The primary difference is the short-circuit interrupting rating. BAB breakers are rated at 10kAIC at 120/240VAC, while QBHW breakers offer a higher 22kAIC rating. Both share the same physical Quicklag-B frame and bolt-on mounting.
Is the BAB1040 rated for DC voltage applications?
Yes, this breaker carries a DC interrupting rating of 5kA at 24VDC and 48VDC, and 3.8kA at 62.5VDC, making it suitable for specific low-voltage DC control circuits.
Is the BAB1040 HACR rated for HVAC equipment?
Yes, Eaton BAB miniature circuit breakers are HACR rated, making them suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific certification.
Does the BAB1040 require a separate mounting kit?

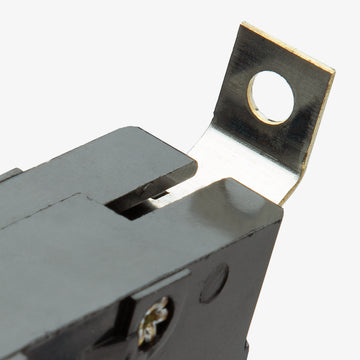

No, this Quicklag breaker features a built-in bolt-on connection that mounts directly to the busbar in compatible Eaton, Cutler-Hammer, and Westinghouse panelboards.
