Eaton / Cutler-Hammer BAB1050 Miniature Circuit Breaker
- 50A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB1050
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB1050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB1050 - 50A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BAB1050 - 50A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB1050 |
| Series | BAB |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards, Bryant Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Sold out
Quantity
Eaton / Cutler-Hammer BAB1050 - 50A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB1050-R |
| Series | BAB |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards, Bryant Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
40A 1 Pole Miniature Circuit Breaker
35A 1 Pole Miniature Circuit Breaker
70A 1 Pole Miniature Circuit Breaker
Description

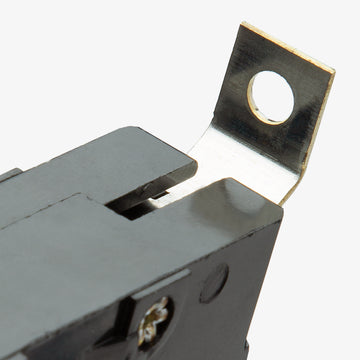

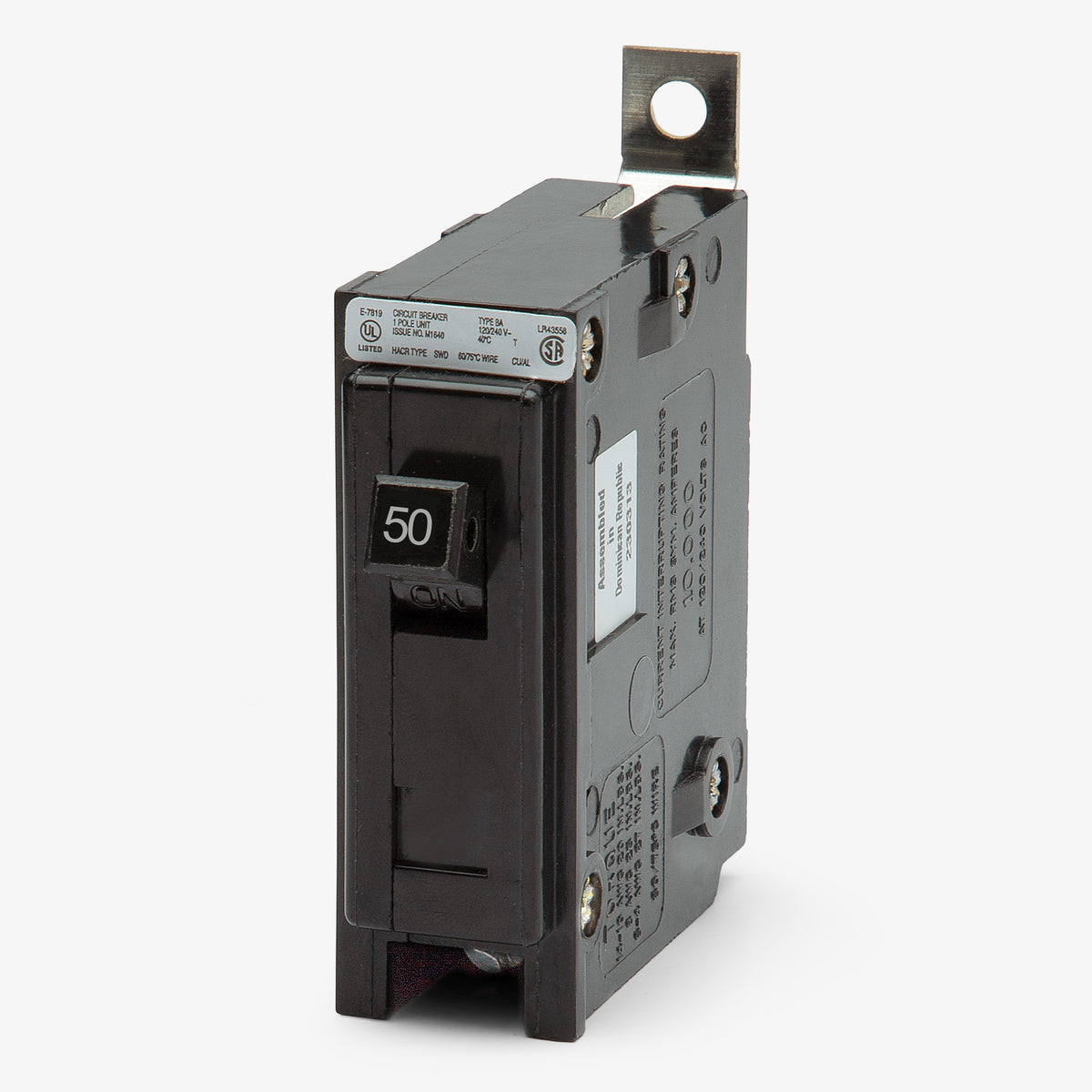

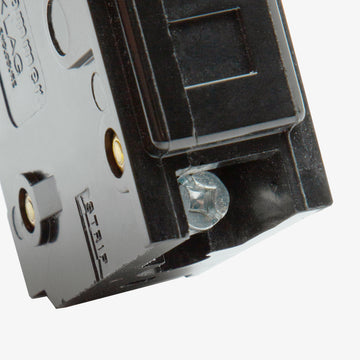

Part of the Quicklag family, the Eaton BAB1050 is a 50A, single-pole miniature circuit breaker designed for commercial and industrial environments. It provides standard thermal-magnetic trip functionality to protect branch circuits. This bolt-on unit installs into Eaton Pow-R-Line panelboards and serves as a replacement for legacy Westinghouse, Cutler-Hammer, and Bryant panels. It replaces older QNBL and QB models. Rated for 10 kAIC at 120/240V, it features an HACR rating for HVAC equipment.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB1050 |
| Series | BAB |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards, Bryant Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
4 answersCan I install the BAB1050 in a standard Eaton residential load center?
No. The BAB1050 is a bolt-on miniature circuit breaker designed for commercial and industrial panelboards. It is not compatible with plug-on residential load centers that require BR or CH series breakers.
Which Eaton panelboards accept the BAB1050 breaker?
The BAB1050 is designed for use in Eaton Pow-R-Line commercial panelboards, specifically models such as the PRL1a, PRL2a, PRL3a, and PRL4 that are configured for bolt-on Quicklag breakers.
Does the Eaton BAB1050 replace older Westinghouse or Bryant breakers?
Yes. Eaton acquired the distribution equipment divisions of Westinghouse, Cutler-Hammer, and Bryant. The BAB1050 is the direct, manufacturer-approved replacement for legacy Westinghouse, Cutler-Hammer, and Bryant BAB series breakers of the same rating.
Is the BAB1050 suitable for use with HVAC equipment?
Yes. The BAB1050 is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment that requires this specific protection.
