Eaton / Cutler-Hammer BAB1070 Miniature Circuit Breaker
- 70A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB1070
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB1070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

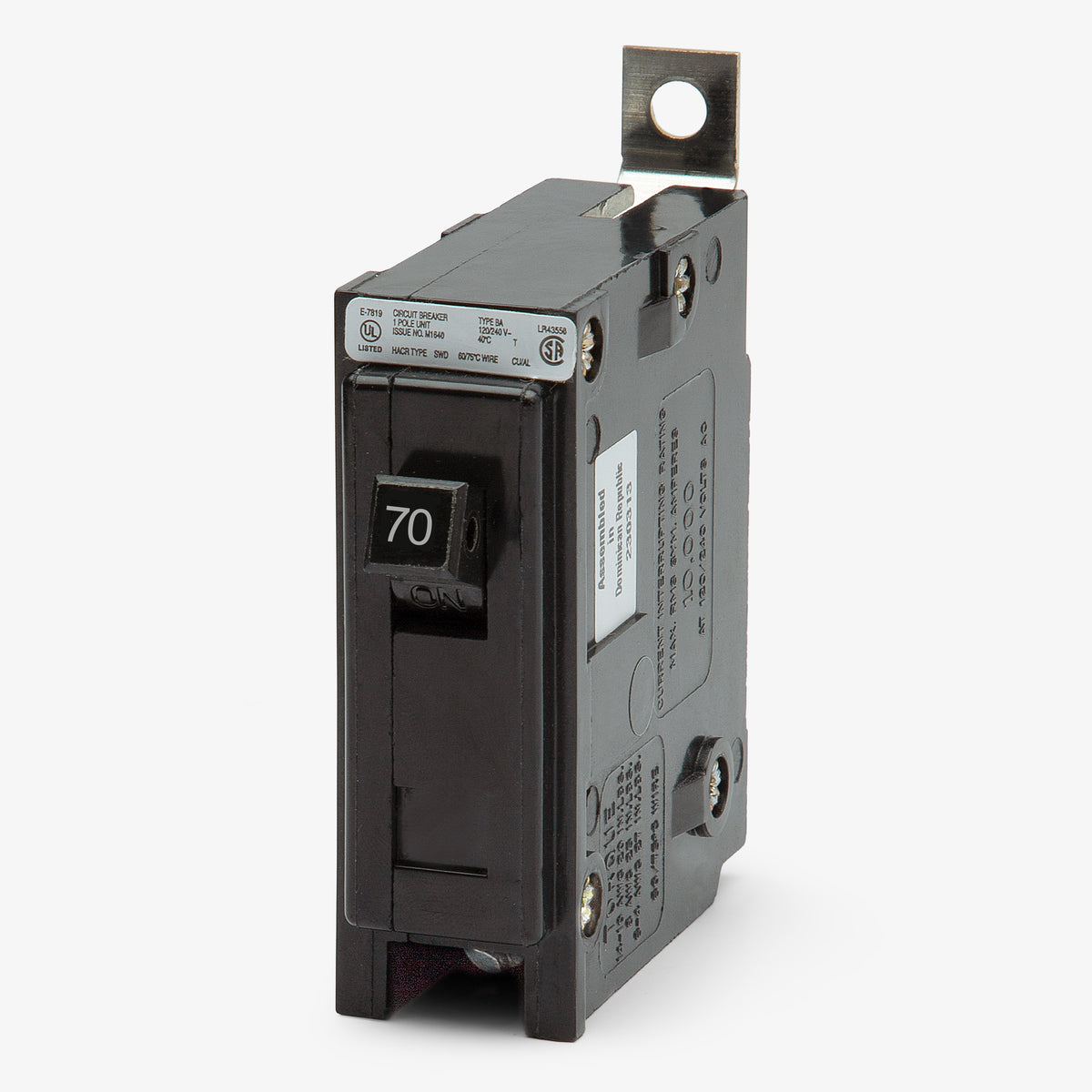

Eaton / Cutler-Hammer BAB1070 - 70A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
60A 1 Pole Miniature Circuit Breaker
50A 1 Pole Miniature Circuit Breaker
40A 1 Pole Miniature Circuit Breaker
Description
Manufactured for demanding commercial applications, the Eaton BAB1070 is a 70A, single-pole miniature circuit breaker. It provides dependable protection using proven thermal-magnetic trip technology. This breaker utilizes a bolt-on mechanism for a stable connection in Eaton Pow-R-Line panelboards. It fits legacy Westinghouse and Cutler-Hammer enclosures, substituting for QNBL models. Equipped with an extended tang line terminal, it carries a 10 kAIC rating at 120/240V and is HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB1070 |
| Series | BAB |
| Amperage | 70A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards |
| Wire Gauge | 8-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|

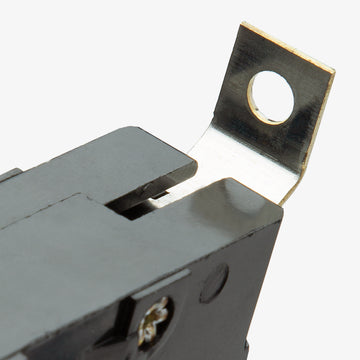

| Accessories | Extended Tang Line Terminal |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
7 answersWhat panelboards are compatible with the Eaton BAB1070 circuit breaker?
The BAB1070 is designed for use in Eaton Pow-R-Line, Westinghouse, and legacy Cutler-Hammer bolt-on panelboards that accept Quicklag B-frame breakers. It is not compatible with standard residential plug-on load centers like the BR or CH series.
Can I use the BAB1070 to replace older Westinghouse or Cutler-Hammer breakers?
Yes, the Eaton BAB1070 is a direct, exact replacement for legacy Westinghouse and Cutler-Hammer Quicklag BA and BAB 70A 1-pole bolt-on breakers.
What is the difference between the Eaton BAB1070 and the QBHW1070?
Both are 70A, 1-pole bolt-on breakers with the same physical footprint. The difference is the interrupting capacity. The BAB1070 is rated at 10kAIC, while the QBHW1070 is rated for 22kAIC.
How does the BAB1070 mount into the panelboard?
This breaker features a bolt-on connection. It physically bolts directly to the panelboard busbar, providing a secure, vibration-resistant connection commonly required in commercial and industrial applications.
What wire sizes are accepted by the BAB1070 box lugs?
The terminal lugs on the BAB1070 accept 8 AWG to 1/0 AWG copper or aluminum conductors. Ensure you follow local electrical codes for proper wire sizing based on the 70A rating and application.
Can the BAB1070 be used in DC voltage applications?
Yes, in addition to its standard 120/240VAC rating, the BAB1070 is rated for 5kAIC at 24VDC and 48VDC, making it suitable for specific low-voltage direct current control circuits.
What type of trip mechanism does the BAB1070 use?
It utilizes a fixed thermal magnetic trip mechanism. The thermal element provides long-time protection against persistent overloads, while the magnetic element offers instantaneous protection against short circuits.
