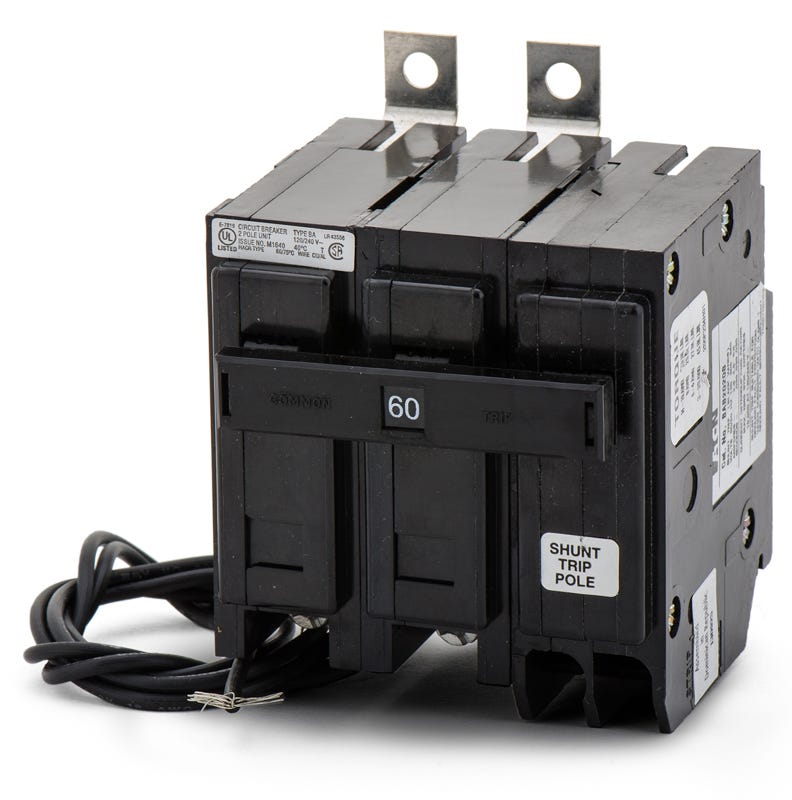

Eaton / Cutler-Hammer BAB2060S Miniature Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB2060S
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB2060S
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

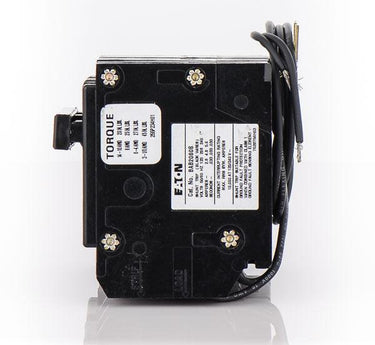

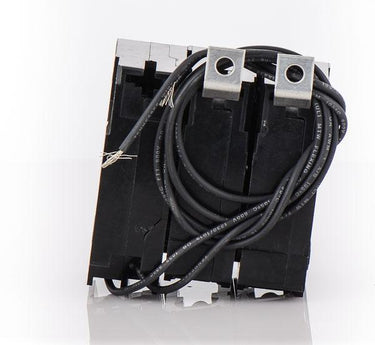

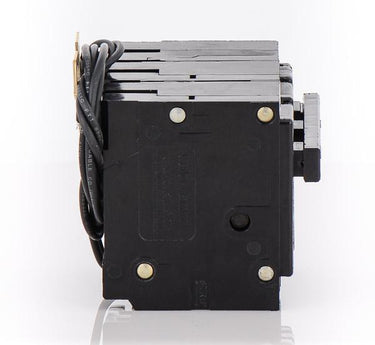

Eaton / Cutler-Hammer BAB2060S - 60A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
80A 2 Pole Miniature Circuit Breaker
90A 2 Pole Miniature Circuit Breaker
25A 2 Pole Miniature Circuit Breaker
Description
Featuring a built-in shunt trip mechanism, the BAB2060S allows for remote circuit disconnection in commercial safety applications. This 60A, two-pole breaker utilizes a robust bolt-on design to ensure a reliable connection under load. It mounts seamlessly into Eaton Pow-R-Line, Challenger, Bryant, and Westinghouse panelboards. Delivering a 10kAIC interrupt rating at 120/240VAC, this unit serves as an exact replacement for older QNBL2060S and QB2060S models.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB2060S |
| Series | BAB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC, 80VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 5kA @ 62.5VDC, 5kA @ 80VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards, Bryant Panelboards, Challenger Panelboards |
| Wire Gauge | 8-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
9 answersWhat does the "S" suffix indicate in the BAB2060S catalog number?
The "S" suffix denotes that this breaker includes a factory-installed 120VAC shunt trip mechanism. This allows for remote tripping of the breaker in commercial safety applications.
What control voltage is required to activate the shunt trip on the BAB2060S?
The shunt trip mechanism requires a 120VAC control voltage to activate and draws approximately 2.6A at 120VAC.
Which panelboards are compatible with the BAB2060S?
This bolt-on breaker is compatible with Eaton Pow-R-Line panelboards, as well as legacy Westinghouse, Cutler-Hammer, Bryant, and Challenger panelboards designed for BAB-frame breakers.
What older circuit breaker models can the BAB2060S replace?
The BAB2060S serves as an exact direct replacement for older QNBL2060S and QB2060S models, as well as legacy Westinghouse BAB breakers with the same specifications.
What wire sizes are accepted by the terminals on the BAB2060S?
The box lugs on this breaker accept 8 AWG to 1/0 AWG conductors and are rated for both aluminum (Al) and copper (Cu) wire.
Can the trip settings on the BAB2060S be adjusted?
No, this breaker features a fixed thermal-magnetic trip unit with long-time and instantaneous (LI) trip functions. The trip settings are non-interchangeable and cannot be adjusted in the field.
Is the BAB2060S suitable for HVAC applications?
Yes, Eaton BAB breakers in this amperage range are HACR rated, making them approved for use with heating, air conditioning, and refrigeration equipment.
How is the BAB2060S secured to the panelboard?
The BAB2060S utilizes a bolt-on connection. It must be physically bolted to the panelboard busbar, which provides a secure, reliable connection under load compared to plug-on designs. Ensure the panel is completely de-energized before installation.
Can the BAB2060S be used in DC circuits?
Yes, while primarily used in 120/240VAC systems, the BAB2060S is also rated for DC applications up to 80VDC. It provides a 5kAIC interrupting capacity for 24VDC, 48VDC, 62.5VDC, and 80VDC systems.
