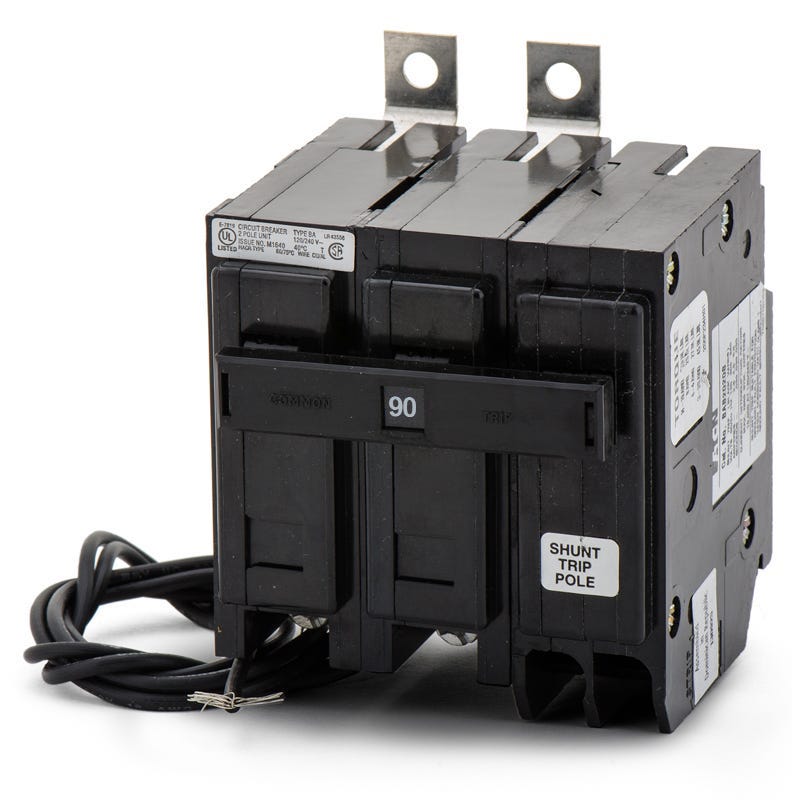

Eaton / Cutler-Hammer BAB2090S Miniature Circuit Breaker
- 90A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB2090S
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB2090S
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB2090S - 90A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
80A 2 Pole Miniature Circuit Breaker
70A 2 Pole Miniature Circuit Breaker
60A 2 Pole Miniature Circuit Breaker
Description
Built for commercial and industrial distribution, the BAB2090S is a 90A, two-pole miniature circuit breaker from Eaton's Quicklag series. It delivers reliable thermal-magnetic overcurrent protection for demanding environments. Featuring a bolt-on design, it installs into Eaton Pow-R-Line panelboards and replaces legacy QNBL or BA breakers. Rated 10kAIC at 120/240VAC, this HACR-rated unit includes a factory-installed 120-240VAC shunt trip for remote tripping capabilities.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB2090S |
| Series | BAB |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC, 80VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 5kA @ 62.5VDC, 5kA @ 80VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 8-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Shunt Trip (120-240VAC) |
| Standards | CSA C22.2, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | -25C to 70C |
Product FAQs
6 answersWhat panelboards are compatible with the BAB2090S circuit breaker?
The BAB2090S is a bolt-on miniature circuit breaker designed for use in Eaton Pow-R-Line panelboards. It is also backward compatible and can replace legacy Westinghouse or Cutler-Hammer QNBL or BA breakers in existing panels.
What does the S suffix in the BAB2090S catalog number indicate?
The S suffix signifies that this breaker includes a factory-installed 120-240VAC shunt trip accessory. This allows the breaker to be tripped remotely, which is often required for emergency shut-off systems or remote control applications.
Is the Eaton BAB2090S suitable for HVAC equipment?
Yes. Like all Eaton Quicklag BAB breakers rated from 15A to 100A, the BAB2090S is HACR rated. This certification ensures it is approved for use with heating, air conditioning, and refrigeration equipment.
How does the thermal-magnetic trip unit in the BAB2090S operate?
The non-interchangeable thermal-magnetic trip unit provides dual protection. The thermal component offers a delayed trip for sustained overloads, while the magnetic component provides an instantaneous trip to quickly clear severe short circuits.
Can the trip settings on the BAB2090S be adjusted?
No, the BAB2090S features fixed thermal and fixed magnetic trip settings. The trip unit is non-interchangeable and cannot be modified in the field.
How is the BAB2090S secured inside the panelboard?
This Quicklag breaker features a bolt-on connection. It fastens directly to the panelboard busbar using screws, providing a secure, vibration-resistant connection that is typically required in commercial and industrial environments.
