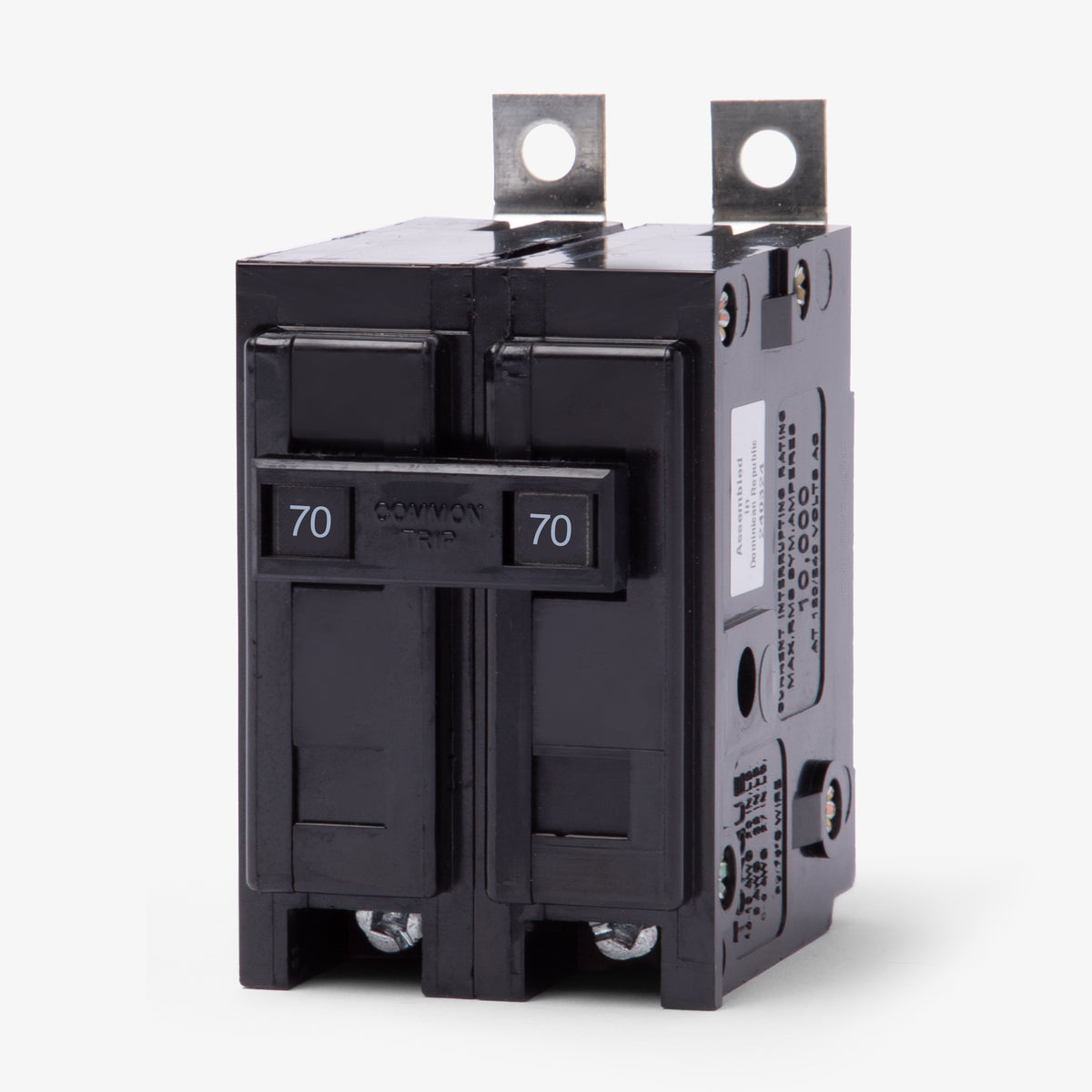

Eaton / Cutler-Hammer BAB2070 Miniature Circuit Breaker
- 70A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB2070
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB2070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB2070 - 70A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BAB2070 - 70A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB2070 |
| Series | BAB |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC, 80VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 5kA @ 62.5VDC, 5kA @ 80VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards |
| Wire Gauge | 8-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Extended Tang Line Terminal |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Sold out
Quantity
Eaton / Cutler-Hammer BAB2070 - 70A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB2070-R |
| Series | BAB |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC, 80VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 5kA @ 62.5VDC, 5kA @ 80VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards |
| Wire Gauge | 8-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Extended Tang Line Terminal |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
80A 2 Pole Miniature Circuit Breaker
60A 2 Pole Miniature Circuit Breaker
90A 2 Pole Miniature Circuit Breaker
Description
Designed for heavy-duty distribution, this 70-amp Quicklag breaker delivers consistent overcurrent safety for commercial facilities. The unit installs into standard Eaton Pow-R-Line enclosures, as well as older Cutler-Hammer and Westinghouse panelboards. It serves as a seamless substitute for discontinued QB and QNBL series hardware. Featuring a 10kA interrupting capacity, this HACR-approved device accommodates aluminum or copper wiring from 8 to 1/0 AWG via sturdy box lugs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB2070 |
| Series | BAB |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC, 80VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 5kA @ 62.5VDC, 5kA @ 80VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards |
| Wire Gauge | 8-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Extended Tang Line Terminal |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
4 answersWhich panelboards are compatible with the BAB2070?
The BAB2070 mounts in Eaton Pow-R-Line panelboards, specifically PRL1a, PRL2a, PRL1X, and PRL2X models. It is also compatible with legacy Cutler-Hammer and Westinghouse panelboards that accept BAB frame circuit breakers.
Will the Eaton BAB2070 replace an older Westinghouse BAB2070?
Yes. Eaton acquired the Cutler-Hammer and Westinghouse molded case circuit breaker lines. The Eaton BAB2070 is the direct, manufacturer-approved replacement for older Westinghouse and Cutler-Hammer breakers with the exact same catalog number.
Is the BAB2070 HACR rated for HVAC equipment?
Yes. Eaton BAB miniature circuit breakers from 15 to 100 amps are HACR rated, making this 70-amp breaker suitable for group motor applications like heating, air conditioning, and refrigeration equipment.

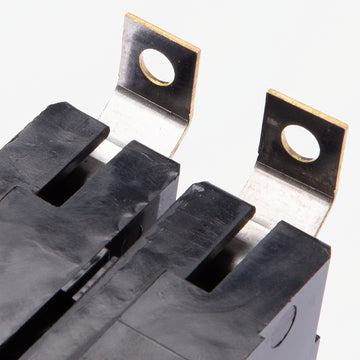

How does the bolt-on connection work for this breaker?
The breaker features an extended mounting tang on the line side that bolts directly to the panelboard bus. This provides a highly secure connection that resists vibrating loose in commercial and industrial environments.
