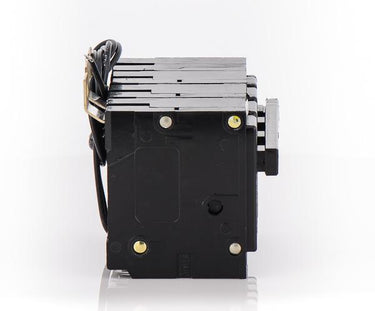

Eaton / Cutler-Hammer BAB3020HS Miniature Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB3020HS
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB3020HS
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB3020HS - 20A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BAB3020HS - 20A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB3020HS |
| Series | BAB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Shunt Trip |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Sold out
Quantity
Eaton / Cutler-Hammer BAB3020HS - 20A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB3020HS-R |
| Series | BAB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Shunt Trip |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
Eaton / Cutler-HammerBAB3025HS
25A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerBAB3015HS
15A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerBAB3030HS
30A 3 Pole Miniature Circuit Breaker
Description
Part of the Quicklag family, the Eaton BAB3020HS is a 20-amp, three-pole miniature circuit breaker built for commercial and industrial power distribution. It provides robust thermal-magnetic protection for demanding branch circuits. This unit mounts into Eaton Pow-R-Line, Westinghouse, and Cutler-Hammer panelboards. It also serves as a drop-in replacement for legacy QNBL3020 breakers requiring remote tripping capabilities.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB3020HS |
| Series | BAB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Shunt Trip |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhich panelboards accept the BAB3020HS circuit breaker?
This bolt-on breaker is designed for use in Eaton Pow-R-Line panelboards (including PRL1a, PRL2a, PRL1X, and PRL2X), as well as legacy Westinghouse and Cutler-Hammer bolt-on panelboards.
Does the shunt trip on the BAB3020HS require extra space in the panel?

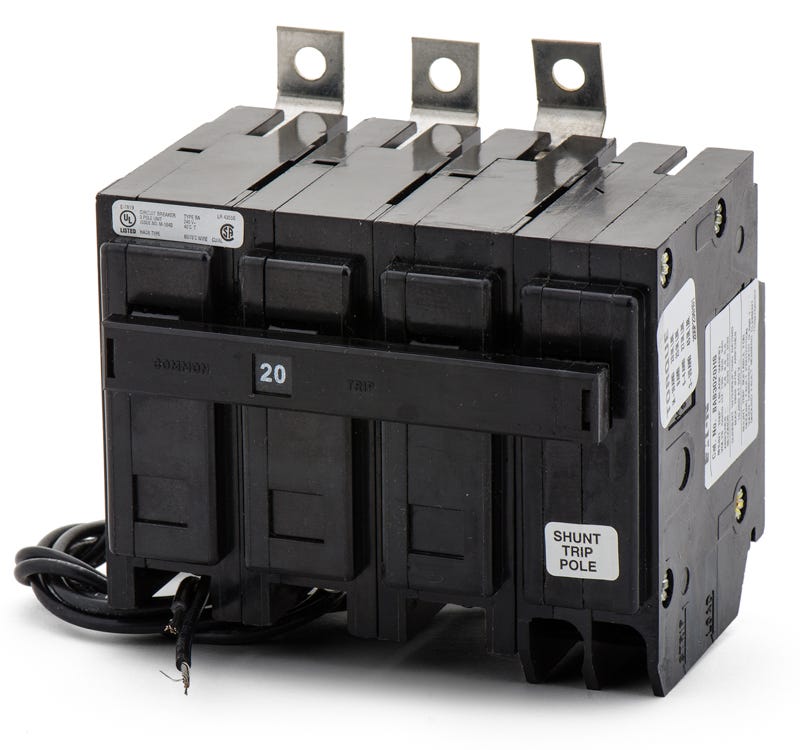

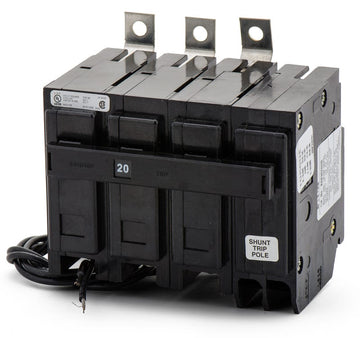

Yes. The factory-installed shunt trip adds one extra pole of width to the breaker. Because this is a 3-pole breaker, it will require 4 pole spaces (4 inches) of mounting space in your panelboard.
How do I wire the shunt trip on this breaker?

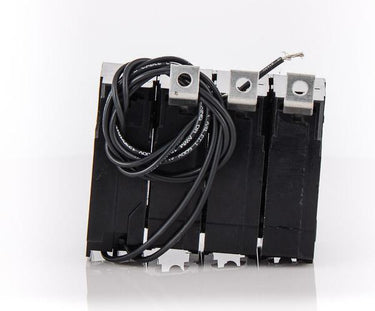

The shunt trip module features two black, non-polarity-sensitive leads. Connect one lead to your control voltage source and the other to a normally open (NO) contact, such as a momentary push button or fire alarm relay, to complete the circuit.
What are the recommended lug torque specifications for the BAB3020HS?

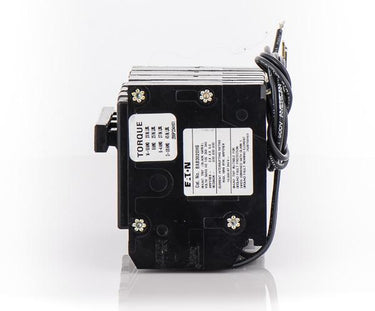

Torque requirements depend on the wire size used. For 14-10 AWG wire, torque the box lugs to 20 in-lbs. For 8 AWG, torque to 40 in-lbs. For 6-4 AWG, torque to 45 in-lbs.
Can I use the Eaton BAB3020HS to replace an older Westinghouse BAB breaker?
Yes. Eaton acquired the Westinghouse distribution equipment line, making this Eaton BAB breaker a direct, UL-listed drop-in replacement for legacy Westinghouse BAB breakers with the same specifications.
What does the S suffix in the BAB3020HS catalog number indicate?
The S suffix indicates that the breaker includes a factory-installed shunt trip, which allows the breaker to be tripped remotely via an external control voltage signal.
