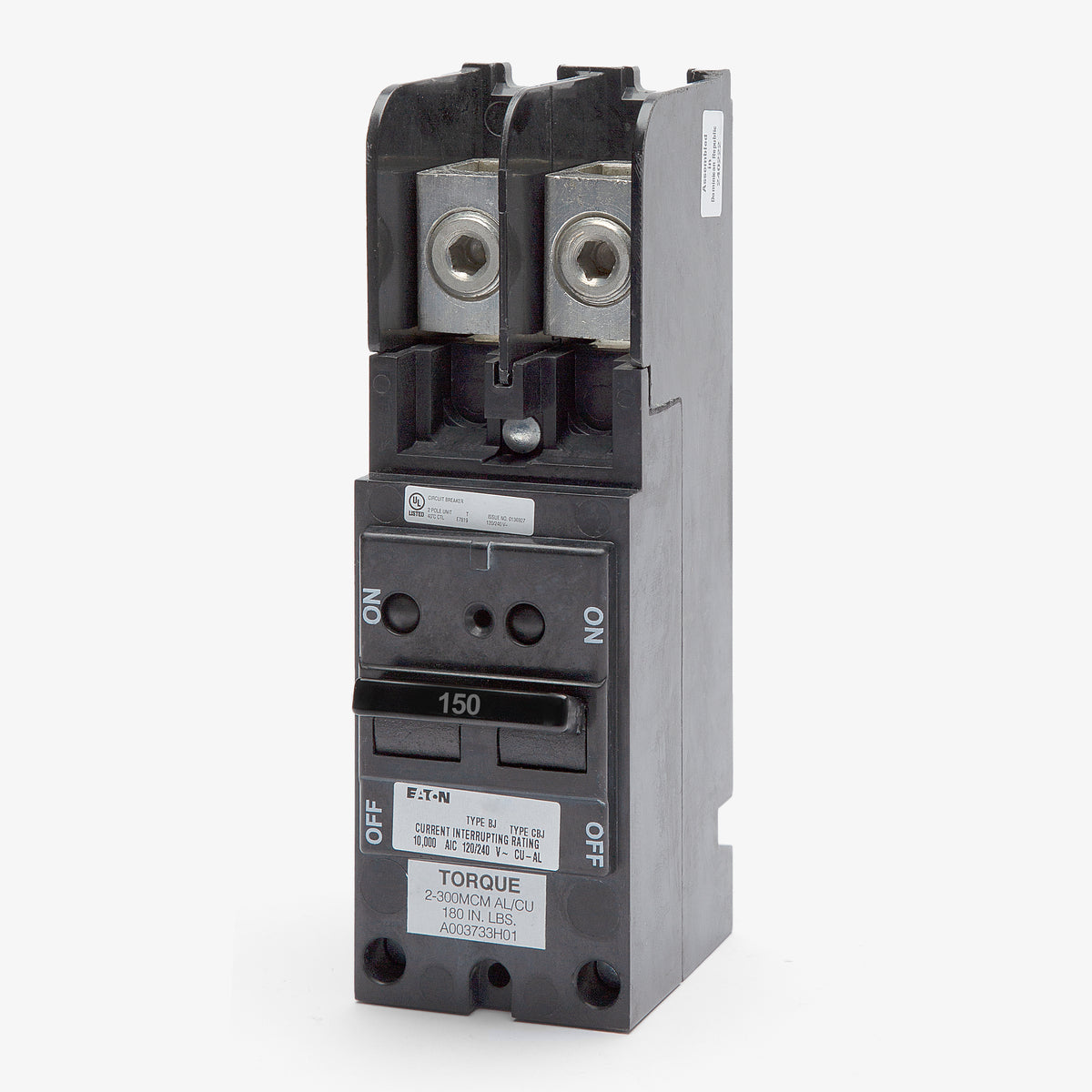

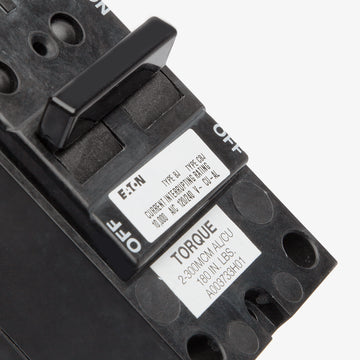

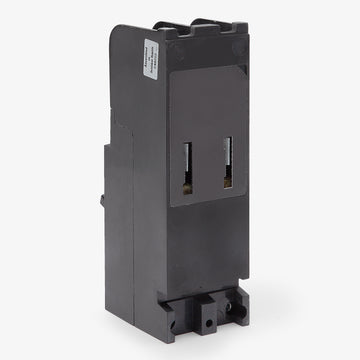

Eaton / Cutler-Hammer BJ2150 Molded Case Circuit Breaker
- 150A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
BJ2150
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BJ2150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BJ2150 - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BJ2150 - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BJ2150 |
| Series | BJ |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BJ |
|---|---|

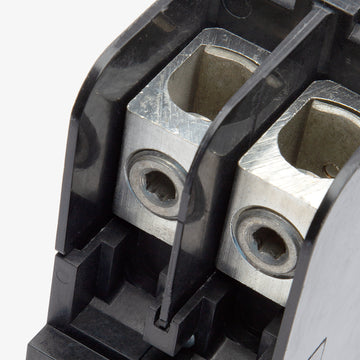

| Terminal Type | Lugs |
| For Use With | Eaton Type BR Load Centers, Legacy Westinghouse/Bryant Load Centers |
| Wire Gauge | 2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Main Breaker |
Sold out
Quantity
Eaton / Cutler-Hammer BJ2150 - 150A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BJ2150-R |
| Series | BJ |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Type BR Load Centers, Legacy Westinghouse/Bryant Load Centers |
| Wire Gauge | 2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Main Breaker |
Similar Items
200A 2 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Part of the BJ series, the Eaton BJ2150 is a 150A main circuit breaker designed for residential and commercial applications. It provides reliable thermal-magnetic trip functions to safeguard electrical systems. This plug-on breaker installs into Eaton Type BR load centers and is compatible with legacy Westinghouse panels. It requires four one-inch pole spaces for proper mounting and accepts #2 AWG to 300 kcmil wire. Featuring a 10kAIC rating at 120/240V, it serves as a dependable sub-feed main.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BJ2150 |
| Series | BJ |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Type BR Load Centers, Legacy Westinghouse/Bryant Load Centers |
| Wire Gauge | 2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Main Breaker |
Product FAQs
6 answersWhat load centers are compatible with the BJ2150?
The BJ2150 is designed for use in Eaton Type BR load centers rated for at least 150 amps. It is also backward compatible with legacy Westinghouse, Bryant, and Challenger panels that accept Type BJ breakers.
How many panel spaces does the BJ2150 require?
This breaker requires four 1-inch pole spaces for installation. It mounts horizontally across the panel, taking up two spaces on the left side and two spaces on the right side of the bus bar.
Can the BJ2150 be used to replace an older Bryant or Westinghouse breaker?
Yes. Eaton acquired the Cutler-Hammer, Bryant, and Westinghouse breaker lines. The current Eaton BJ2150 is a direct drop-in replacement for legacy Bryant and Westinghouse BJ2150 breakers.
Can this breaker be used as a back-fed main breaker?
Yes, the BJ2150 is frequently used as a plug-on main breaker or sub-feed main in compatible load centers. When back-feeding as a main, a separate hold-down kit is required by the National Electrical Code to secure the breaker to the panel.
Is the BJ2150 HACR rated for HVAC equipment?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires a 150A overcurrent protection device.
Does the BJ2150 feature a common trip mechanism?
Yes, it features an internal common trip mechanism. This ensures that both poles open simultaneously under fault conditions, completely disconnecting 240V loads for safety.
