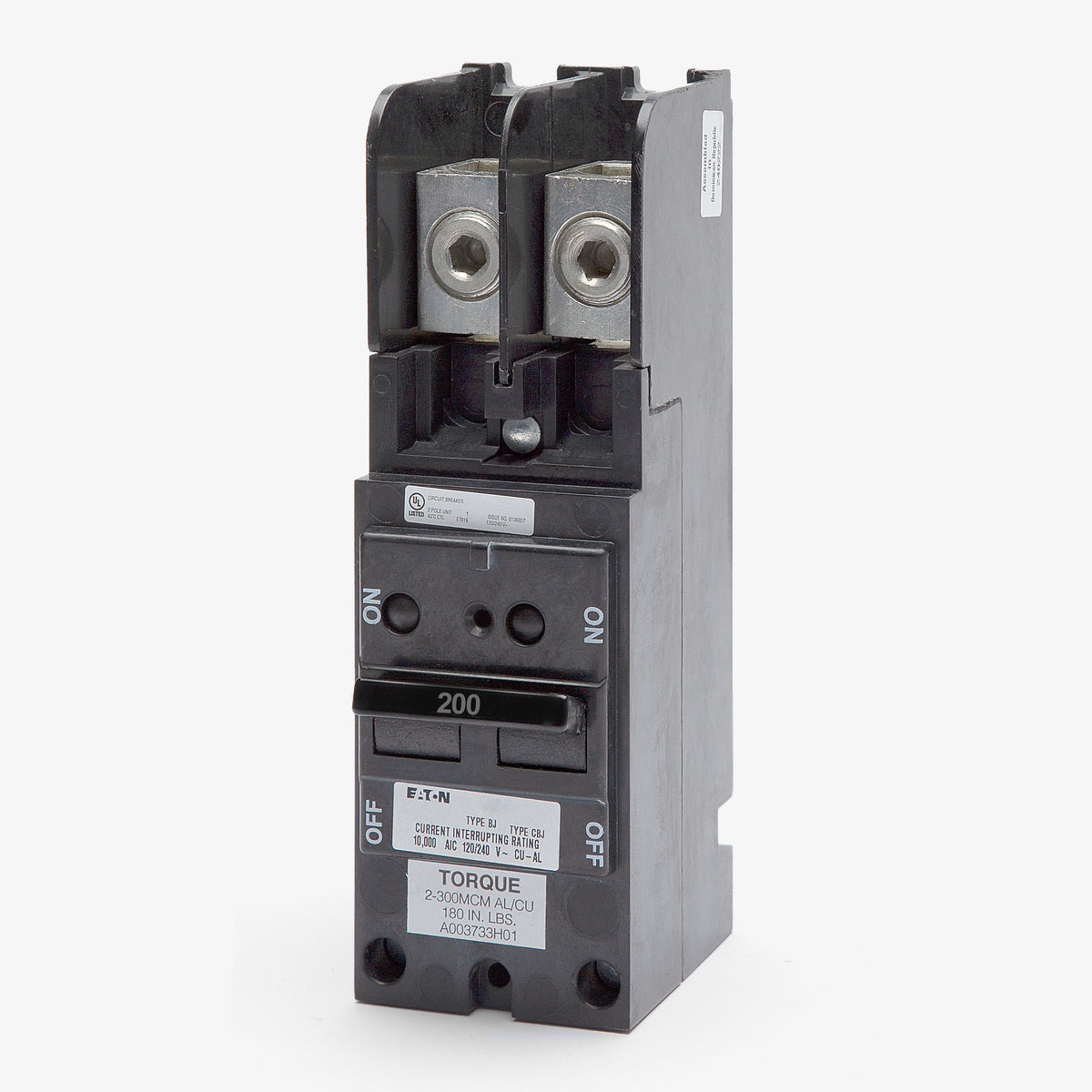

Eaton / Cutler-Hammer BJ2200 Molded Case Circuit Breaker
- 200A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
BJ2200
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BJ2200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BJ2200 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BJ2200 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BJ2200 |
| Series | BJ |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Type BR Load Centers, Legacy Westinghouse/Bryant Load Centers |
| Wire Gauge | 2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Main Breaker |
Sold out
Quantity
Eaton / Cutler-Hammer BJ2200 - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BJ2200-R |
| Series | BJ |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Type BR Load Centers, Legacy Westinghouse/Bryant Load Centers |
| Wire Gauge | 2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Main Breaker |
Similar Items
125A 2 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Built for dependable residential power distribution, this 200A main circuit breaker delivers essential thermal-magnetic protection. The Eaton two-pole device safeguards infrastructure against damaging overloads. Designed with a plug-on mounting style, it integrates smoothly into Eaton Type BR load centers and legacy Bryant enclosures. Rated for 10kAIC at 120/240VAC, the breaker features a common trip function and accommodates wire gauges from 2 AWG up to 300 kcmil.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BJ2200 |
| Series | BJ |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Type BR Load Centers, Legacy Westinghouse/Bryant Load Centers |
| Wire Gauge | 2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Main Breaker |
Product FAQs
5 answersHow many panel spaces does the Eaton BJ2200 require?
Although it is a 2-pole breaker, the BJ2200 requires four 1-inch pole spaces. It is a large-frame breaker that mounts across the panel bus, occupying two spaces on the left side and two spaces on the right side of the load center.
Which hold-down kit is needed if I use the BJ2200 as a back-fed main?
To secure the BJ2200 as a back-fed main in a main lug only (MLO) panel, use the Eaton BJHDS hold-down screw kit for legacy BR load centers. For modern BR Plug-On Neutral (PON) panels, use the BRPHDBJ2 hold-down kit.
Can this breaker replace an older Bryant or Westinghouse Type BJ breaker?
Yes. Eaton acquired Bryant and Westinghouse, and the Eaton BJ2200 is the exact, UL-listed replacement for legacy Bryant and Westinghouse Type BJ 200A circuit breakers.
Is there a minimum panel amperage requirement for the BJ2200?
Yes, Eaton specifications require the BJ2200 to be installed in a load center with a bus rating of at least 150 amps.
Does this breaker provide AFCI or GFCI protection?
No, the BJ2200 is a standard thermal-magnetic circuit breaker. It provides standard overload and short-circuit protection but does not include arc-fault (AFCI) or ground-fault (GFCI) circuitry.
