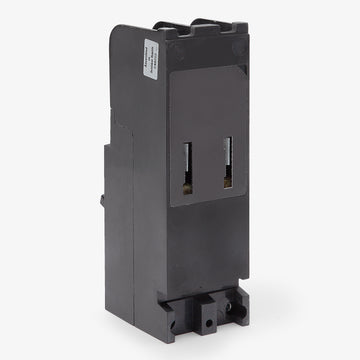

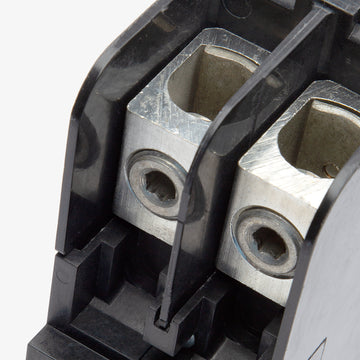

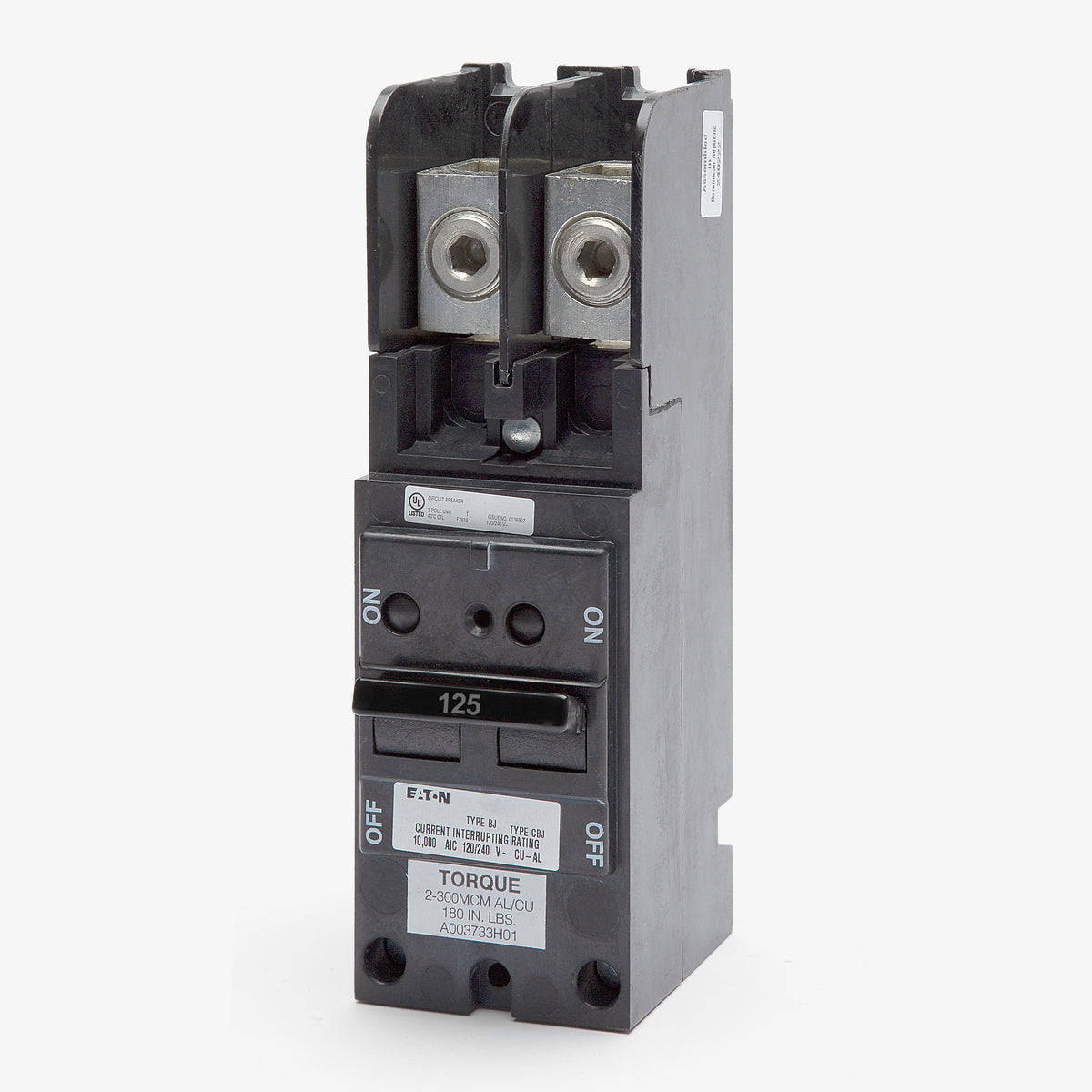

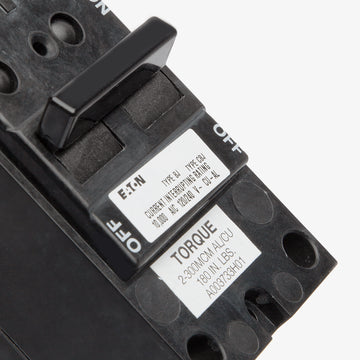

Eaton / Cutler-Hammer BJ2125 Molded Case Circuit Breaker
- 125A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
BJ2125
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BJ2125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BJ2125 - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer BJ2125 - 125A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BJ2125-R |
| Series | BJ |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Type BR Load Centers, Legacy Westinghouse/Bryant Load Centers |
| Wire Gauge | 2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Reverse Feed |
Quantity
Eaton / Cutler-Hammer BJ2125 - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BJ2125 |
| Series | BJ |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Type BR Load Centers, Legacy Westinghouse/Bryant Load Centers |
| Wire Gauge | 2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Reverse Feed |
Similar Items
200A 2 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Part of Eaton's comprehensive power distribution lineup, this 125-amp, 2-pole plug-on breaker delivers dependable thermal-magnetic protection. Rated for 10 kAIC at 120/240V, it is utilized as a main or sub-feed breaker in residential applications. The unit mounts into modern Eaton Type BR load centers as well as older Westinghouse and Bryant panels, requiring four total 1-inch spaces across the busbar. Equipped with standard lugs, it accommodates #2 AWG through 300 kcmil Cu/Al conductors.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BJ2125 |
| Series | BJ |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Type BR Load Centers, Legacy Westinghouse/Bryant Load Centers |
| Wire Gauge | 2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Reverse Feed |
Product FAQs
4 answersHow many panel spaces does the BJ2125 require?
The BJ2125 requires four 1-inch pole spaces. It is designed to span both sides of the bus bar, occupying two spaces on the left side and two spaces on the right side of the load center.
Can I install the BJ2125 in any Eaton BR load center?
No. According to Eaton specifications, the BJ2125 requires at least a 150A rated load center to safely accommodate the breaker.
Do I need a hold-down kit when using the BJ2125 as a main breaker?
Yes. If you are installing the BJ2125 as a back-fed main breaker or service disconnect, a hold-down kit is required to secure it to the load center bus bar.
Is the Eaton BJ2125 a direct replacement for older Bryant or Westinghouse breakers?
Yes. Eaton manufactures the BJ2125 to directly replace legacy Bryant and Westinghouse BJ2125 main and branch circuit breakers.
