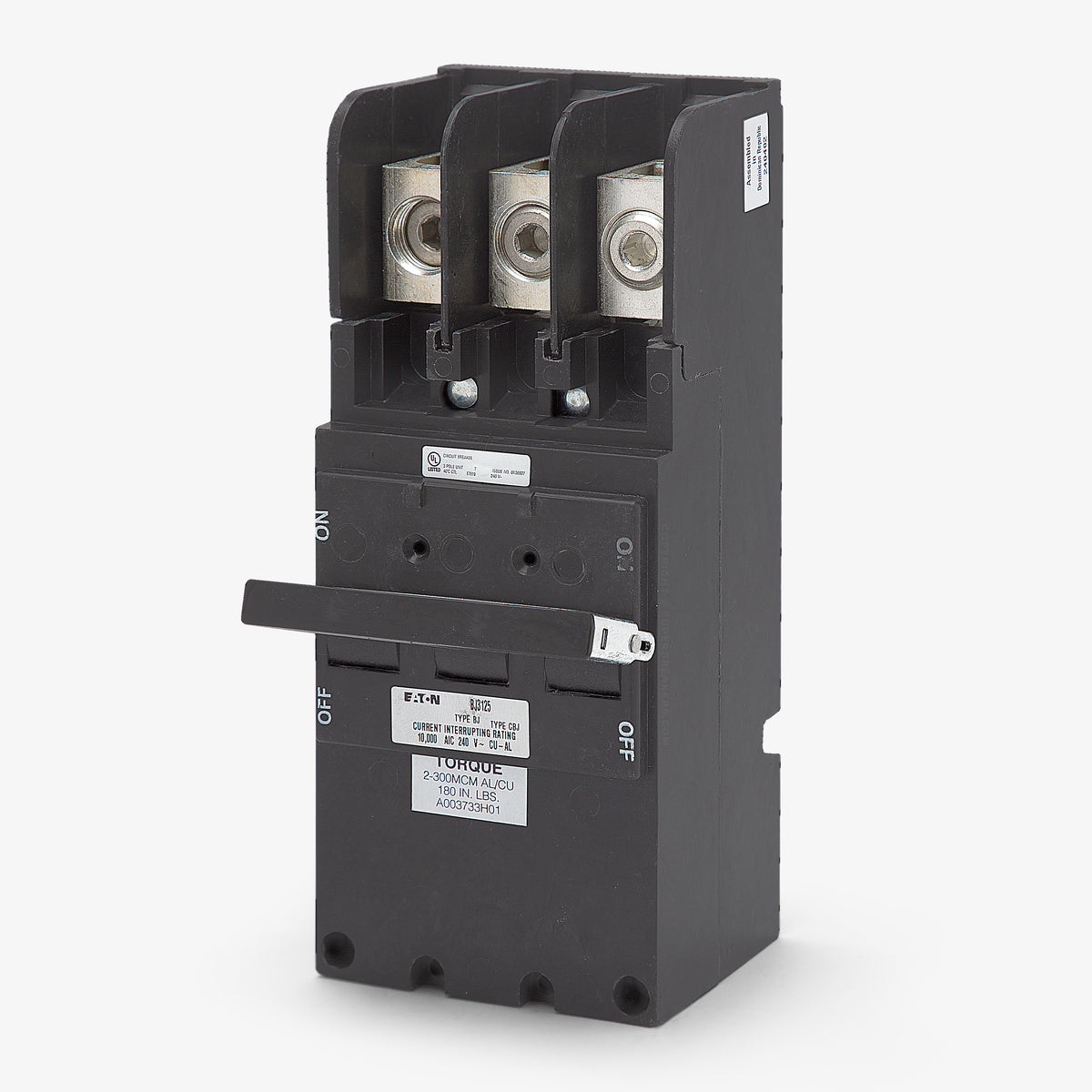

Eaton / Cutler-Hammer BJ3125 Molded Case Circuit Breaker
- 125A
- 3 Pole
- Plug-On
Eaton / Cutler-Hammer
BJ3125
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BJ3125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

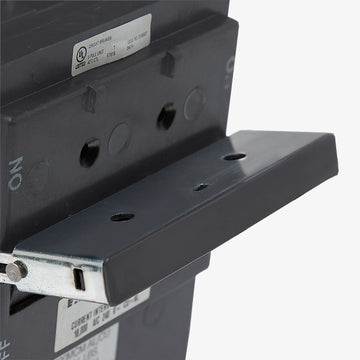

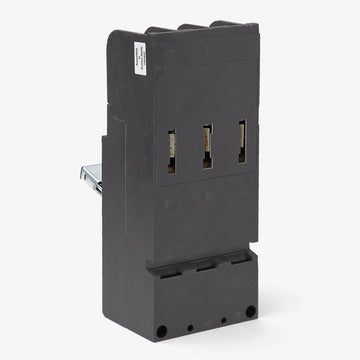

Eaton / Cutler-Hammer BJ3125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BJ3125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BJ3125 |
| Series | BJ |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Type BR Load Centers, Legacy Westinghouse/Bryant Load Centers |
| Wire Gauge | 2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Main Breaker |
Sold out
Quantity
Eaton / Cutler-Hammer BJ3125 - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BJ3125-R |
| Series | BJ |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Type BR Load Centers, Legacy Westinghouse/Bryant Load Centers |
| Wire Gauge | 2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Main Breaker |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
Description

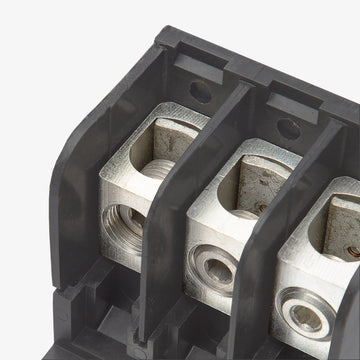

Rated 10 kAIC at 240VAC, this 125-amp main circuit breaker protects commercial branch circuits. The three-pole configuration utilizes standard thermal-magnetic trip mechanisms to defend against overloads and short circuits. This plug-on device fits into Eaton Type BR load centers, along with older Bryant enclosures. Installation requires a panel rated for at least 150A, utilizing six total 1-inch spaces. The included lug terminals accommodate 2 AWG to 300 kcmil conductors for flexible wiring.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BJ3125 |
| Series | BJ |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Type BR Load Centers, Legacy Westinghouse/Bryant Load Centers |
| Wire Gauge | 2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Main Breaker |
Product FAQs
6 answersHow many panel spaces does the BJ3125 require?
This breaker requires a total of six 1-inch spaces. Because it is a cross-panel main breaker, it mounts directly across the bus bar, occupying three spaces on the left side and three spaces on the right side.
What is the minimum load center rating required to use this main breaker?
Manufacturer specifications require the BJ3125 to be installed in an Eaton BR or legacy Bryant load center with a minimum bus rating of 150 amps.
Will this breaker fit into a standard single-phase residential panel?
No. As a 3-pole breaker, it is strictly designed for 3-phase electrical systems. It will not properly fit or function in a standard single-phase load center.
Can I use this Eaton breaker to replace a legacy Bryant main breaker?
Yes. Eaton manufactures the BJ and BR series as direct, backward-compatible replacements for older Bryant and Westinghouse load centers that utilize the same plug-on footprint.
How does the trip mechanism respond to a single-phase fault?
The breaker is equipped with an internal common trip linkage. If an overcurrent or short circuit event occurs on any individual phase, all three poles will trip simultaneously to safely isolate the entire circuit.
Is a hold-down kit required when installing the BJ3125?
If you are installing this breaker as a back-fed main device, National Electrical Code (NEC) guidelines require an approved hold-down kit to mechanically secure the plug-on breaker to the panel bus.
