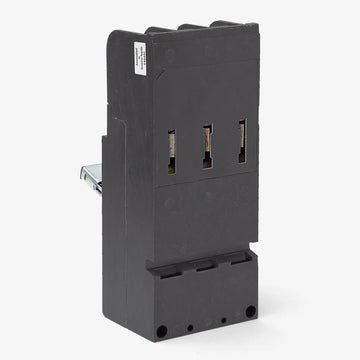

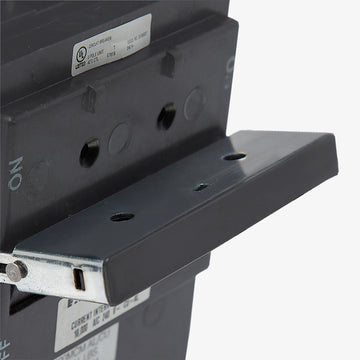

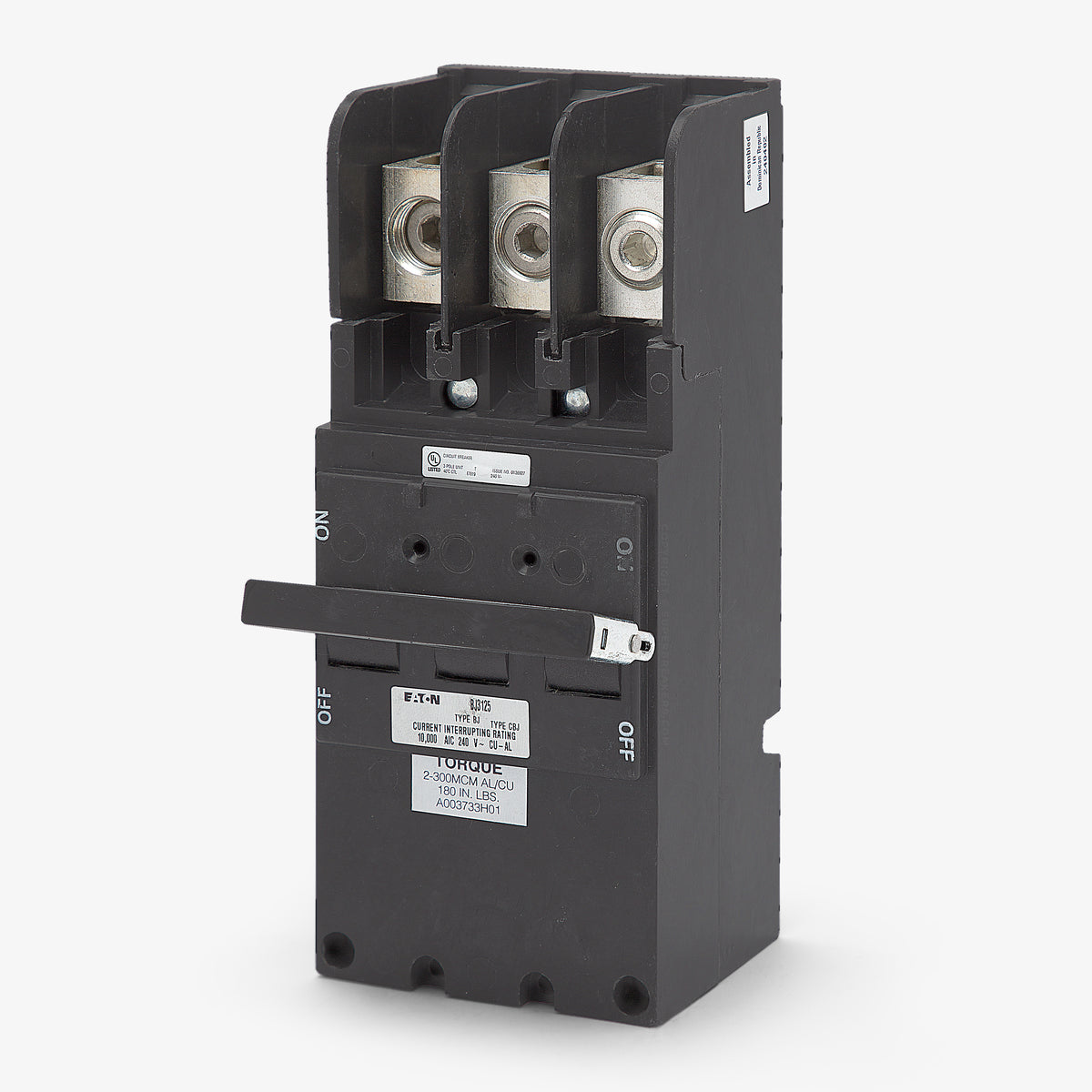

Eaton / Cutler-Hammer BJ3200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Plug-On
Eaton / Cutler-Hammer
BJ3200
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BJ3200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BJ3200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BJ3200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BJ3200 |
| Series | BJ |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |

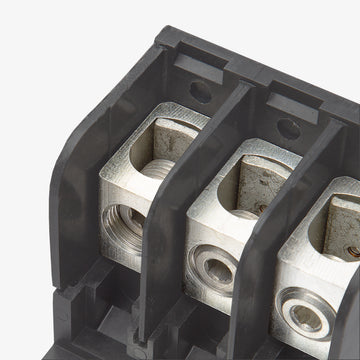

| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Type BR Load Centers, Legacy Westinghouse/Bryant Load Centers |
| Wire Gauge | 2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Reverse Feed |
Sold out
Quantity
Eaton / Cutler-Hammer BJ3200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BJ3200-R |
| Series | BJ |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Type BR Load Centers, Legacy Westinghouse/Bryant Load Centers |
| Wire Gauge | 2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Reverse Feed |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Built for residential and commercial applications, the Eaton BJ3200 provides robust overcurrent protection. This 3-pole, 200A breaker is part of the BR family and fits load centers rated at 150A or higher. Mounts into Eaton Type BR load centers and legacy Bryant panels. Due to its high amperage, this plug-on breaker spans across the panel bus, requiring three spaces on the left and three on the right (six total). Rated at 10 kAIC at 240VAC, it accepts #2 AWG to 300 kcmil wire.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BJ3200 |
| Series | BJ |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Type BR Load Centers, Legacy Westinghouse/Bryant Load Centers |
| Wire Gauge | 2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Reverse Feed |
Product FAQs
6 answersHow much panel space does the BJ3200 require for installation?
Due to its high amperage design, this breaker spans across both sides of the panel bus. It requires three 1-inch spaces on the left side and three 1-inch spaces on the right, taking up a total of six pole spaces in the load center.
What type of load centers accept the BJ3200 circuit breaker?
It installs directly into Eaton Type BR load centers that are rated for 150 amps or greater. It is also fully compatible with legacy Westinghouse and Bryant load centers that accept Type BJ breakers.
Can I use the Eaton BJ3200 to replace older Bryant models?
Yes, this breaker serves as a direct plug-on replacement for legacy Bryant and Westinghouse Type BJ breakers sharing the same 200A, 3-pole configuration.
Will this 3-pole breaker work in a standard residential single-phase panel?
No. The BJ3200 requires a 3-phase load center bus. It will not physically fit or function correctly in a standard single-phase residential panel, which instead requires a 2-pole main breaker.
Is the BJ3200 designed to be used as a main breaker or a branch breaker?
This versatile 200A breaker can serve as either a plug-on main breaker or a high-capacity branch breaker, depending on the bus design and ampacity rating of your specific panelboard.
What happens if only one phase experiences a fault or overload?
Because this breaker features a common trip mechanism, an overcurrent event on any single pole will automatically trip all three poles simultaneously. This ensures the entire 3-phase circuit is completely de-energized for system safety.
