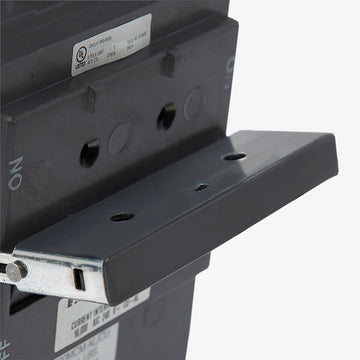

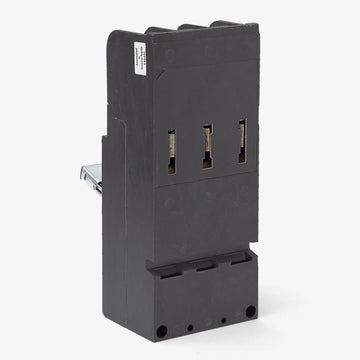

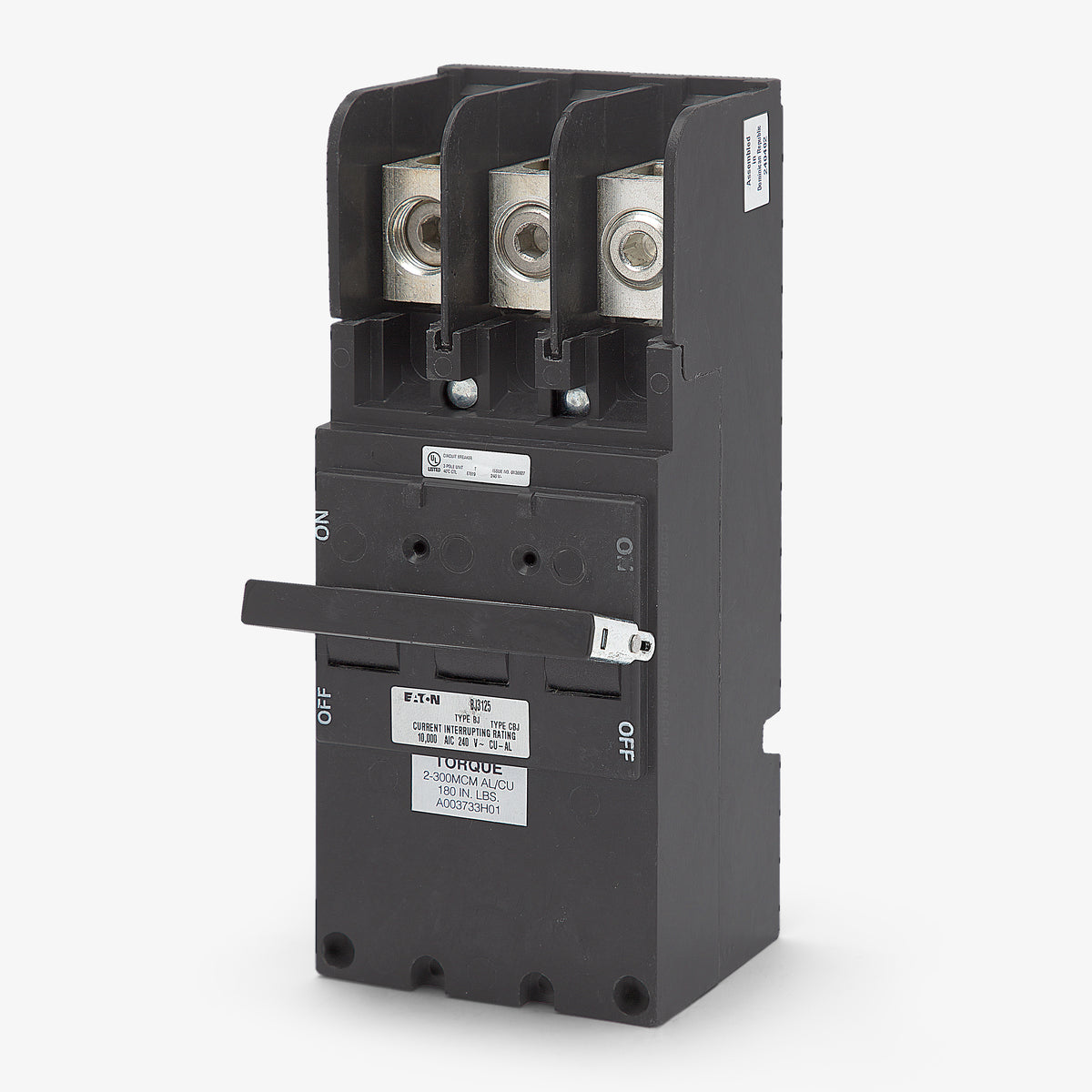

Eaton / Cutler-Hammer BJ3225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Plug-On
Eaton / Cutler-Hammer
BJ3225
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BJ3225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BJ3225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BJ3225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BJ3225 |
| Series | BJ |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |

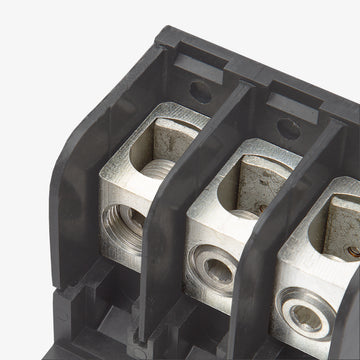

| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Type BR Load Centers, Legacy Westinghouse/Bryant Load Centers |
| Wire Gauge | 2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Reverse Feed |
Sold out
Quantity
Eaton / Cutler-Hammer BJ3225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BJ3225-R |
| Series | BJ |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Type BR Load Centers, Legacy Westinghouse/Bryant Load Centers |
| Wire Gauge | 2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Reverse Feed |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Engineered for high-capacity electrical distribution, the Eaton BJ3225 is a 225A, 3-pole thermal-magnetic circuit breaker. It provides essential long-time and instantaneous protection for residential and commercial applications. Designed to fit Eaton Type BR load centers, as well as legacy Westinghouse and Bryant enclosures. This breaker requires a panel rated for at least 150A and occupies six 1-inch pole spaces across the bus. This unit features a 10 kAIC rating at 240VAC.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BJ3225 |
| Series | BJ |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Type BR Load Centers, Legacy Westinghouse/Bryant Load Centers |
| Wire Gauge | 2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Reverse Feed |
Product FAQs
7 answersWhat load centers are compatible with the Eaton BJ3225?
This plug-on breaker is designed for current Eaton Type BR 3-phase load centers. It is also fully backwards compatible with legacy Westinghouse and Bryant enclosures that accept Type BJ breakers.
How many panel spaces does the BJ3225 require?
As a wide-body 3-pole breaker, the BJ3225 occupies six standard 1-inch pole spaces across the bus (three spaces on the left and three spaces on the right).
Do I need a hold-down kit for the BJ3225?
If you are installing the BJ3225 as a back-fed main breaker, the National Electrical Code (NEC) requires a compatible hold-down screw kit to secure the breaker to the panel bus.
Can the BJ3225 replace older Bryant or Westinghouse breakers?
Yes, Eaton manufactures the BJ3225 as the direct, UL-listed replacement for obsolete 225A, 3-pole Type BJ breakers originally made by Bryant and Westinghouse.
Can the BJ3225 be used as a main breaker?
Yes, while commonly used as a high-amperage branch breaker, the BJ3225 can also serve as a main breaker or service disconnect in compatible panels rated for 225A or higher.
Does the BJ3225 provide common trip functionality?
Yes, it features an internal common trip mechanism. If a fault or overload is detected on any single phase, all three poles will trip simultaneously to safely disconnect the entire circuit.
Is the BJ3225 suitable for 208Y/120V systems?
Yes, this 240VAC-rated 3-pole breaker is fully compatible with 208Y/120V three-phase, four-wire systems, as well as standard 240V three-phase systems.
