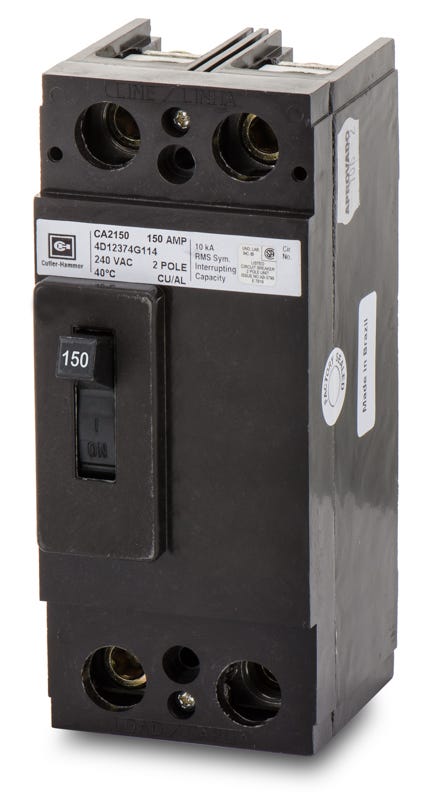

Eaton / Cutler-Hammer CA2150 Molded Case Circuit Breaker
- 150A
- 2 Pole
- Unit Mount
Eaton / Cutler-Hammer
CA2150
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CA2150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CA2150 - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CA2150 - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CA2150 |
| Series | CA |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | CA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse CDP, FDP, Pow-R-Line Panelboards |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Trip-Free Mechanism |
Quantity
Eaton / Cutler-Hammer CA2150 - 150A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CA2150-R |
| Series | CA |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | CA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse CDP, FDP, Pow-R-Line Panelboards |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Trip-Free Mechanism |
Similar Items
200A 2 Pole Molded Case Circuit Breaker
225A 2 Pole Molded Case Circuit Breaker
Description
Operating at 240VAC, this 150A Eaton molded case breaker delivers robust power distribution for commercial facilities. The legacy CA series provides a dependable solution for keeping older infrastructure running safely. Engineered for unit mounting, the breaker installs into classic Westinghouse CDP, FDP, and Pow-R-Line panelboards. For panel upgrades, the EHD2150 serves as the exact modern replacement. Rated at 10 kAIC, it employs a trip-free mechanism and fixed LI protection functions.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CA2150 |
| Series | CA |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | CA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse CDP, FDP, Pow-R-Line Panelboards |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
6 answersWhat panelboards are compatible with the CA2150?
It is engineered for unit mounting in classic Westinghouse CDP, FDP, and Pow-R-Line panelboards.
Will this Eaton CA2150 replace my original Westinghouse CA2150?
Yes. Eaton acquired the Westinghouse distribution equipment line and continued producing the CA frame. The Eaton, Cutler-Hammer, and Westinghouse CA2150 units share the exact same physical dimensions and functional ratings.
What does a feed-thru unit mount mean for installation?
A feed-thru unit mount breaker bolts directly to the enclosure backpan rather than plugging onto or bolting directly to a common busbar. Installers must run separate cables to both the line and load side lugs.
Are line and load lugs included with this breaker?
Yes, standard mechanical lugs are included on both ends. They are rated to accept 3 AWG through 300 kcmil aluminum or copper conductors.
Can the thermal magnetic trip unit be adjusted in the field?
No. The CA2150 features fixed thermal and fixed magnetic trip points. The long-time and instantaneous protection thresholds cannot be modified by the installer.
Can I use the CA2150 in a 480V distribution system?
No. The maximum voltage capacity for the CA frame is 240VAC. Connecting it to a 480V or 600V system violates electrical codes and safely exceeds its interrupting capabilities.
