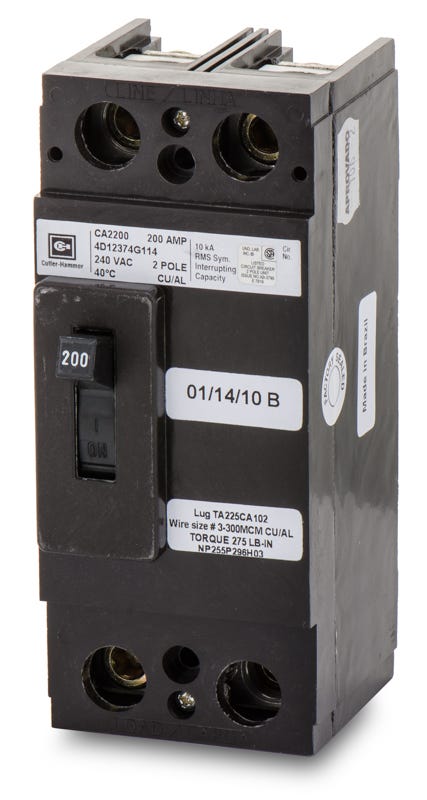

Eaton / Cutler-Hammer CA2200 Molded Case Circuit Breaker
- 200A
- 2 Pole
- Unit Mount
Eaton / Cutler-Hammer
CA2200
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CA2200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CA2200 - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer CA2200 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CA2200 |
| Series | CA |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | CA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse Panelboards, Eaton F-Frame Panelboards |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Quantity
Eaton / Cutler-Hammer CA2200 - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CA2200-R |
| Series | CA |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | CA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse Panelboards, Eaton F-Frame Panelboards |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
175A 2 Pole Molded Case Circuit Breaker
150A 2 Pole Molded Case Circuit Breaker
Description
Maintaining older commercial systems is straightforward with the Eaton CA2200. This 200A legacy C-Frame MCCB provides a reliable solution for existing infrastructure. Featuring a unit-mount design, it installs into classic Westinghouse panelboards and Eaton F-Frame enclosures. It can be substituted with FD2200 or ED2200 breakers. The device utilizes fixed thermal-magnetic trip technology to deliver accurate long-time and instantaneous (LI) protection. It carries a 10kAIC rating at 240VAC.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CA2200-R |
| Series | CA |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | CA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse Panelboards, Eaton F-Frame Panelboards |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
7 answersIs the Cutler-Hammer CA2200 circuit breaker still manufactured?
The legacy CA-frame breakers are obsolete. If you cannot source a direct replacement, Eaton recommends the ED2200 or FD2200 molded case circuit breakers as modern substitutes for existing Westinghouse or Eaton F-Frame applications.
Will the CA2200 fit into my existing Westinghouse electrical panel?
Yes, this unit-mount breaker is designed for backward compatibility with classic Westinghouse panelboards as well as Eaton F-Frame enclosures.
What is the maximum fault current the CA2200 can safely interrupt, and are higher-rated versions available?
The standard CA2200 provides a 10 kAIC interrupting rating at 240VAC. If your system requires a higher fault current rating in the exact same footprint, you will need to source the CAH2200 (rated for 22 kAIC) or the HCA2200 (rated for 42 kAIC).
What type of wire is compatible with the standard lugs on the CA2200?
The factory-installed line and load lugs on this feed-thru breaker accept both aluminum and copper conductors. The acceptable wire range is 3 AWG to 300 kcmil.
Can the thermal-magnetic trip unit on the CA2200 be adjusted for different loads?
No, the CA2200 features a fixed thermal-magnetic trip mechanism. It provides non-adjustable long-time and instantaneous (LI) overcurrent and short-circuit protection specifically calibrated for 200-amp applications.
Can the CA2200 be used in 3-phase electrical systems?
No, the CA2200 is a 2-pole breaker designed exclusively for single-phase, 240VAC applications. If your panel requires a 3-phase, 200-amp C-frame breaker, you will need to source the 3-pole CA3200 instead.
What routine maintenance should be performed on legacy Cutler-Hammer molded case breakers?
Per standard industry practices, periodically inspect the breaker for signs of overheating, tracking, or corrosion. Ensure lug terminations remain properly torqued, and manually exercise the breaker by toggling it on and off annually to keep the internal contacts and mechanism operating smoothly.
