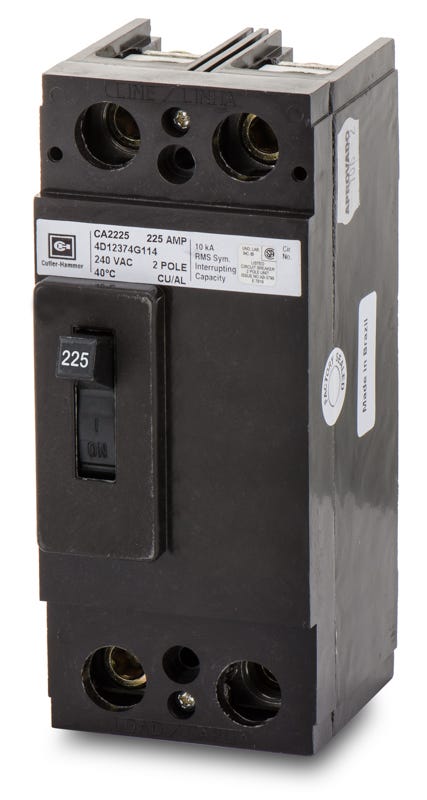

Eaton / Cutler-Hammer CA2225 Molded Case Circuit Breaker
- 225A
- 2 Pole
- Unit Mount
Eaton / Cutler-Hammer
CA2225
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CA2225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CA2225 - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CA2225 - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CA2225 |
| Series | CA |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | CA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse CDP, FDP, Pow-R-Line Panelboards |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Quantity
Eaton / Cutler-Hammer CA2225 - 225A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CA2225-R |
| Series | CA |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | CA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse CDP, FDP, Pow-R-Line Panelboards |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
175A 2 Pole Molded Case Circuit Breaker
150A 2 Pole Molded Case Circuit Breaker
Description
Built to support legacy distribution systems, the Eaton CA2225 is a 225A, 2-pole molded case circuit breaker. It delivers essential overcurrent and short-circuit defense for commercial and industrial facilities utilizing older C-Frame infrastructure. Designed for unit mounting, this breaker fits seamlessly into Westinghouse CDP, FDP, and Pow-R-Line panelboards. It effectively replaces older CC2225 units and is succeeded by the EHD2225 series.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CA2225 |
| Series | CA |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | CA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse CDP, FDP, Pow-R-Line Panelboards |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
4 answersWhich panelboards are compatible with the CA2225 circuit breaker?
The CA2225 is designed for use in legacy Westinghouse CDP and FDP panelboards, as well as Eaton Pow-R-Line distribution panels.
What hardware is required to add the CA2225 as a new branch circuit in a Westinghouse CDP panel?
Adding a new branch circuit requires a specific Eaton retrofit kit. These kits include the necessary bus connectors, mounting brackets, phase isolators, and hardware to safely mount the breaker to the vintage chassis. If you are simply replacing an existing CA-frame breaker, you can typically reuse the existing mounting hardware.
What does a feed-thru connection mean for the CA2225?
As a feed-thru breaker, the CA2225 uses mechanical lugs on both the line and load sides rather than plugging directly onto a panelboard bus. This requires individual wire conductors to be landed on both ends of the breaker.
What is the modern replacement for the legacy CA2225 breaker?
The CA2225 is a legacy C-Frame breaker. Eaton typically recommends modern F-Frame breakers, such as the FD or FDC series, as replacements. Upgrading to a newer frame style in an existing CDP or FDP panelboard requires a dedicated retrofit mounting kit to adapt the new breaker footprint to the vintage busbars.
