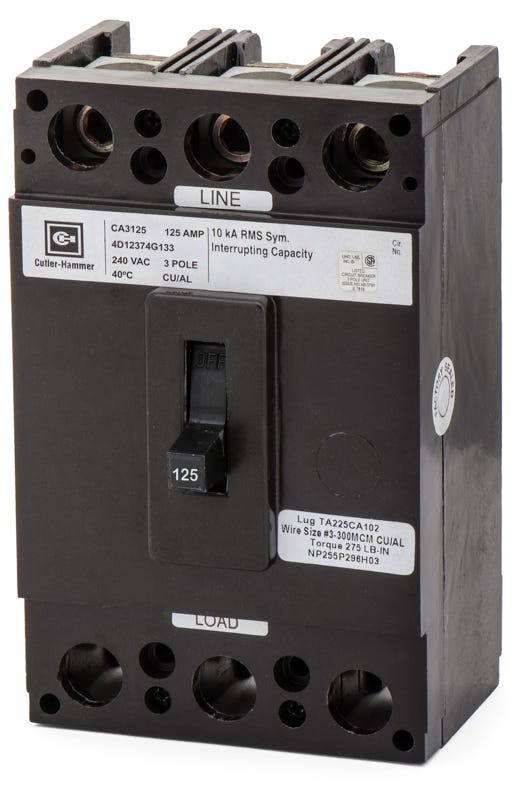

Eaton / Cutler-Hammer CA3125 Molded Case Circuit Breaker
- 125A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
CA3125
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CA3125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CA3125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CA3125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CA3125 |
| Series | CA |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse CDP, FDP, Pow-R-Line Panelboards |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Quantity
Eaton / Cutler-Hammer CA3125 - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CA3125-R |
| Series | CA |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse CDP, FDP, Pow-R-Line Panelboards |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
200A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
Description
Delivering 125A of continuous current capacity, the Eaton CA3125 is a 3-pole molded case circuit breaker. It is engineered to support industrial networks by preventing damaging overloads. Designed for unit-mount configurations, this C-Frame breaker fits into Westinghouse CDP, FDP, and Eaton Pow-R-Line panelboards. It serves as an exact substitute for CC3125 breakers. The unit utilizes a fixed thermal-magnetic trip to provide reliable protection with a 10kAIC rating at 240VAC.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CA3125 |
| Series | CA |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse CDP, FDP, Pow-R-Line Panelboards |
| Wire Gauge | 3 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
5 answersWhich panelboards are compatible with the CA3125?
This breaker is designed for legacy Westinghouse CDP and FDP distribution panels, as well as modern Eaton Pow-R-Line panelboards. It uses a standard unit-mount configuration rather than a plug-on or bolt-on chassis connection.
Can the Eaton CA3125 replace an older Westinghouse or Cutler-Hammer breaker?
Yes. Because Eaton acquired the Westinghouse and Cutler-Hammer product lines, this unit is the direct replacement for legacy CA3125 models. It also serves as an exact substitute for older CC3125 breakers.
Does this breaker require separate lug kits for installation?
No. The CA3125 comes standard with mechanical lugs already installed on both the line and load terminals. These terminals accept 3 AWG through 300 kcmil copper or aluminum conductors.
Can I adjust the trip settings on the CA3125?
No. This unit utilizes a standard fixed thermal-magnetic trip mechanism. Both the long-time overload and instantaneous short-circuit (LI) protection parameters are permanently set at the factory.
What does the 40-degree Celsius rating indicate?
Like most standard molded case circuit breakers, the CA3125 is calibrated to carry its full continuous current at a baseline ambient temperature of 40 degrees Celsius. Operating the breaker in significantly hotter environments may require thermal derating.
