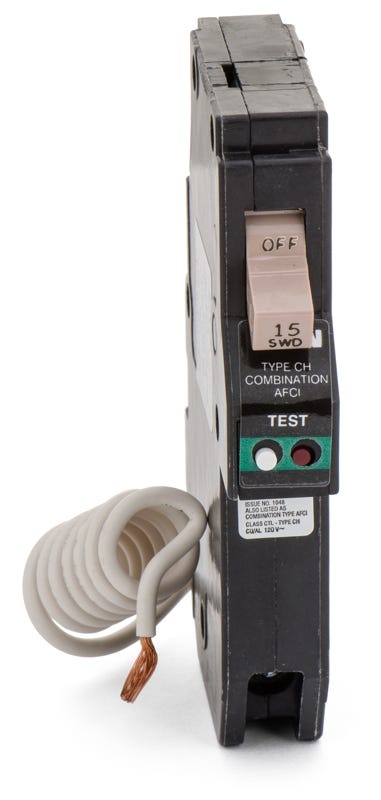

Eaton / Cutler-Hammer CHCAF115 AFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
CHCAF115
AFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHCAF115
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHCAF115 - 15A AFCI Miniature Circuit Breaker
New
Quantity
Similar Items
15A AFCI Miniature Circuit Breaker
20A AFCI Miniature Circuit Breaker
Eaton / Cutler-HammerCHFCAF115
15A AFCI Miniature Circuit Breaker
Description
Part of Eaton's trusted CH family, the CHCAF115 is a 1-pole, 15A combination arc fault circuit breaker. It is engineered to detect dangerous low-level arcing in residential branch circuits, providing a critical layer of fire prevention. This plug-on breaker fits perfectly into Eaton CH load centers and features a traditional pigtail neutral wire. With a 10 kAIC rating at 120/240V, the unit combines thermal-magnetic protection with advanced electronic arc sensing and is fully HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHCAF115 |
| Series | CH |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton CH Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Pigtail Neutral |
| Standards | UL 1699, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhat load centers are compatible with the CHCAF115 breaker?
This breaker is designed exclusively for use in Eaton Type CH load centers. It is not compatible with Eaton BR panels or panels from other manufacturers.
Does the CHCAF115 use a plug-on neutral or a pigtail neutral connection?
The CHCAF115 features a traditional pigtail neutral. During installation, the coiled white pigtail wire must be routed and connected directly to the neutral bar in the load center.
How is the load neutral wired on this AFCI breaker?
The load neutral wire from the branch circuit must be terminated at the neutral lug on the breaker itself. The breaker's white pigtail wire then completes the circuit by connecting to the panel neutral bar.
What is the direct replacement for the CHCAF115?
The CHCAF115 has been superseded by the Eaton CHFCAF115. The newer CHFCAF115 model provides the same 15A combination arc fault protection but adds a visual trip flag and diagnostic LED.
What type of faults does this combination AFCI breaker detect?
As a Combination Arc Fault Circuit Interrupter, it detects both parallel arcing (line-to-line or line-to-ground) and series arcing (loose connections or damaged wires) to help prevent electrical fires, in addition to standard overload and short-circuit protection.
Is the CHCAF115 suitable for HVAC equipment?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires a 15A circuit.
