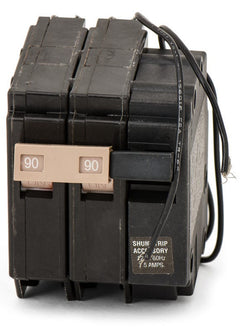

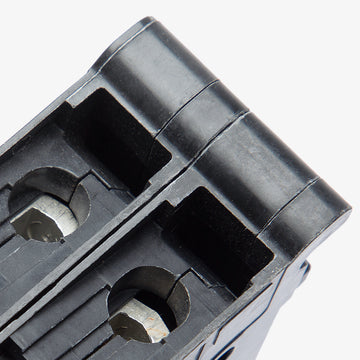

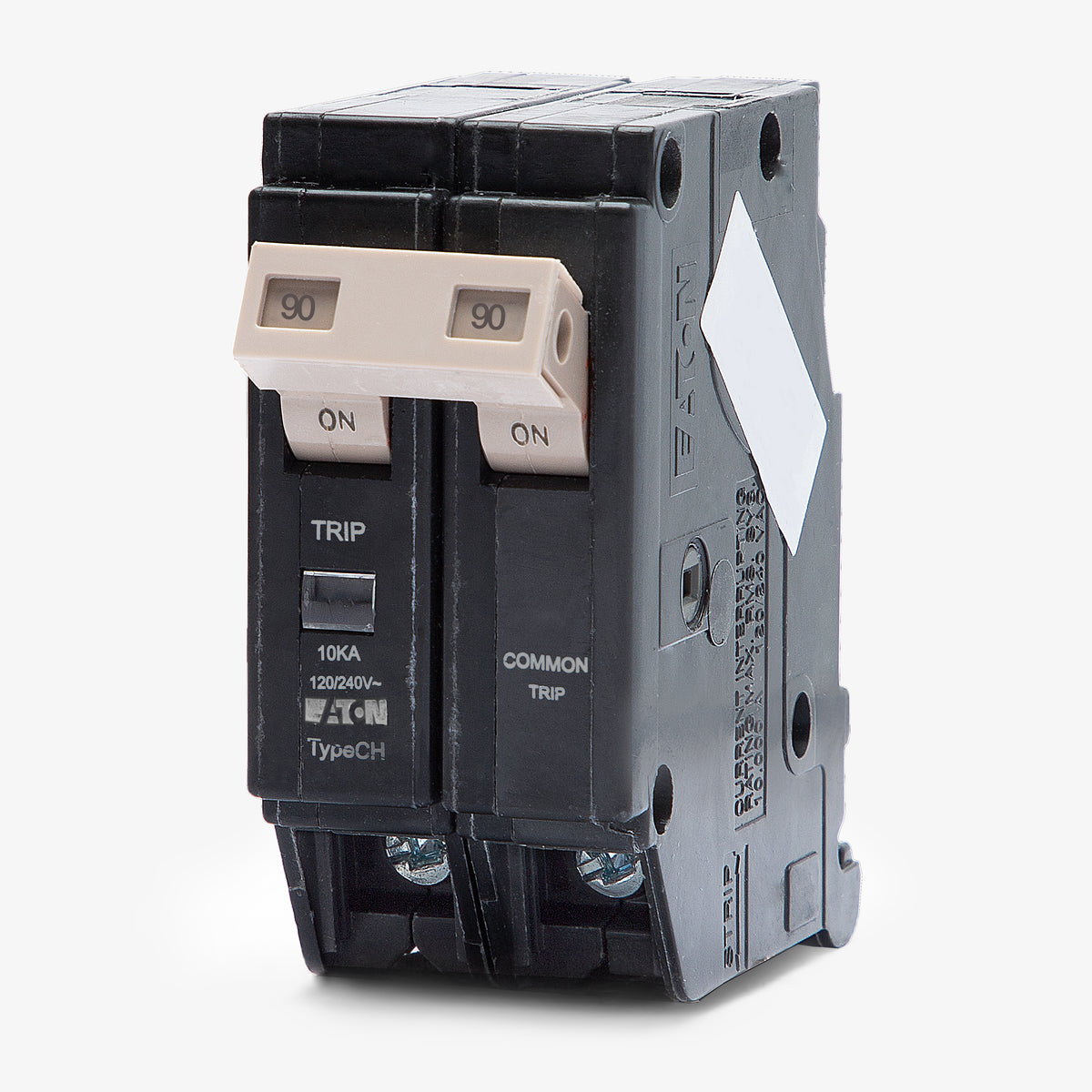

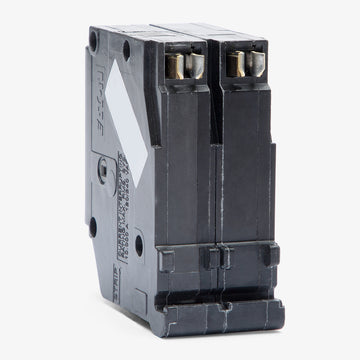

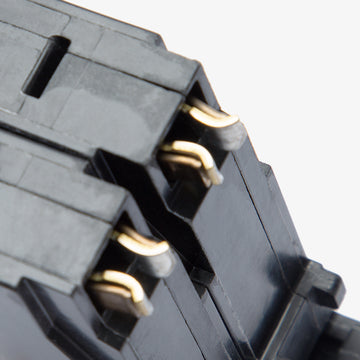

Eaton / Cutler-Hammer CH290 Miniature Circuit Breaker
- 90A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
CH290
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CH290
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CH290 - 90A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CH290 - 90A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH290 |
| Series | CH |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type CH Load Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated |
Sold out
Quantity
Eaton / Cutler-Hammer CH290 - 90A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH290-R |
| Series | CH |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type CH Load Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated |
Similar Items
100A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
80A 2 Pole Miniature Circuit Breaker
Description
Engineered to fit Cutler-Hammer and Eaton Type CH load centers, this two-pole 90A device delivers essential overcurrent safety for heavy-duty residential circuits. It installs into standard 3/4-inch slot configurations, making it ideal for subpanels or main enclosures requiring compact footprints. The unit carries a standard 10kAIC rating and is fully HACR certified, ensuring safe operation when supplying power to demanding HVAC loads, electric ranges, or larger workshop equipment.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH290 |
| Series | CH |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type CH Load Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated |
Product FAQs
6 answersCan I install the CH290 in an Eaton BR or Square D Homeline panel?
No. The CH290 is designed exclusively for Eaton and Cutler-Hammer Type CH load centers. It is not interchangeable with Type BR, Square D Homeline, or other 1-inch breaker formats.
How much panel space does the CH290 require?
This 2-pole breaker requires two 3/4-inch spaces, taking up a total width of 1.5 inches in a Type CH load center.
What is the proper way to torque the lug terminals on the CH290?
Torque requirements can vary based on the specific wire gauge used. Always refer to the specification label printed on the side of the circuit breaker for the exact inch-pound torque values before terminating your 10 to 1/0 AWG copper or aluminum wire.
Is the CH290 suitable for use with HVAC equipment?
Yes, this breaker is HACR rated, making it approved for use with heating, air conditioning, and refrigeration equipment that requires this specific safety listing.
Can the CH290 be used as a back-fed main breaker?
Yes, it can be used as a back-fed main breaker in compatible Type CH panels, but it requires the installation of an Eaton CHPHD hold-down retainer kit to secure it to the bus bar in compliance with the National Electrical Code (NEC).
Is this the same as a Cutler-Hammer CH290?
Yes. Eaton acquired Cutler-Hammer, and the CH series breakers are the exact same product line. They are easily identified by their classic tan handles and 3/4-inch per pole footprint.
