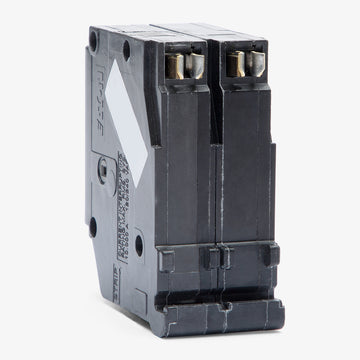

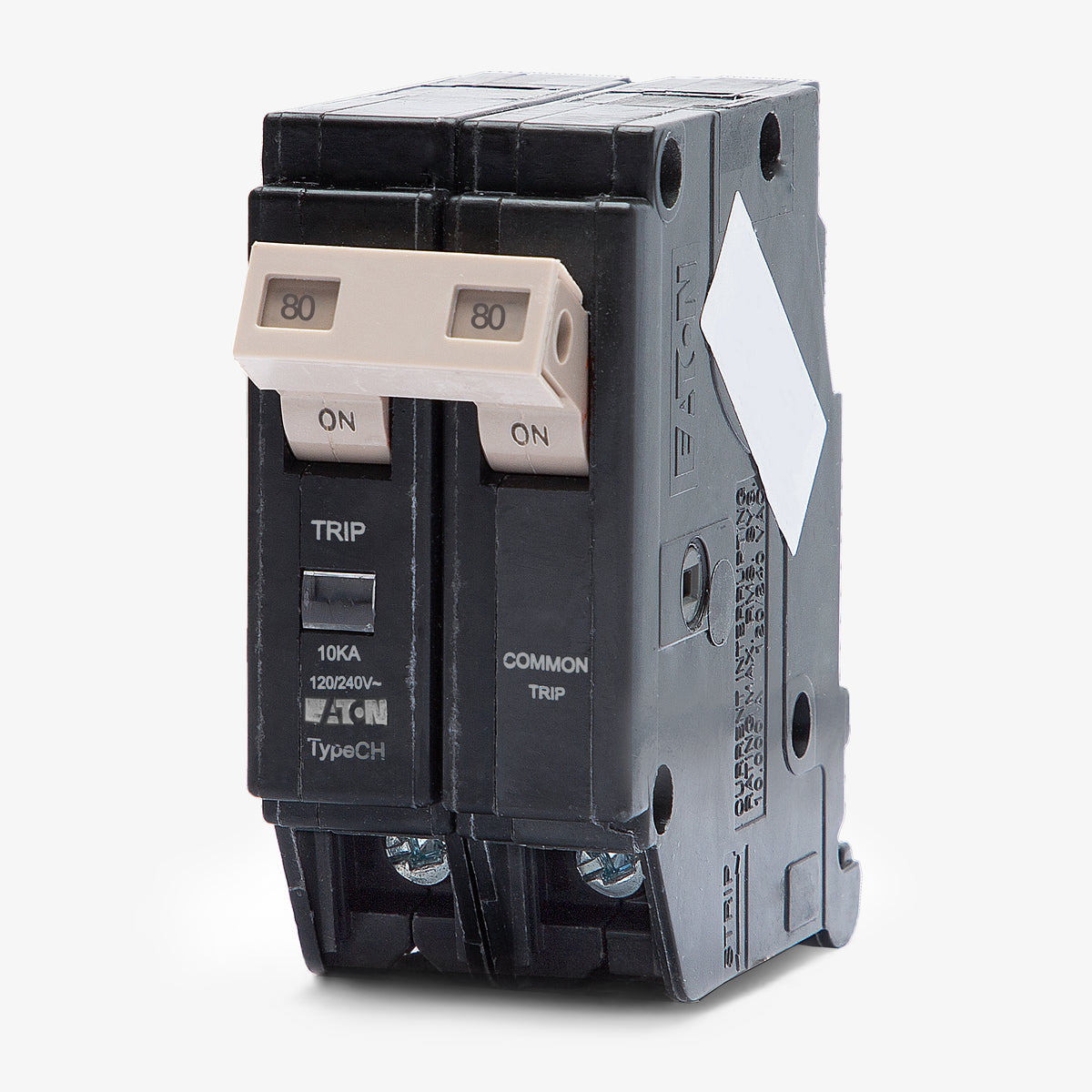

Eaton / Cutler-Hammer CH280 Miniature Circuit Breaker
- 80A
- 2 Pole

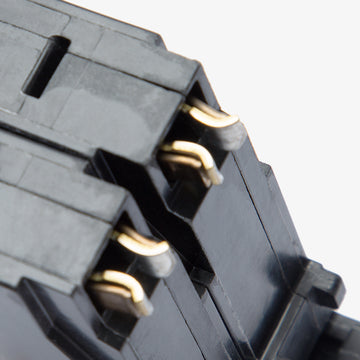

- Plug-On
Eaton / Cutler-Hammer
CH280
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CH280
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CH280 - 80A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CH280 - 80A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH280 |
| Series | CH |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|

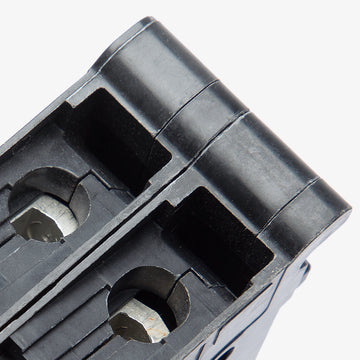

| Terminal Type | Box Lugs |
| For Use With | Type CH Load Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip |
Sold out
Quantity
Eaton / Cutler-Hammer CH280 - 80A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH280-R |
| Series | CH |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type CH Load Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip |
Similar Items
90A 2 Pole Miniature Circuit Breaker
90A 2 Pole Miniature Circuit Breaker
70A 2 Pole Miniature Circuit Breaker
Description
Operating at 120/240VAC, this 80A two-pole breaker delivers reliable thermal-magnetic protection for residential and commercial branch circuits. The common trip mechanism ensures both poles disconnect simultaneously during a fault. This plug-on component installs into Eaton and Cutler-Hammer Type CH load centers, occupying two standard 3/4-inch spaces. It features box lug terminals that accommodate 10-1/0 AWG copper or aluminum wire. With a 10kAIC interrupt capacity, the breaker is HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH280 |
| Series | CH |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type CH Load Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
8 answersWhat type of load center is required for the CH280?
This breaker is designed exclusively for Eaton or Cutler-Hammer Type CH load centers. It features a 3/4-inch per pole width and will not fit in 1-inch Type BR panels.
Can I use this breaker in a Type BR or standard 1-inch load center?
No. The CH280 has a 3/4-inch per pole footprint specific to Type CH panels. It is not interchangeable with 1-inch format breakers like Type BR, HOM, or QP.
How much panel space does the CH280 require?
As a 2-pole Type CH breaker, it requires two 3/4-inch spaces, taking up a total of 1.5 inches of space on the bus bar.
What is the recommended tightening torque for the box lugs on the CH280?
The box lugs on this 80A breaker should be torqued to 65 lb-in. Always verify with the specification label on the breaker or the load center door before finalizing connections.
Does this breaker require a hold-down kit if used as a back-fed main?
Yes. When installed as a back-fed main breaker in a Type CH load center, you must use a hold-down retainer kit, such as the CH125RB, to comply with NEC requirements.
Is the Eaton CH280 the same as a Cutler-Hammer CH280?
Yes. Eaton acquired Cutler-Hammer, and the Type CH product line remains identical. A CH280 breaker branded as Eaton is an exact replacement for an older Cutler-Hammer CH280.
Does the CH280 include GFCI or AFCI protection?
No. This is a standard thermal-magnetic breaker providing overload and short-circuit protection only. It does not include ground fault or arc fault circuitry.
What does the LI trip function on this breaker indicate?
The LI designation means this thermal-magnetic breaker includes both Long-Time and Instantaneous trip functions. The long-time element handles sustained overloads, while the instantaneous element reacts immediately to severe short circuits.
