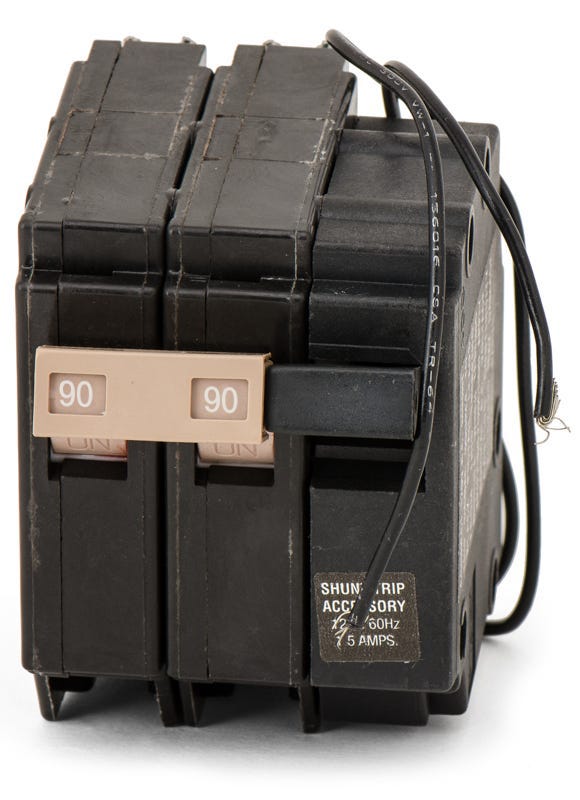

Eaton / Cutler-Hammer CH290ST Miniature Circuit Breaker
- 90A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
CH290ST
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CH290ST
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CH290ST - 90A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
80A 2 Pole Miniature Circuit Breaker
70A 2 Pole Miniature Circuit Breaker
125A 2 Pole Miniature Circuit Breaker
Description
Featuring an integrated shunt trip mechanism, this 90A commercial-grade component enables remote power disconnection for emergency stops or automated control systems. It installs into standard Eaton Type CH load centers, requiring three 3/4-inch pole spaces to accommodate both the two-pole breaker and the attached accessory. Rated for 10kAIC at 120/240V, the assembly provides robust thermal-magnetic protection alongside its remote tripping capabilities, making it ideal for industrial safety.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH290ST |
| Series | CH |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type CH Load Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated |
Product FAQs
4 answersHow many panel spaces are required to install the CH290ST?
While it is a 2-pole breaker, the factory-installed shunt trip requires an additional pole space. It occupies a total of three 3/4-inch spaces in an Eaton Type CH load center.
What function does the shunt trip provide on the CH290ST?
The integrated shunt trip mechanism allows for remote power disconnection. This is typically used for emergency stops, fire alarm integration, or automated control systems.
Can the CH290ST be installed in BR series load centers?
No. This breaker is strictly for use in Eaton or Cutler-Hammer Type CH load centers. It features a 3/4-inch plug-on design that is not interchangeable with 1-inch Type BR panels.
How does the thermal-magnetic trip unit operate on this breaker?
The fixed thermal-magnetic mechanism provides a delayed response to mild overloads to prevent nuisance tripping, while reacting instantaneously to severe short-circuit conditions.
