Eaton / Cutler-Hammer CHFGF115 GFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
CHFGF115
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHFGF115
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

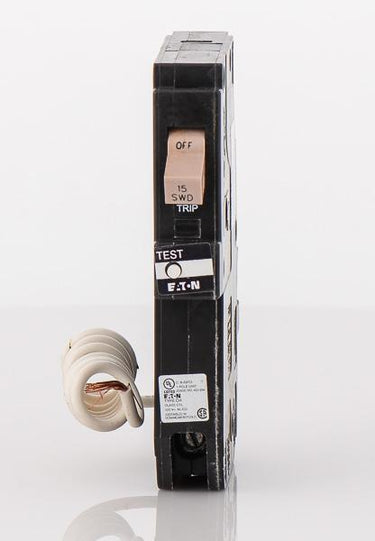

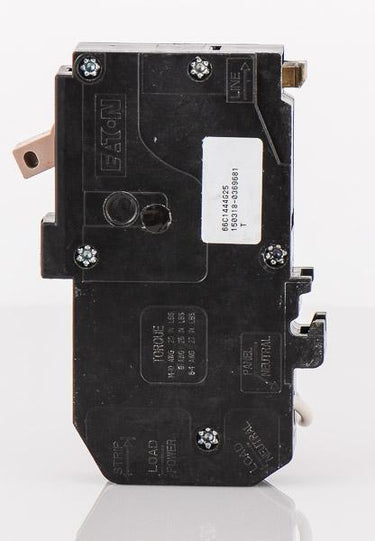

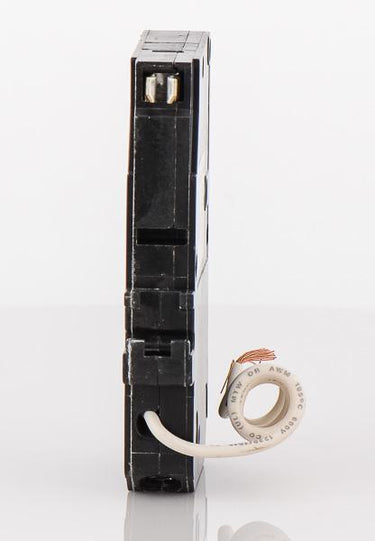

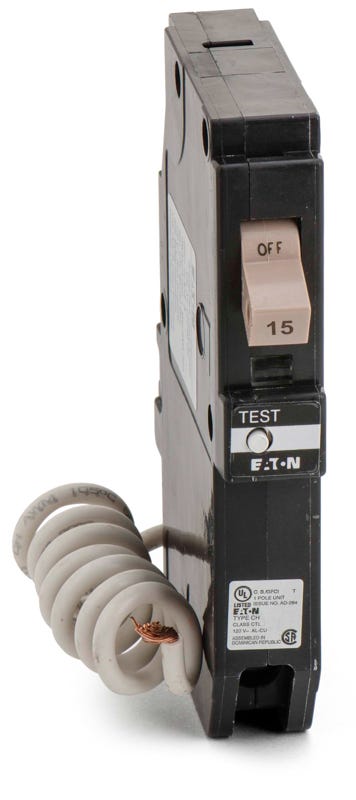

Eaton / Cutler-Hammer CHFGF115 - 15A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
15A GFCI Miniature Circuit Breaker
15A GFCI Miniature Circuit Breaker
15A GFCI Miniature Circuit Breaker
Description
Built for residential and commercial applications, the Eaton CHFGF115 delivers reliable 5mA ground fault protection. This 1-pole, 15A miniature circuit breaker features a pigtail neutral and thermal-magnetic trip technology to safeguard against electrical hazards in wet or damp locations. It mounts into standard Eaton Type CH loadcenters using a secure plug-on connection. This unit is succeeded by the newer CHFN115GF series. Rated at 10 kAIC, it includes a visual trip flag.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHFGF115 |
| Series | CHF |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type CH Loadcenters |
| Wire Gauge | (1) 14-8 AWG (Cu/Al) or (2) 14-10 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | HACR, UL 489, UL 943 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated, Visual Trip Indicator |
Product FAQs
6 answersWhich electrical panels accept the CHFGF115 breaker?
This plug-on breaker is exclusively compatible with Eaton and Cutler-Hammer Type CH load centers. It features a 3/4-inch width per pole and will not fit in Type BR or competitor panels.
Is the CHFGF115 a direct replacement for the CH115GF?
Yes, the CHFGF115 replaces the obsolete Cutler-Hammer CH115GF. It provides the same 15-amp ground fault protection and fits the exact same Type CH load centers.
Does this breaker require a plug-on neutral panel?
No, the CHFGF115 is a pigtail neutral breaker. It includes a coiled white wire that must be manually routed and secured to the panel's neutral bus bar, making it compatible with older, non-plug-on neutral Type CH panels.
Can I terminate two wires under the load lug of this breaker?
Yes, the box lug is rated to accept either a single 14 to 8 AWG wire or two 14 to 10 AWG wires, using either copper or aluminum conductors.
What level of ground fault protection does this breaker offer?
It provides Class A ground fault protection, meaning it is calibrated to trip when it detects a ground fault current of 5mA. This is the standard required for personnel protection in wet areas like bathrooms and kitchens.
How do I know if the breaker tripped due to a fault?
The CHF series includes a mechanical trip flag indicator. When the breaker trips due to an overload, short circuit, or ground fault, the flag provides a clear visual indication at the handle.
