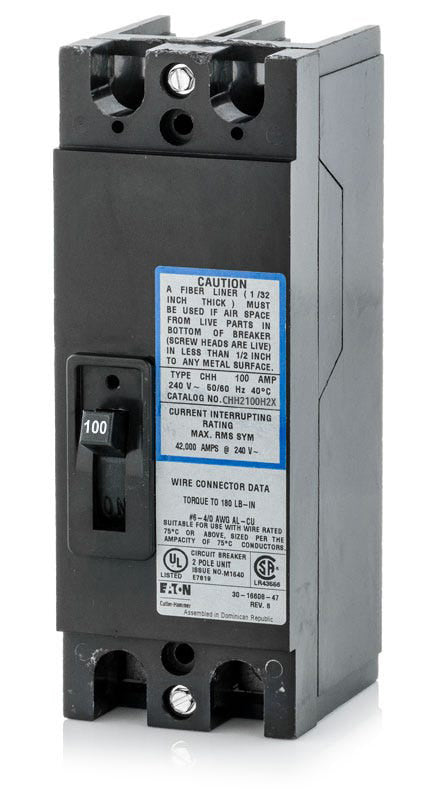

Eaton / Cutler-Hammer CHH2100H2X Molded Case Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
CHH2100H2X
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHH2100H2X
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHH2100H2X - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CHH2100H2X - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHH2100H2X |
| Series | CHH |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Modular Metering Stacks (1MM, 35MM, 37MM, 37SS) |
| Wire Gauge | #2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | #2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Tenant Main |
Sold out
Quantity
Eaton / Cutler-Hammer CHH2100H2X - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | CHH |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Modular Metering Stacks (1MM, 35MM, 37MM, 37SS) |
| Wire Gauge | #2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | #2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Tenant Main |
Similar Items
Eaton / Cutler-HammerCHH2125H4X
125A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerCHH2060H4X
60A 2 Pole Molded Case Circuit Breaker
150A 2 Pole Molded Case Circuit Breaker
Description
Built for residential and commercial applications, the CHH2100H2X is a 100A tenant main circuit breaker from Eaton's Cutler-Hammer line. This two-pole breaker installs into Eaton modular metering stacks, including the 1MM, 35MM, 37MM, and 37SS series. Rated at 25 kAIC at 120/240V, it provides essential overcurrent protection and is HACR rated for HVAC equipment. For newer installations or upgrades, this legacy model is replaced by the CVS2100XMM.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHH2100H2X |
| Series | CHH |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Modular Metering Stacks (1MM, 35MM, 37MM, 37SS) |
| Wire Gauge | #2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | #2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Tenant Main |
Product FAQs
6 answersWhich Eaton metering enclosures are compatible with the CHH2100H2X tenant main breaker?
This breaker is specifically designed for use in Eaton 1MM, 35MM, 37MM, and 37SS modular metering stacks. It serves as the main disconnect for individual tenant units in residential or light commercial multi-metering setups.
How is the CHH2100H2X secured inside the metering stack?
It utilizes a bolt-on connection to attach directly to the vertical bus within the tenant breaker compartment. This bolt-on design ensures a secure, high-conductivity connection that resists loosening from thermal cycling.
What protection functions does the LI trip unit provide?
The fixed thermal-magnetic trip unit includes Long-Time (L) and Instantaneous (I) functions. The thermal element protects against sustained overloads, while the magnetic element trips instantaneously to clear severe short circuits.
What wire materials and sizes are supported by the load terminals?
The load side lugs accept both copper (Cu) and aluminum (Al) conductors ranging from #2 AWG to 300 kcmil. Always apply an approved joint compound when terminating aluminum conductors to prevent oxidation.
Is this breaker suitable for standard single-phase residential services?
Yes, it is designed for 1-phase applications and is fully compatible with standard 120/240V AC systems. It provides a 25kA interrupting capacity to safely clear faults in multi-family residential or commercial metering centers.
Can this replace older Cutler-Hammer CHH tenant breakers?
Yes, Eaton acquired Cutler-Hammer and continues to manufacture these breakers to the same specifications. The CHH2100H2X is a direct replacement for older Cutler-Hammer breakers with the exact same catalog number.
