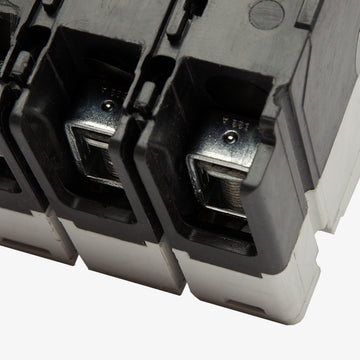

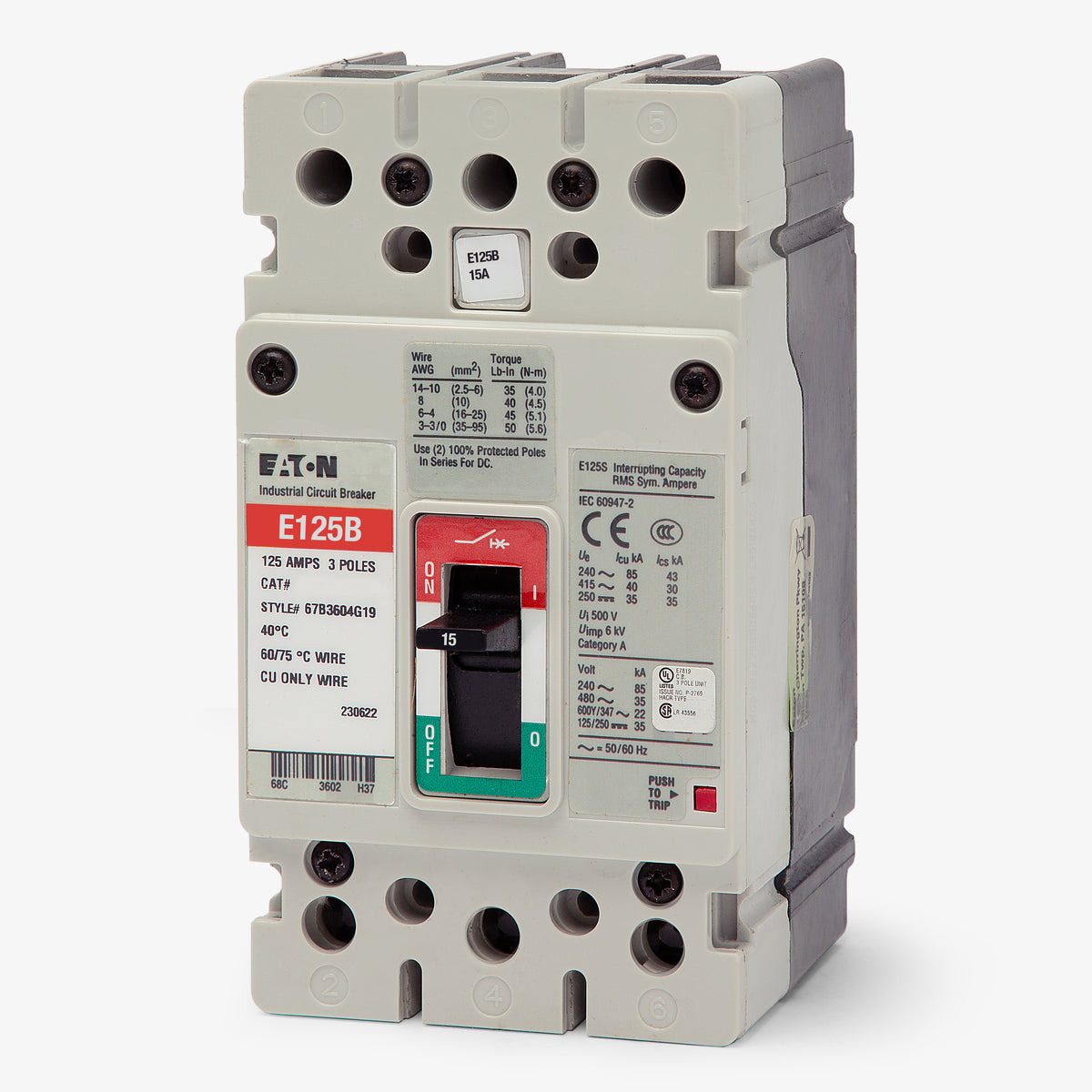

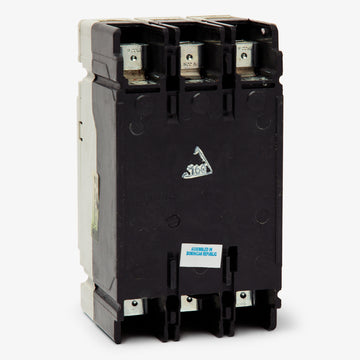

Eaton / Cutler-Hammer EGB3015FFG Molded Case Circuit Breaker
- 15A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
EGB3015FFG
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EGB3015FFG
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer EGB3015FFG - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerEGB3025FFG
25A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGB3030FFG
30A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGB3035FFG
35A 3 Pole Molded Case Circuit Breaker
Description
Built for versatile integration, this 15A three-phase molded case circuit breaker features a unit-mount configuration. The EG frame device delivers reliable fixed thermal-magnetic protection. Supplied with line and load lugs, it installs into Eaton Series G enclosures, switchboards, and motor control centers. The breaker accommodates 14-1/0 AWG wire and crosses to the newer Power Defense PDG13C0015TFFJ. Rated 18kAIC at 480VAC, it includes current-limiting blow-open action to clear faults.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EGB3015FFG |
| Series | EGB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series G Enclosures, Switchboards, Motor Control Centers, OEM Panels |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Handle Mechanism, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, KEMA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, HID Rated, Reverse Feed |
Product FAQs
6 answersWhat enclosures and panels are compatible with the EGB3015FFG?
This EG-frame breaker is designed for use in Eaton Series G enclosures, switchboards, motor control centers, and OEM panels.

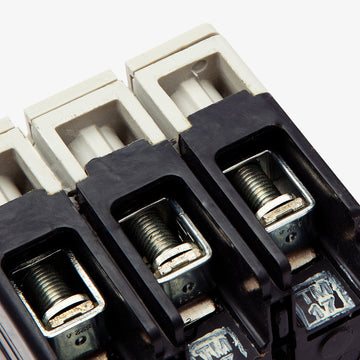

What wire sizes do the lugs on the EGB3015FFG accept?
The included line and load lugs accept 14 AWG to 1/0 AWG wire.
How does this circuit breaker mount?
The EGB3015FFG is a unit-mount, feed-thru circuit breaker. It bolts directly to the panel or mounting surface rather than plugging onto a busbar.
Can the EGB3015FFG be used in DC electrical systems?
Yes, this breaker is rated for DC applications up to 125/250 VDC with a 10 kA interrupting capacity.
Are the trip settings on the EGB3015FFG adjustable?
No, it features a non-interchangeable thermal-magnetic trip unit with fixed long-time and fixed instantaneous (LI) trip functions.
What does the FFG suffix mean in the EGB3015FFG catalog number?
In the Eaton Series G nomenclature, FF indicates fixed thermal and fixed magnetic trip elements, while G means the breaker includes both line and load side lug terminals.
