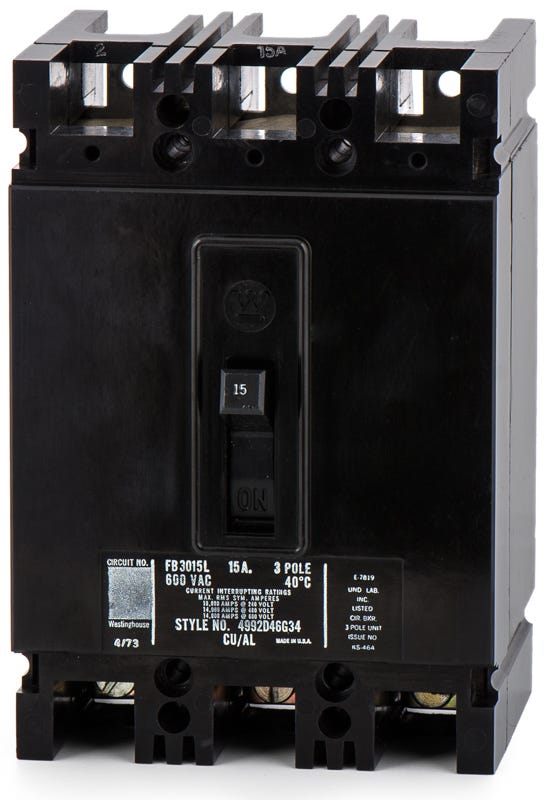

Eaton / Cutler-Hammer FB3015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
FB3015
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FB3015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer FB3015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
10A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial power distribution, the Eaton FB3015 is a 3-pole, 15A molded case circuit breaker. It operates up to 600VAC, providing essential overcurrent protection for switchboards and motor control centers. This bolt-on breaker installs into legacy Westinghouse and Cutler-Hammer Pow-R-Line C or FDP panelboards. It serves as an exact fit for older infrastructure and can be replaced by FDB3015 or FD3015 models. Rated at 18 kAIC at 240V, it features a fixed thermal-magnetic trip unit.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FB3015-R |
| Series | FB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse / Cutler-Hammer Pow-R-Line C Panelboards, FDP Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards are compatible with the FB3015 circuit breaker?
This F-frame breaker is designed specifically for legacy Westinghouse and Cutler-Hammer Pow-R-Line C panelboards, FDP panelboards, switchboards, and motor control centers.
What are the modern replacements for the legacy FB3015?
The FB3015 is an older legacy MCCB that can typically be replaced by newer Eaton F-frame models, such as the FDB3015 or FD3015. Because they share the same F-frame designation, they have identical physical dimensions and bolt-on mounting configurations.
Can the FB3015 be installed in a Square D or Siemens panelboard?
No. Eaton and Cutler-Hammer F-frame breakers are proprietary and not cross-compatible with other manufacturers' equipment. They must be installed in compatible Westinghouse or Cutler-Hammer enclosures to maintain safety and UL listings.
Are the trip settings on the FB3015 field-adjustable?
No. This breaker features a fixed thermal-magnetic trip unit. Both the long-time overload protection and the instantaneous short-circuit protection are factory-set and cannot be adjusted.
Is the FB3015 rated for use with aluminum conductors?
Yes, the standard lugs accept both copper and aluminum wire from 14 AWG to 1/0 AWG. When terminating aluminum conductors, it is recommended to apply a suitable oxide-inhibiting joint compound to prevent terminal overheating.
Can a 3-pole FB3015 be wired for a 2-pole application?
Yes. According to Eaton installation guidelines for F-frame breakers, a 3-pole breaker may be wired and used as a 2-pole breaker if required by the application.
