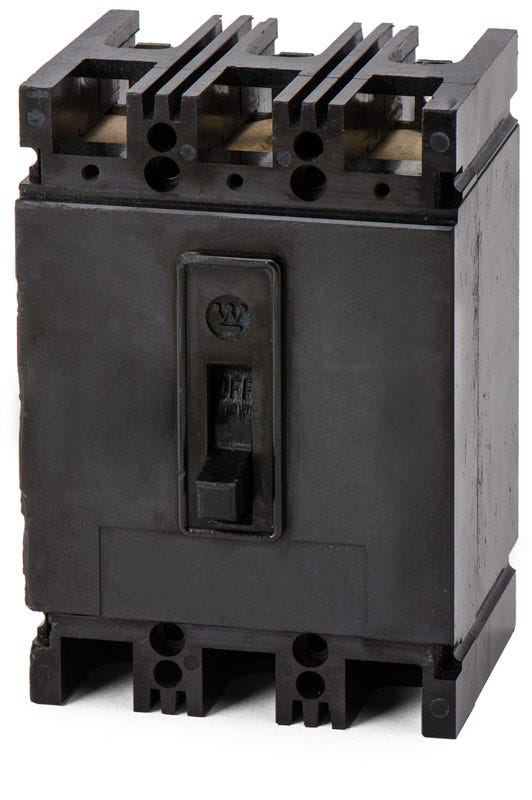

Eaton / Westinghouse FB3020 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
Eaton / Westinghouse
FB3020
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
FB3020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse FB3020 - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
15A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
10A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Eaton FB3020 provides robust overcurrent protection in a 3-pole, 600VAC package. This legacy F-frame breaker is designed to mount into vintage Westinghouse CDP and FDP panelboards, as well as classic motor control centers. Featuring proven AB De-Ion technology, it delivers a 14kAIC rating at 480V. For modern upgrades, this unit is commonly replaced by the FDB3020 or FD3020 series.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | FB3020-R |
| Series | FB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse CDP Panelboards, FDP Panelboards, Motor Control Centers |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Terminals |
| Standards | NEMA AB-1, UL 489, W-C-375b |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | AB De-Ion Technology |
Product FAQs
5 answersWhat is the modern replacement for the legacy FB3020 circuit breaker?
For modern upgrades, the Eaton and Westinghouse FB3020 is commonly replaced by the Series C FDB3020 or FD3020 circuit breakers.
Which panelboards accept the FB3020 circuit breaker?
This legacy F-frame breaker is designed for bolt-on installation in vintage Westinghouse CDP and FDP panelboards, as well as classic motor control centers.
Can the FB3020 be reverse fed in a panelboard?
Yes, standard thermal-magnetic FB breakers without Line and Load markings are suitable for reverse feeding. When used as a back-fed main breaker, the National Electrical Code requires it to be secured with an approved retaining bracket.
Does the FB3020 require a retrofit kit to mount in a Westinghouse CDP panelboard?
No, as a legacy F-frame breaker, the FB3020 mounts directly into vintage Westinghouse CDP and FDP panelboards using standard bus connection hardware. Retrofit kits are typically only required when upgrading to modern Series C replacements.
How does the AB De-Ion technology improve the safety of the FB3020?
The proprietary AB De-Ion arc extinguisher technology rapidly cools and quenches electrical arcs generated during short circuits or severe overloads. This protects the internal contacts from damage and ensures safe, reliable interruption of fault currents.
SuperClub
Join free. Get 500 SuperPoints.
Earn points on eligible purchases and redeem them at checkout.
100 SuperPoints = $1 off.
Warranties
Add an extra year of protection
60-Day Warranty
Your purchase includes 60 days of SuperBreakers warranty coverage.
Add a 1-year warranty extension in your cart.
Get a Quote
Don’t see what you’re looking for?
We source obsolete and hard-to-find parts every day.
Shipping
Free Shipping Policy
Parcel shipments with item value over $99 qualify for free economy shipping within the continental US. Please call to confirm special handling instructions. We do not charge a handling fee or require a minimum amount on any order. SuperBreakers does not ship on customer accounts.
Same Day Shipping
We strive to ship out your items the same day the order is placed. In rare circumstances SuperBreakers may reserve up to 5 business days to consolidate orders for complete shipment.
Expedited Shipments
Orders being shipped via Next Day Air, 2 Day Shipping or 3 Day Shipping must be received by 3 PM EST to guarantee same-day shipments. Expedited orders only ship on normal business days. Shipments will NOT be sent out on Saturdays and Sundays.
International Shipping
All International orders require a $1,000 minimum order threshold. Due to the special nature of these shipments, we require that these be placed with a SuperBreakers representative. Additional shipping and instructions will apply. All International Orders are Non-Cancel and Non-Refundable.
Reviews
Review summary
Customers rate this product 5.0 out of 5 based on 2 reviews.
Total 5 star reviews: 2 Total 4 star reviews: 0 Total 3 star reviews: 0 Total 2 star reviews: 0 Total 1 star reviews: 0
Search
Rating
2 reviews
- SDSal D.Verified BuyerReviewingEaton / Cutler-Hammer FB3125 - 125A 3 Pole Molded Case Circuit BreakerI recommend this productRated 5 out of 5 stars4/16/26Breakers
Really happy with the breakers and with the quickness they were delivered

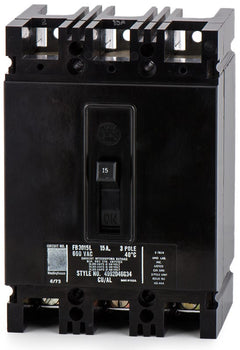

- CBChristopher B.ReviewingEaton / Cutler-Hammer FB3015L - 15A 3 Pole Molded Case Circuit BreakerI recommend this productRated 5 out of 5 stars11/8/20AWESOME JOB
