Eaton/Cutler-Hammer FS130015A Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Eaton/Cutler-Hammer
FS130015A
Circuit Breaker
Brand
Eaton/Cutler-Hammer
SKU
FS130015A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton/Cutler-Hammer FS130015A 1 Pole Circuit Breaker
New
Quantity
Quantity
Eaton/Cutler-Hammer FS130015A 1 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | FS |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 277VAC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | ['Eaton Series C Panelboards', 'Switchboards', 'Motor Control Centers', 'Enclosures'] |
| Wire Gauge | AWG 14 to AWG 10 |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Approval | CSA, UL |
|---|---|
| Temp Rating | 40 °C |
Quantity
Eaton/Cutler-Hammer FS130015A 1 Pole Circuit Breaker
New
Quantity
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | FS |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 277VAC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | ['Eaton Series C Panelboards', 'Switchboards', 'Motor Control Centers', 'Enclosures'] |
| Wire Gauge | AWG 14 to AWG 10 |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Approval | CSA, UL |
|---|---|
| Temp Rating | 40 °C |
Similar Items
Eaton / Cutler-HammerFS340015A
15A 3 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description

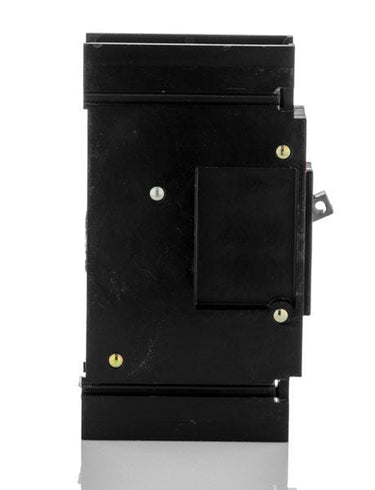

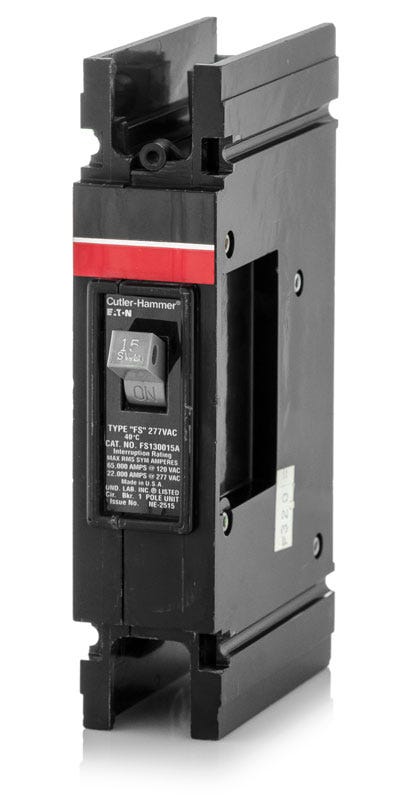

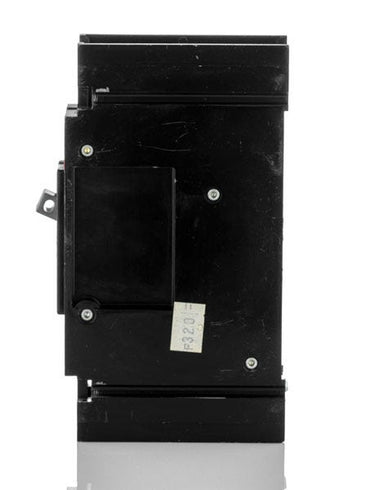

Eaton/Cutler-Hammer FS130015A 1 Pole Circuit Breaker
The Eaton/Cutler-Hammer FS130015A is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 15 Amps and a voltage rating of 277V. It has an interrupting rating of 22kAIC at 277V. The FS130015A has a feed-thru connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | FS |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 277VAC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | ['Eaton Series C Panelboards', 'Switchboards', 'Motor Control Centers', 'Enclosures'] |
| Wire Gauge | AWG 14 to AWG 10 |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Approval | CSA, UL |
|---|---|
| Temp Rating | 40 °C |
Product FAQs
7 answersWhich panelboards and enclosures accept the FS130015A breaker?
The FS130015A is a bolt-on breaker engineered specifically for Eaton Series C panelboards, switchboards, motor control centers, and compatible enclosures. It is not designed for standard plug-on load centers.
How are conductors connected to the FS130015A?
This breaker features a feed-thru connection, meaning it uses lugs on both the line and load sides rather than plugging onto a busbar. These terminals accept wire gauges from 14 AWG to 10 AWG.
What type of trip mechanism does the FS130015A utilize?
It uses a thermal-magnetic trip unit that provides both a long-time delay for overload protection and an instantaneous trip function for short-circuit protection.
Can this breaker replace older Cutler-Hammer FS frame breakers?
Yes, the Eaton FS130015A is a direct replacement for legacy Cutler-Hammer breakers with the same FS130015A catalog number, as Eaton and Cutler-Hammer are the same brand.
Can the FS130015A be reverse fed?
Yes, like all Eaton F-frame circuit breakers, the FS130015A is suitable for reverse feed applications.
Is the FS130015A rated for High Intensity Discharge (HID) lighting applications?
Yes, Eaton F-frame thermal-magnetic circuit breakers in the 10 to 50 amp range, including the 15 amp FS130015A, are suitable for HID lighting use.
Is the FS130015A HACR rated for HVAC equipment?
Yes, all Eaton F-frame circuit breakers carry an HACR rating, making this breaker suitable for use with heating, air conditioning, and refrigeration equipment.
