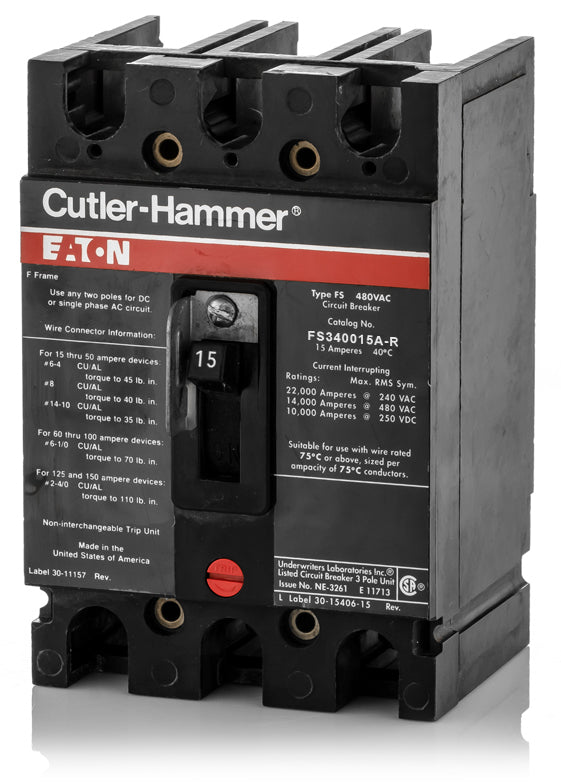

Eaton / Cutler-Hammer FS340015A Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
FS340015A
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FS340015A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer FS340015A - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items

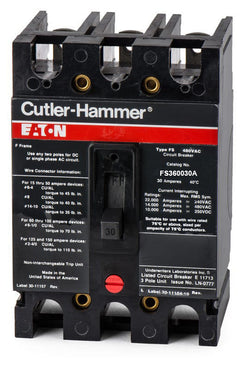

Eaton / Cutler-HammerFS360030A
30A 3 Pole Molded Case Circuit Breaker

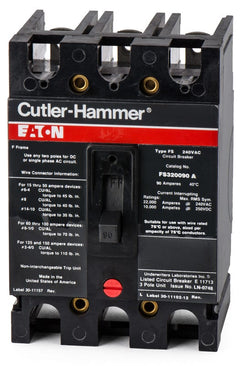

Eaton / Cutler-HammerFS320090A
90A 3 Pole Molded Case Circuit Breaker

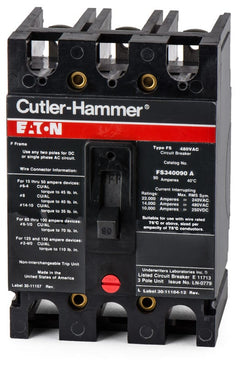

Eaton / Cutler-HammerFS340090A
90A 3 Pole Molded Case Circuit Breaker
Description
Designed to handle commercial power demands, this 3-pole, 15A F-Frame breaker offers reliable thermal-magnetic protection. The Eaton FS340015A is optimized for heavy-duty applications. It mounts firmly into Eaton Series C panelboards, switchboards, and industrial enclosures. Facility managers can utilize this unit as a functional equivalent for systems requiring the FD3015 replacement. Featuring a 14 kAIC rating at 480VAC, the breaker includes a non-interchangeable trip unit and load lugs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FS340015A |
| Series | FS |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FS |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Factory Sealed, Non-Interchangeable Trip, HACR Rated |
Product FAQs
8 answersWhat types of enclosures and panels are compatible with the FS340015A?
This F-frame breaker is designed for use in Eaton Series C panelboards, switchboards, and industrial enclosures.
Is this breaker compatible with older Cutler-Hammer systems?
Yes, Eaton acquired Cutler-Hammer, and this Series C breaker is fully compatible with legacy Cutler-Hammer F-frame panelboards and switchboards.
What wire sizes are supported by the standard lugs on this breaker?
The standard load and line lugs accept 14 AWG to 1/0 AWG copper or aluminum wire.
Does this breaker require a specific mounting style?
Yes, the FS340015A is a bolt-on circuit breaker. It requires appropriate F-frame mounting hardware to secure it directly to the panelboard bus.
Can the FS340015A be used in DC electrical systems?
Yes, it is rated for up to 250VDC with an interrupting capacity of 10kAIC, making it suitable for specific direct current applications.
How does the interrupting capacity change depending on the AC voltage applied?
The breaker provides 14kAIC protection on 480VAC systems, but the interrupting capacity increases to 22kAIC when installed in 240VAC applications.
Can I use an FD-frame breaker as a replacement for the FS340015A?
Yes, FD-frame breakers share the same physical dimensions and mounting as the FS-frame but offer higher interrupting ratings, making them a suitable upgrade if your system requires greater fault protection.
What type of trip unit is installed in the FS340015A?
It features a non-interchangeable thermal magnetic trip unit with fixed long-time and instantaneous trip functions to protect against overloads and short circuits.
