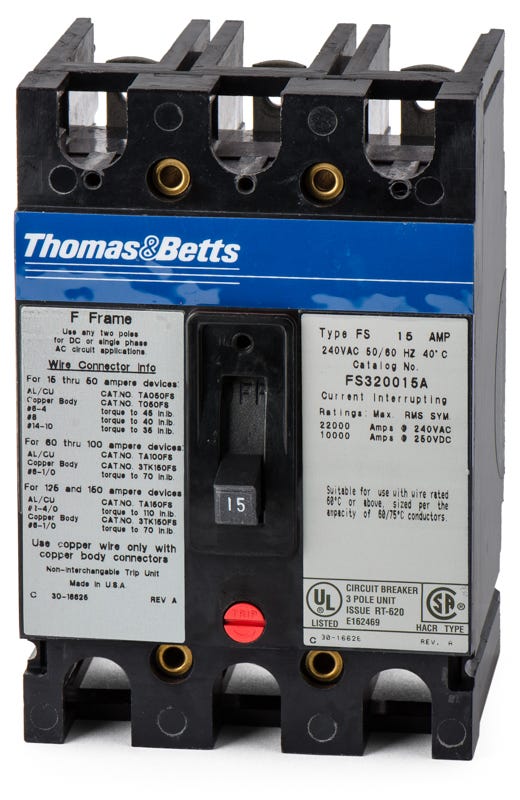

Eaton / Cutler-Hammer FS320015A Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
FS320015A
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FS320015A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer FS320015A - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer FS320015A - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FS320015A |
| Series | FS |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Factory Sealed, Non-Interchangeable Trip, HACR Rated |
Sold out
Quantity
Eaton / Cutler-Hammer FS320015A - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FS320015A-R |
| Series | FS |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Factory Sealed, Non-Interchangeable Trip, HACR Rated |
Similar Items
Eaton / Cutler-HammerFS360030A
30A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerFS320090A
90A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerFS340090A
90A 3 Pole Molded Case Circuit Breaker
Description
Part of the Series C family, this 15A F-Frame breaker delivers reliable thermal-magnetic protection. The Eaton FS320015A provides long-time and instantaneous trip functions for commercial applications. It bolts securely into Eaton panelboards, switchboards, and enclosures. For legacy systems, this unit serves as an exact fit, though it has been replaced by the FD3015 in newer catalogs. Rated at 22 kAIC at 240VAC, it features a non-interchangeable trip unit and includes line and load lugs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FS320015A |
| Series | FS |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Factory Sealed, Non-Interchangeable Trip, HACR Rated |
Product FAQs
6 answersIs the FS320015A still in active production, or is there a direct replacement?
The FS320015A is a legacy Series C F-Frame breaker. While it serves as an exact fit for existing installations, it has been succeeded by the FD3015 in newer Eaton catalogs.
Are the lugs on this F-Frame breaker compatible with newer Eaton frames?
Yes, Series C F-Frame terminals and lugs are compatible with newer Eaton Power Defense PD2 frame breakers, and vice versa.
Can the FS320015A be used in reverse feed applications?
Yes, Eaton Series C F-Frame thermal-magnetic circuit breakers are suitable for reverse feed use.
Is this breaker suitable for high intensity discharge (HID) lighting applications?
Yes, all Eaton F-Frame thermal-magnetic circuit breakers rated 10A to 50A are suitable for HID use.
Does this breaker carry an HACR rating for HVAC equipment?
Yes, all Eaton F-Frame circuit breakers are HACR rated for use with heating, air conditioning, and refrigeration equipment.
Does this breaker feature an adjustable trip unit?
No, the FS320015A features a fixed thermal and fixed magnetic trip unit. The trip unit is non-interchangeable.
