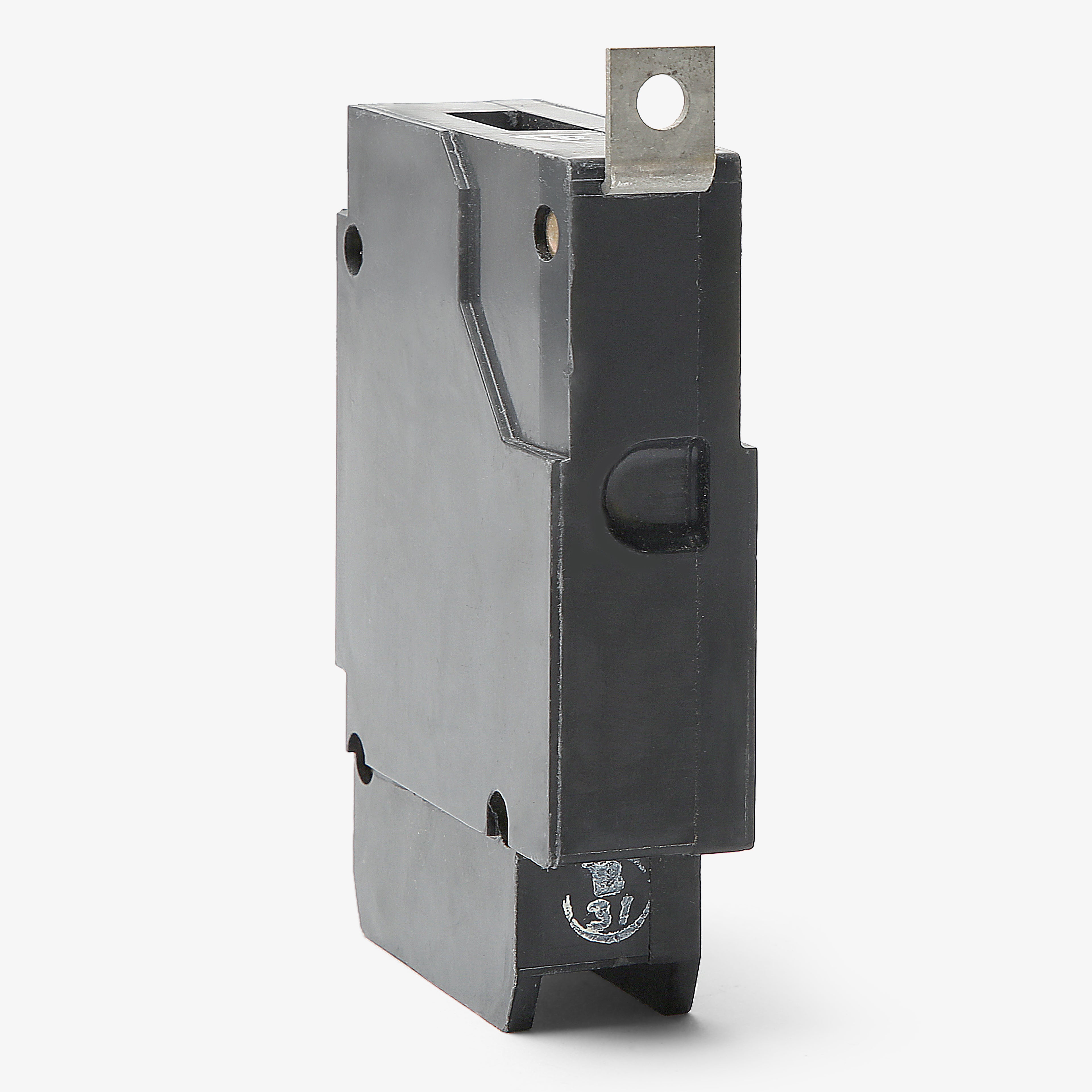

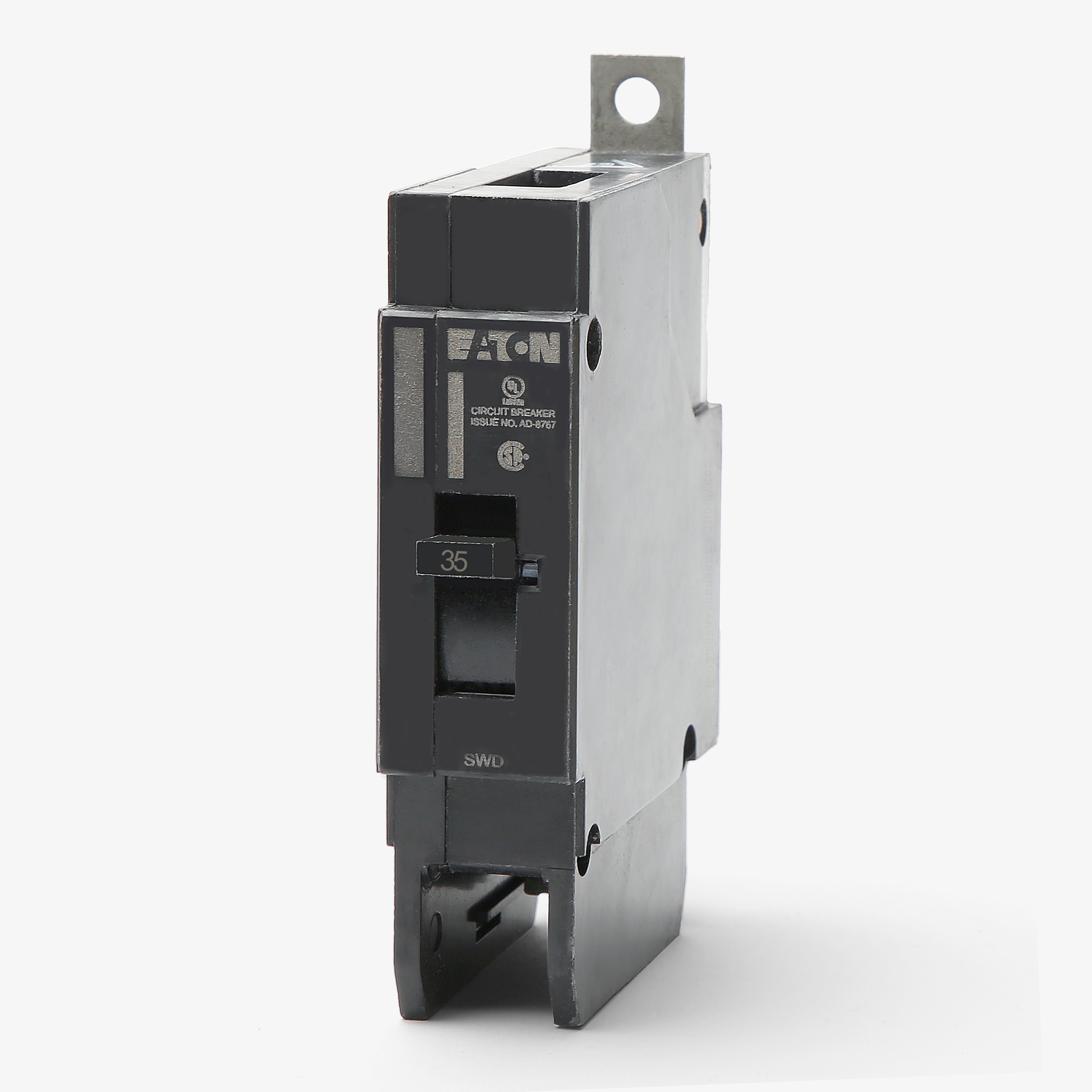

Eaton / Cutler-Hammer GHB1035 Molded Case Circuit Breaker
- 35A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
GHB1035
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB1035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB1035 - 35A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 1 Pole Molded Case Circuit Breaker
45A 1 Pole Molded Case Circuit Breaker
50A 1 Pole Molded Case Circuit Breaker
Description
Rated for 35 amps, this 1-pole MCCB belongs to the Eaton Series C G-Frame family. It provides reliable thermal-magnetic protection for commercial and industrial electrical systems. Featuring a standard bolt-on configuration, the breaker mounts into Eaton Pow-R-Line C panelboards, switchboards, and motor control centers. It accepts #10-1/0 AWG wire. With an interrupting capacity of 14 kAIC at 277VAC, it safely clears electrical faults. The unit is also HACR rated and reverse feed capable.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB1035 |
| Series | GHB |
| Amperage | 35A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | #10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
5 answersWhat panelboards are compatible with the GHB1035 circuit breaker?
It is designed for use in Eaton Pow-R-Line C panelboards, including PRL1a, PRL2a, and PRL3a models, as well as compatible Eaton switchboards and motor control centers.
What is the recommended lug torque for the GHB1035 circuit breaker?

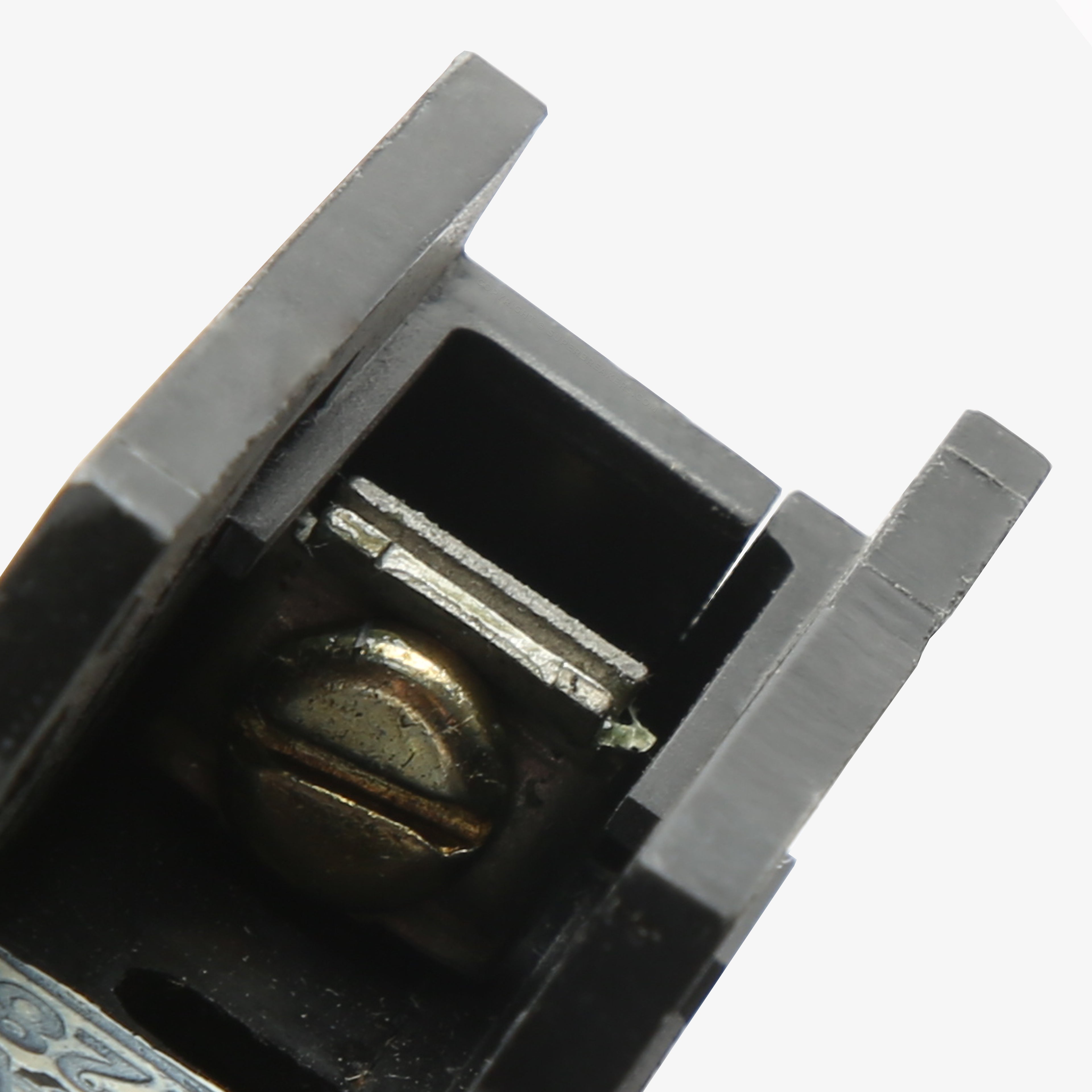

The tightening torque depends on the wire gauge. Torque to 20 lb-in for #10 AWG, 40 lb-in for #8 AWG, and 45 lb-in for #6 to 1/0 AWG conductors.
Can the Eaton GHB1035 replace older Cutler-Hammer or Westinghouse breakers?
Yes. Eaton manufactures the GHB series to the exact physical and electrical specifications as legacy Cutler-Hammer and Westinghouse GHB breakers, making it a direct drop-in replacement.
Does the GHB1035 require a specific mounting hardware kit?

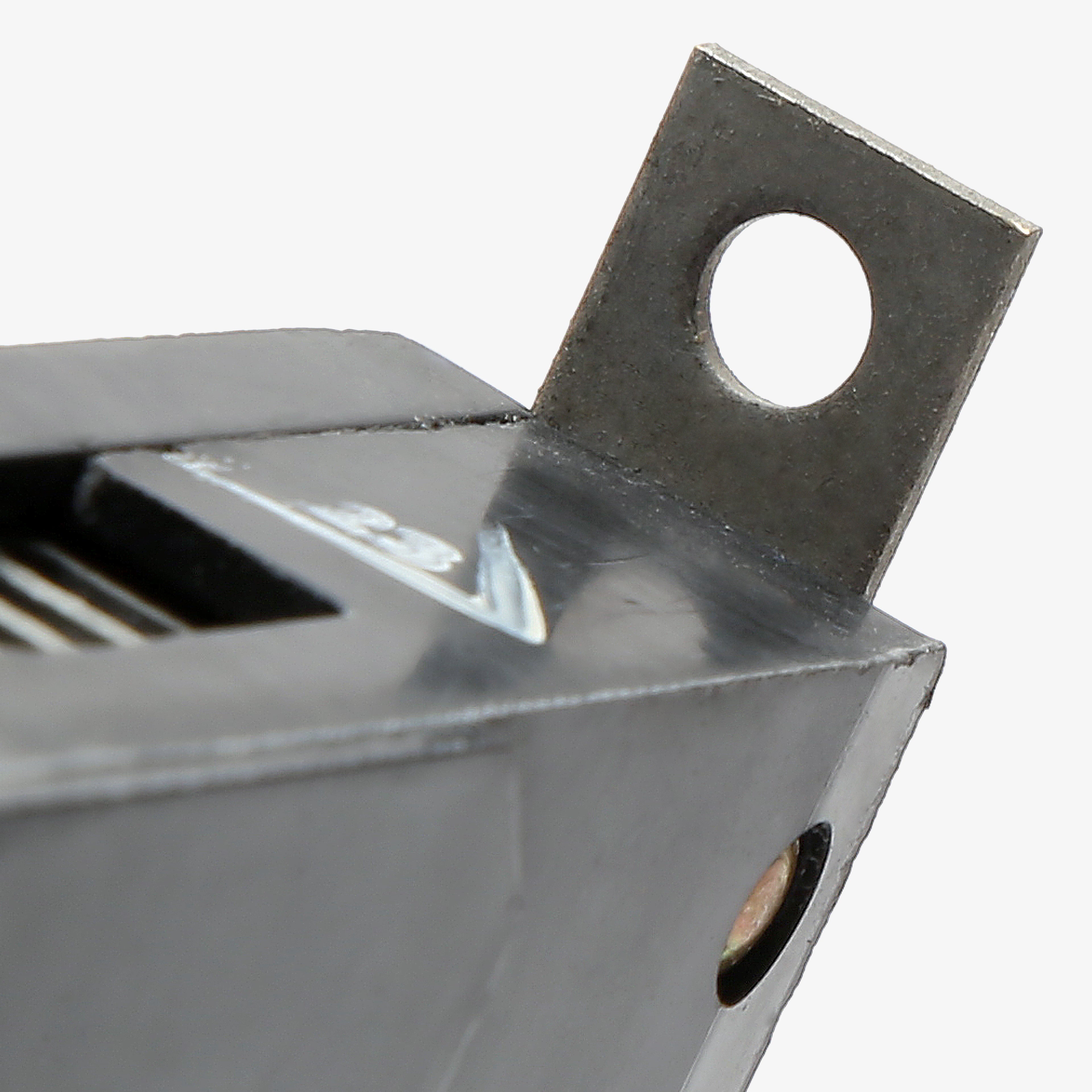

As a bolt-on breaker, it mounts directly to the chassis bus of compatible Pow-R-Line C panelboards using the integrated mounting bracket and bolt. No separate mounting kit is required for standard panelboard installation.
What are the standard safety testing procedures for the GHB1035?
Field testing should follow NEMA AB 4 guidelines for molded case circuit breakers. This includes verifying mechanical operation, checking insulation resistance, and ensuring proper lug torque.
