Eaton / Cutler-Hammer GHB1045 Molded Case Circuit Breaker
- 45A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
GHB1045
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB1045
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

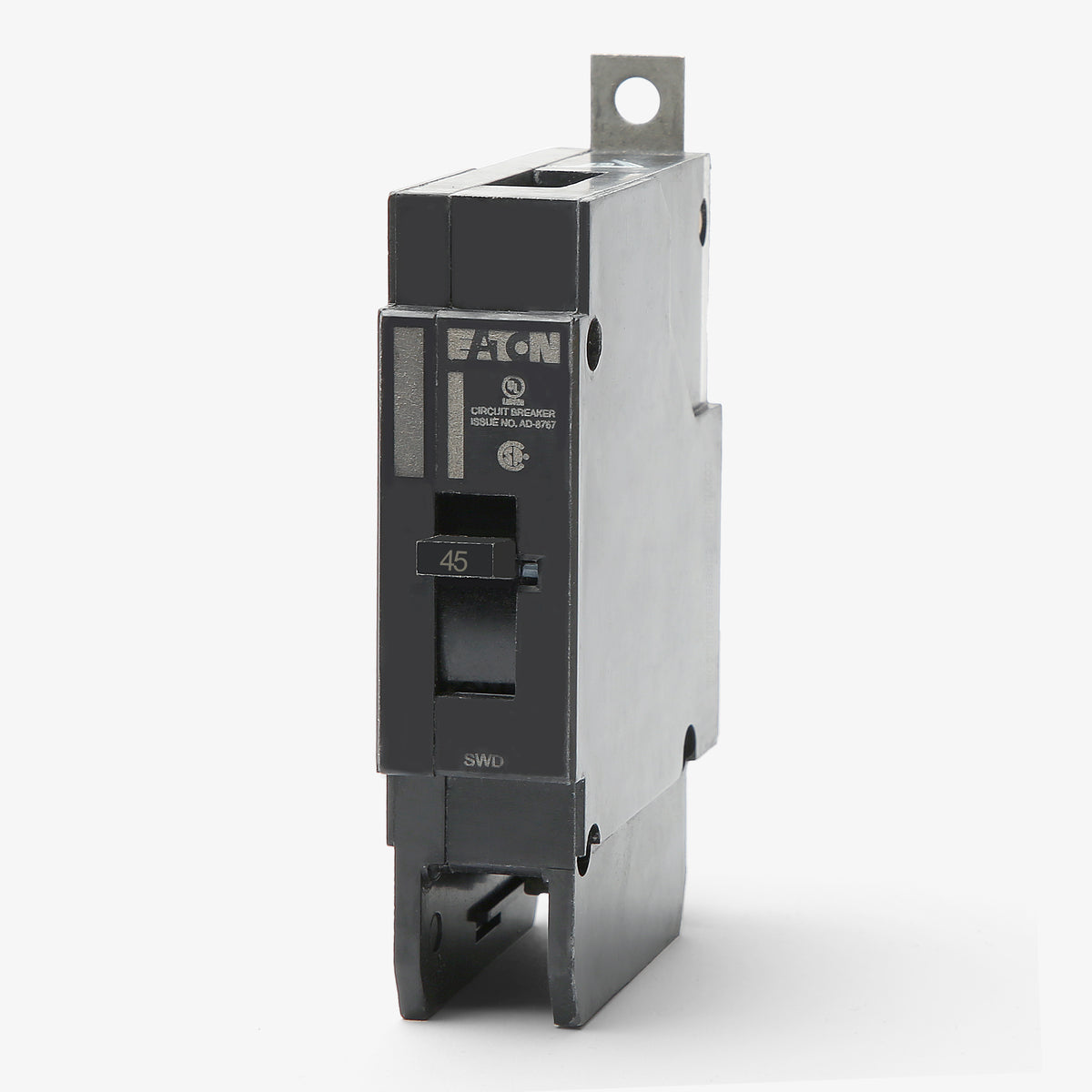

Eaton / Cutler-Hammer GHB1045 - 45A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 1 Pole Molded Case Circuit Breaker
35A 1 Pole Molded Case Circuit Breaker
60A 1 Pole Molded Case Circuit Breaker
Description
Designed for heavy-duty power distribution, the Eaton GHB1045 is a 45A, single-pole molded case circuit breaker offering protection for 120/277VAC systems. This Series C breaker features a secure bolt-on mounting style. It is compatible with Eaton Pow-R-Line C panelboards and motor control centers, and substitutes the GHC1045. With an interrupting capacity of 14kAIC at 277V, the unit ensures robust fault clearing. It is HACR rated and reverse feed capable for diverse installations.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB1045 |
| Series | GHB |
| Amperage | 45A |
| Poles | 1 |

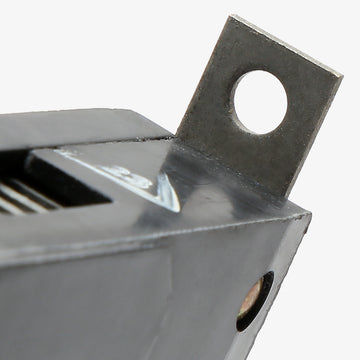

| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | GHB |
|---|---|

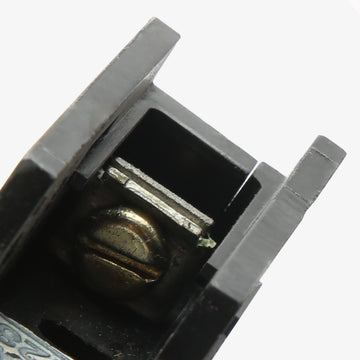

| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards are compatible with the GHB1045 circuit breaker?
This breaker is designed for use in Eaton Pow-R-Line C panelboards, including the PRL1a, PRL2a, PRL3a, PRL1X, PRL2X, and PRL3X series, as well as compatible Eaton switchboards and motor control centers.
Can the GHB1045 breaker be reverse fed?
Yes. Eaton G-frame circuit breakers, including the GHB series, do not have line and load side restrictions and are suitable for reverse feed applications.
Is the 45-amp GHB1045 rated for High Intensity Discharge (HID) or Switching Duty (SWD) applications?
No. Eaton GHB breakers are only available with HID and SWD ratings in 15-amp and 20-amp single-pole models. The 45-amp version is not rated for switching fluorescent or HID lighting loads.
Can the Eaton GHB1045 replace older Westinghouse or Cutler-Hammer breakers?
Yes. Eaton manufactures the GHB series, which serves as a direct, drop-in replacement for legacy Cutler-Hammer and Westinghouse GHB1045 breakers.
What is the continuous current rating for this breaker?
Like most standard molded case circuit breakers, the GHB1045 is rated for 80% continuous duty. Continuous loads should not exceed 36 amps (80% of its 45-amp rating) for three hours or more.
