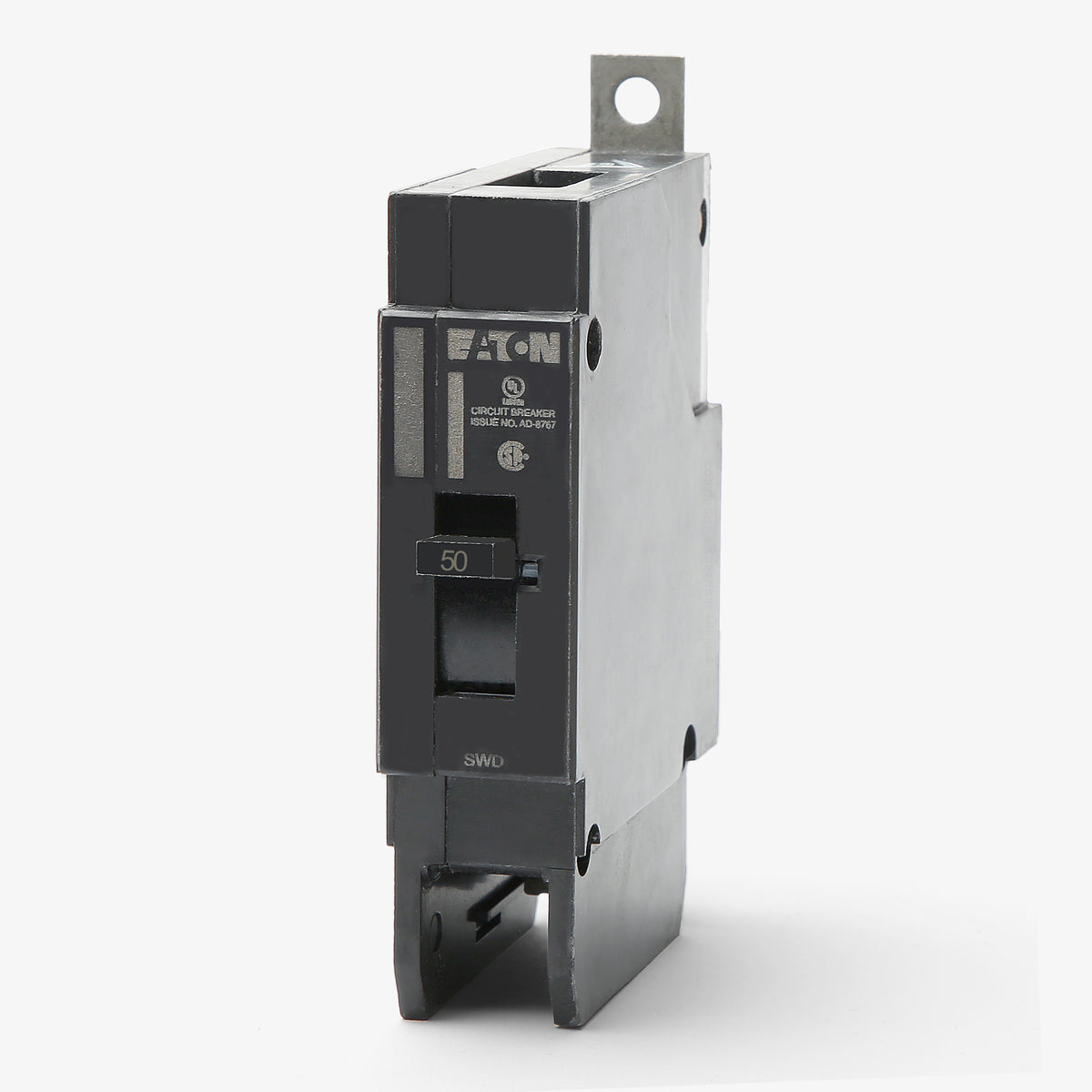

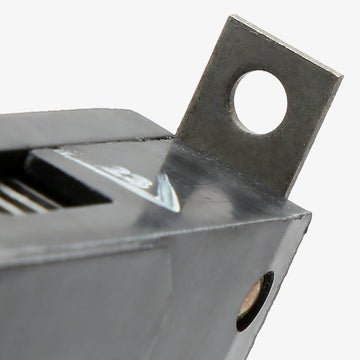

Eaton / Cutler-Hammer GHB1050 Molded Case Circuit Breaker
- 50A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
GHB1050
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB1050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB1050 - 50A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer GHB1050 - 50A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB1050 |
| Series | GHB |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Series C Panelboards |
| Wire Gauge | #10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
Eaton / Cutler-Hammer GHB1050 - 50A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB1050-R |
| Series | GHB |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Series C Panelboards |
| Wire Gauge | #10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
60A 1 Pole Molded Case Circuit Breaker
40A 1 Pole Molded Case Circuit Breaker
35A 1 Pole Molded Case Circuit Breaker
Description
The Eaton GHB1050 is a 1-pole, 50A molded case circuit breaker from the Series C G-frame lineup. Built for commercial power distribution, it delivers reliable thermal-magnetic protection for demanding electrical systems. Featuring a bolt-on mounting style, it installs seamlessly into Eaton Pow-R-Line C panelboards. Rated at 14 kAIC at 277VAC and 65 kAIC at 120VAC, this HACR-rated breaker includes fixed long-time and instantaneous (LI) trip functions and is reverse feed capable.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB1050 |
| Series | GHB |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Series C Panelboards |
| Wire Gauge | #10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersCan I install the Eaton GHB1050 in a standard residential load center?
No. The GHB1050 is a bolt-on molded case circuit breaker designed specifically for commercial Eaton Pow-R-Line C and Series C panelboards. It is not compatible with standard plug-on residential load centers.
Is the GHB1050 circuit breaker HACR rated?
Yes, all Eaton G-frame circuit breakers, including the GHB1050, are HACR rated for use with heating, air conditioning, and refrigeration equipment.
Can the Eaton GHB1050 be reverse fed?
Yes, Eaton G-frame molded case circuit breakers are suitable for reverse feed applications.
Is the 50A GHB1050 rated for switching duty (SWD)?
No. In the Eaton GHB series, only the 15A and 20A single-pole breakers carry the SWD rating for switching fluorescent lighting loads.

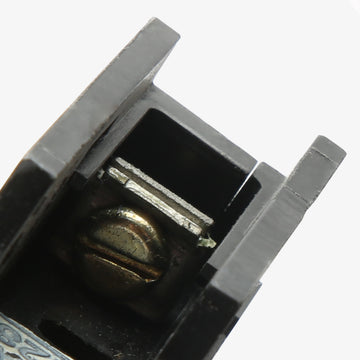

What are the terminal torque specifications for the GHB1050?
The required lug torque depends on the wire gauge. For 14 to 10 AWG wire, torque to 20 in-lb. For 8 AWG, use 40 in-lb. For 6 AWG through 1/0 AWG, torque to 45 in-lb.
Will the Eaton GHB1050 replace an older Westinghouse GHB1050?
Yes. Eaton acquired the Westinghouse distribution equipment line. The Eaton GHB1050 is the direct replacement for legacy Westinghouse and Cutler-Hammer breakers sharing the same catalog number.
