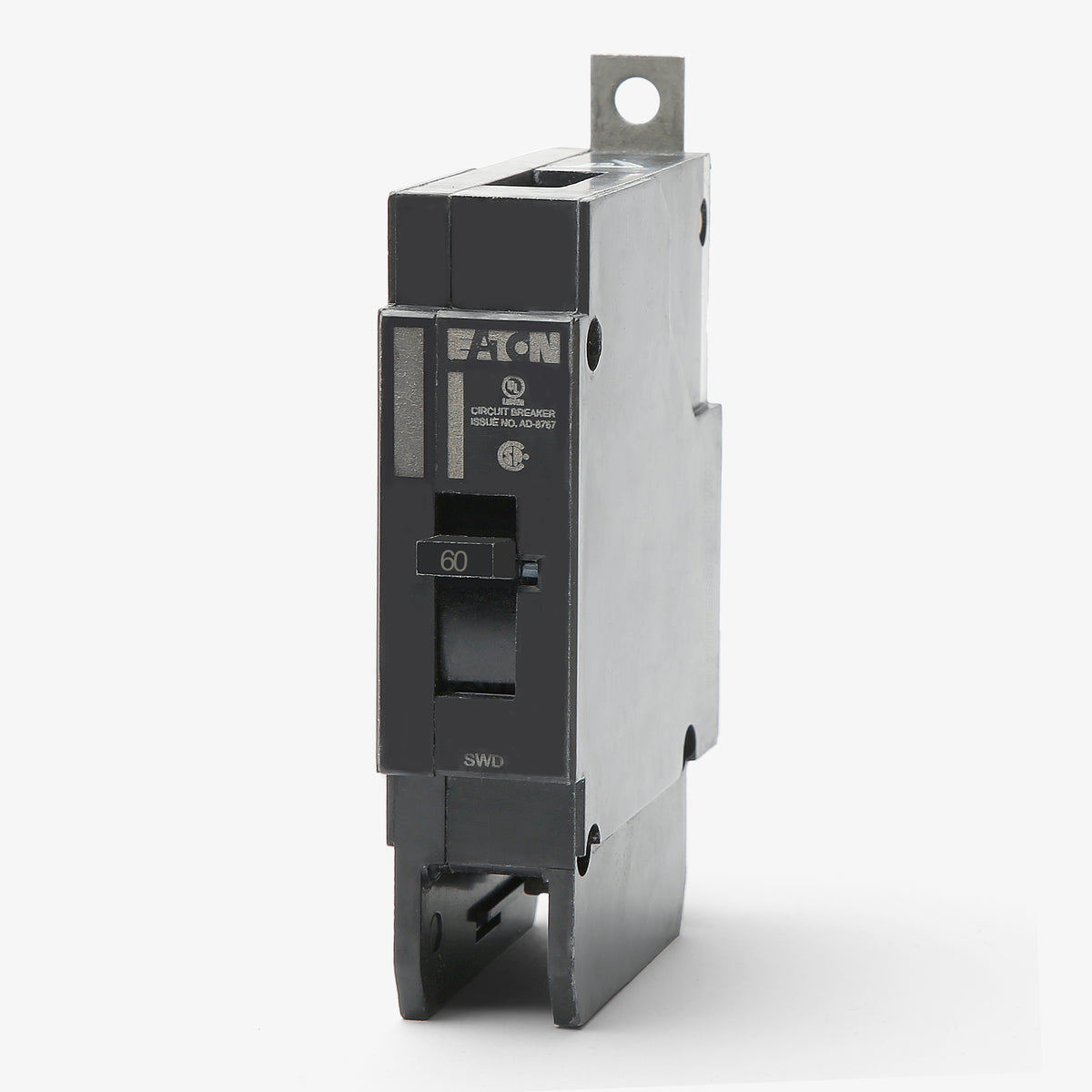

Eaton / Cutler-Hammer GHB1060 Molded Case Circuit Breaker
- 60A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
GHB1060
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB1060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB1060 - 60A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 1 Pole Molded Case Circuit Breaker
45A 1 Pole Molded Case Circuit Breaker
80A 1 Pole Molded Case Circuit Breaker
Description
A dependable choice for commercial facilities, the Eaton GHB1060 is a 1-pole, 60-amp molded case circuit breaker. As part of the Series C G-frame line, it delivers essential thermal-magnetic overcurrent protection. This unit bolts into Eaton Pow-R-Line C panelboards, switchboards, and motor control centers, serving as a substitute for the GHC1060. It offers a 14 kAIC rating at 277VAC, fixed LI trip functions, and HACR certification for heating and cooling equipment.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB1060 |
| Series | GHB |
| Amperage | 60A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | #10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
6 answersWhich panelboards are compatible with the GHB1060 circuit breaker?
The GHB1060 is designed for use in Eaton Pow-R-Line C panelboards, specifically the PRL1a, PRL2a, and PRL3a series, as well as compatible switchboards and motor control centers.
Can the Eaton GHB1060 replace older Westinghouse GHB breakers?
Yes. Eaton acquired the Westinghouse electrical distribution business in 1994. The modern Eaton GHB1060 is a direct replacement for obsolete Westinghouse, Challenger, and Cutler-Hammer GHB breakers of the same amperage and pole configuration.
What is the recommended terminal torque for the GHB1060?

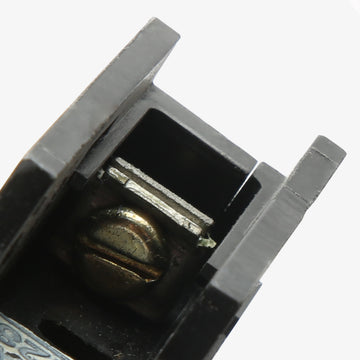

For the standard load lugs, the recommended tightening torque is 20 lb-in for 10 AWG, 40 lb-in for 8 AWG, and 45 lb-in for 6 to 1/0 AWG conductors.
Is the GHB1060 suitable for reverse-feed applications?
Yes. The GHB1060 is a thermal magnetic molded case circuit breaker without line and load restrictions, making it suitable for reverse-feed or back-feed installations.
Can the GHB1060 be used in DC circuits?
Yes, this breaker is rated for DC applications. It carries an interrupting rating of 14kA at 125VDC, making it suitable for direct current control circuits and distribution.
Does the GHB1060 require a separate mounting kit?

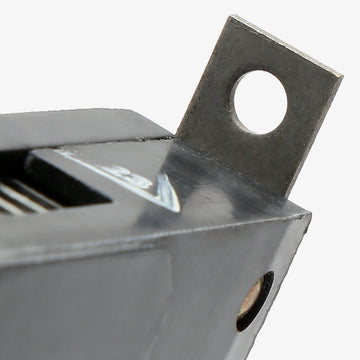

No separate mounting kit is required for standard installation. The GHB1060 features a bolt-on connection that fastens directly to the busbar in compatible Pow-R-Line panelboards.
