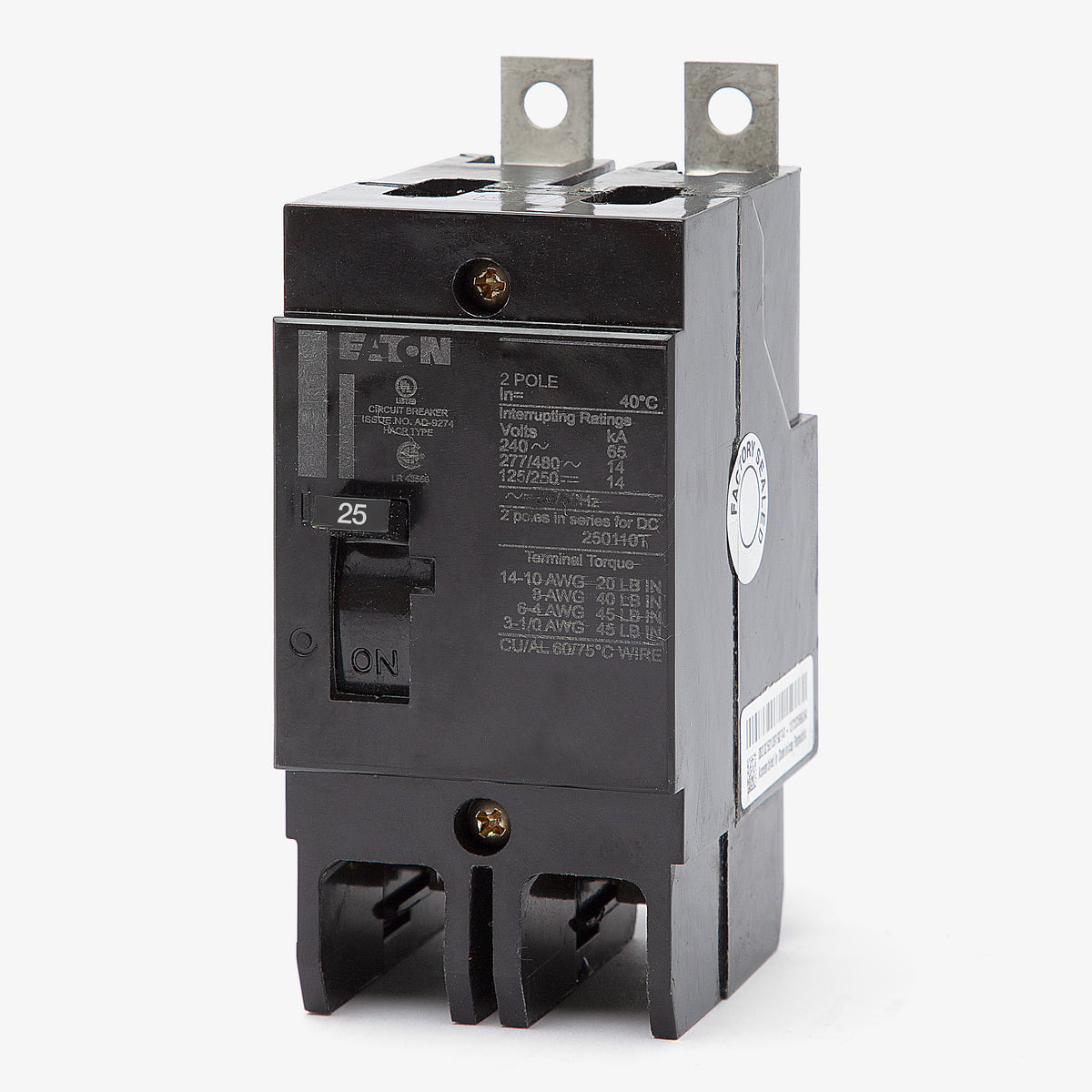

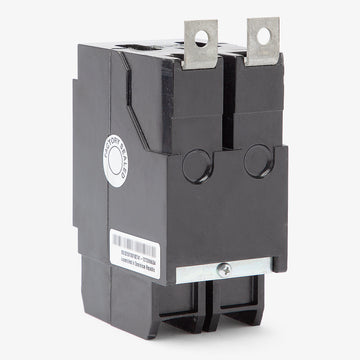

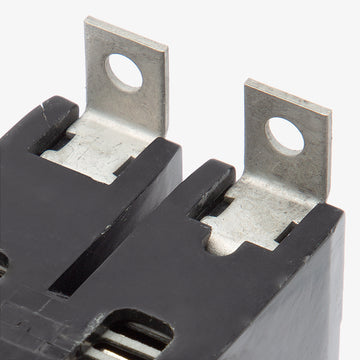

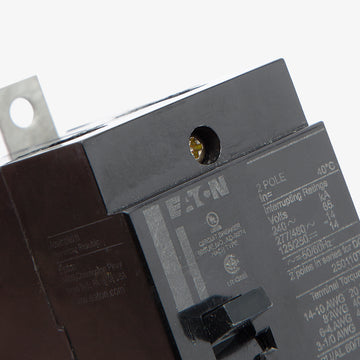

Eaton / Cutler-Hammer GHB2025 Molded Case Circuit Breaker
- 25A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
GHB2025
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB2025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB2025 - 25A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer GHB2025 - 25A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB2025 |
| Series | GHB |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Series C Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Common Trip, Non-Interchangeable Trip |
Sold out
Quantity
Eaton / Cutler-Hammer GHB2025 - 25A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB2025-R |
| Series | GHB |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Series C Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Common Trip, Non-Interchangeable Trip |
Similar Items
20A 2 Pole Molded Case Circuit Breaker
35A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial distribution systems, the GHB2025 delivers reliable thermal-magnetic overcurrent protection. This two-pole molded case circuit breaker is rated for 25 amps and handles up to 480Y/277 VAC or 125/250 VDC. It mounts into Eaton Pow-R-Line C panelboards, switchboards, and motor control centers. The bolt-on design ensures a secure connection for demanding environments. Rated at 65 kAIC at 240V and 14 kAIC at 480Y/277V, it features a patented contact design for high-speed action.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB2025 |
| Series | GHB |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Series C Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Common Trip, Non-Interchangeable Trip |
Product FAQs
5 answersWhat panelboards are compatible with the GHB2025 circuit breaker?
The GHB2025 is designed for use in Eaton Pow-R-Line C panelboards (such as PRL1a, PRL2a, and PRL3a) as well as legacy Series C panelboards.
Can I use the Eaton GHB2025 to replace an older Westinghouse GHB breaker?
Yes. Eaton acquired Cutler-Hammer and Westinghouse's distribution equipment lines. The GHB2025 shares the same physical dimensions and bolt-on mounting as the original Westinghouse and Cutler-Hammer GHB breakers.
Is the GHB2025 suitable for reverse-feed applications?
Yes, the Eaton GHB2025 is suitable for reverse-feed applications, allowing it to be back-fed when used as a main breaker or in specific generator setups.
Is the GHB2025 HACR rated?
Yes, Eaton G-frame circuit breakers from 15A to 100A, including the GHB2025, are HACR rated for use with heating, air conditioning, and refrigeration equipment.
What is the UPC for the Eaton GHB2025?
The standard UPC for the Eaton / Cutler-Hammer GHB2025 is 786679172452.
