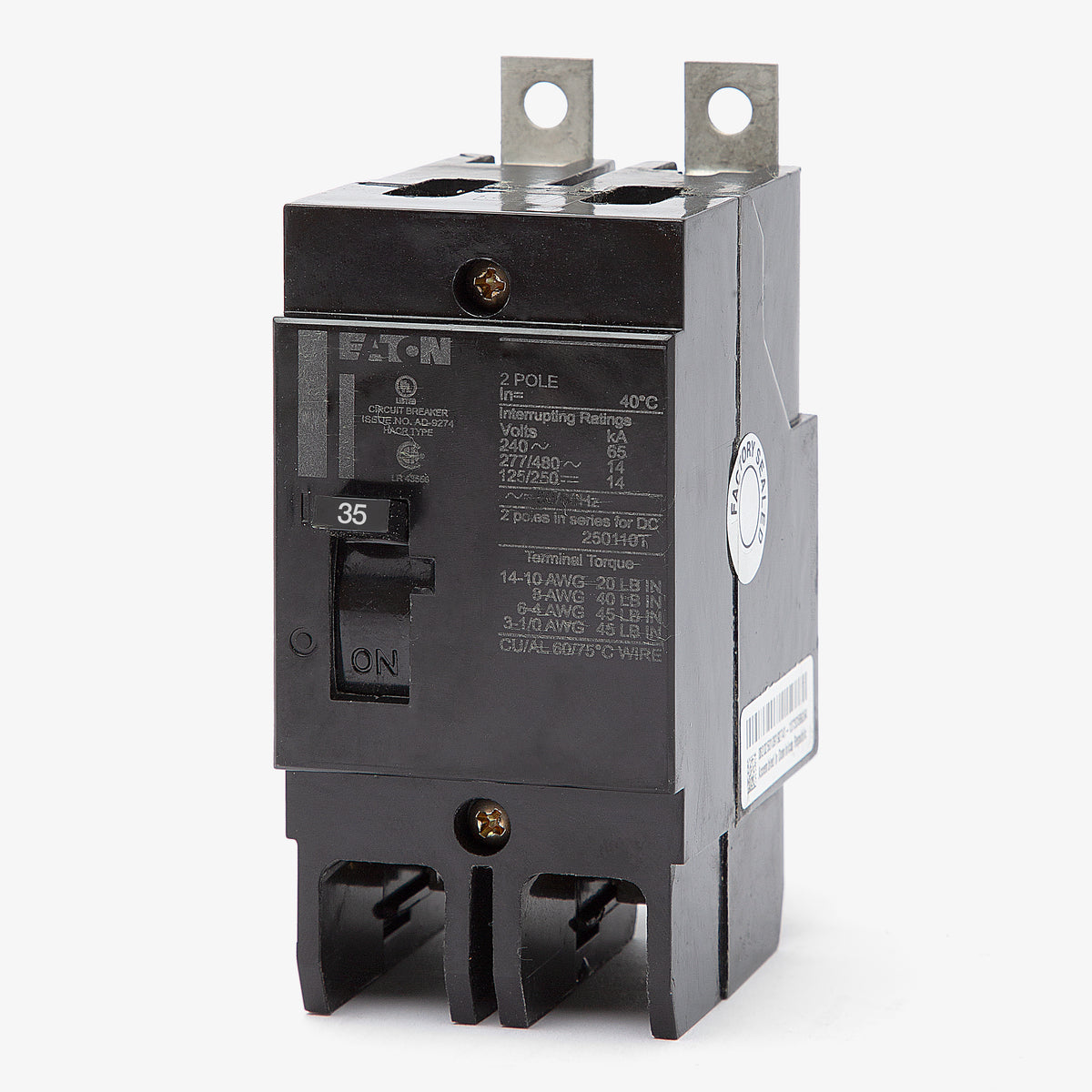

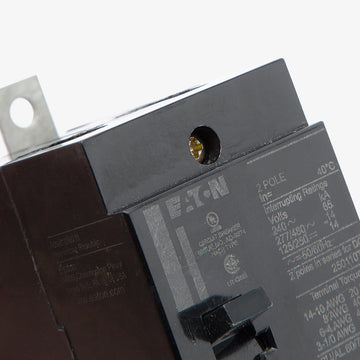

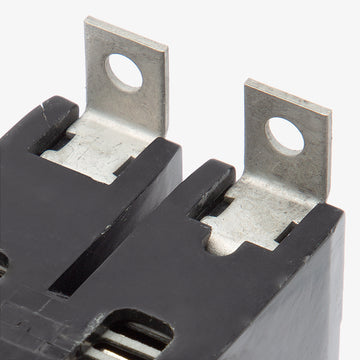

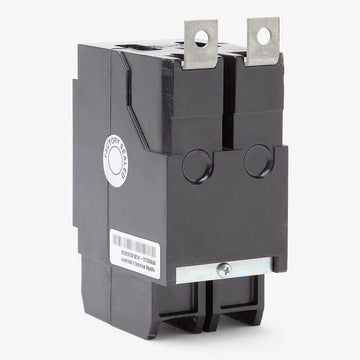

Eaton / Cutler-Hammer GHB2035 Molded Case Circuit Breaker
- 35A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
GHB2035
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB2035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB2035 - 35A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 2 Pole Molded Case Circuit Breaker
45A 2 Pole Molded Case Circuit Breaker
25A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial power distribution, the GHB2035 is a 35-amp, two-pole molded case circuit breaker from Eaton. It provides reliable thermal-magnetic overcurrent protection for demanding electrical systems. This G-frame breaker features a bolt-on mounting style for secure installation. It is fully compatible with Eaton Pow-R-Line panelboards, Series C panelboards, switchboards, and motor control centers.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | GHB |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | #10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
9 answersWhat panelboards are compatible with the GHB2035?
The GHB2035 is designed to bolt into Eaton Pow-R-Line panelboards, specifically the PRL1a, PRL2a, PRL1X, and PRL2X series, as well as legacy Series C panelboards and switchboards.
Can the Eaton GHB2035 replace older Westinghouse GHB breakers?
Yes. Eaton acquired the Westinghouse distribution equipment line, so the modern Eaton GHB2035 is a direct, drop-in replacement for older Westinghouse and Cutler-Hammer breakers with the same catalog number.
What is the recommended lug torque for the GHB2035?
For the standard lugs accepting 10 AWG to 1/0 AWG wire, the recommended torque is 20 lb-in for 10 AWG, 40 lb-in for 8 AWG, and 45 lb-in for 6 AWG to 1/0 AWG conductors.
Does the GHB2035 mount to a standard DIN rail?
No. This is a bolt-on molded case circuit breaker designed to bolt directly to the chassis bus of compatible Eaton panelboards. It cannot be mounted on a DIN rail.
Is the GHB2035 suitable for reverse feed applications?
Yes. Standard Eaton GHB thermal-magnetic circuit breakers do not have line and load markings, making them suitable for reverse feed or back-fed applications, such as when used as a main breaker in a panelboard.
What does the 480Y/277VAC rating indicate for system compatibility?
The slash voltage rating means this breaker can only be applied on solidly grounded wye systems where the line-to-ground voltage does not exceed 277V. It is not rated for ungrounded, corner-grounded, or impedance-grounded 480V delta systems.
Are there interchangeable trip units available for the GHB2035?
No. The GHB2035 features a fixed thermal and fixed magnetic trip unit. The trip unit is factory sealed and non-interchangeable.
Does the GHB2035 provide GFCI or AFCI protection?
No. This is a standard thermal-magnetic circuit breaker that provides overload and short-circuit protection only. It does not include ground fault or arc fault detection circuitry.
How much panel space does the GHB2035 require?
As a 2-pole G-frame breaker, it requires two 1-inch spaces, totaling 2 inches of width, in a compatible Eaton panelboard chassis.
