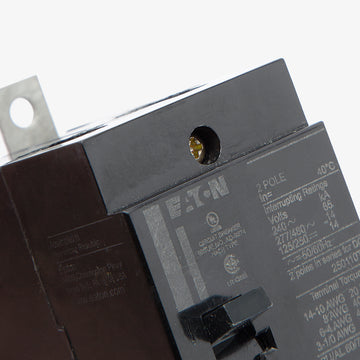

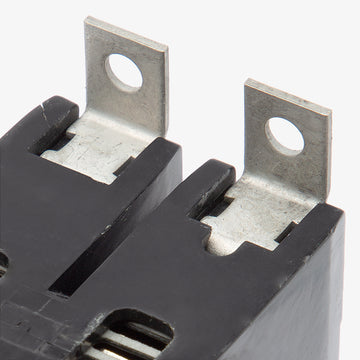

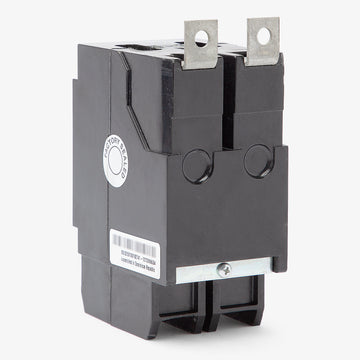

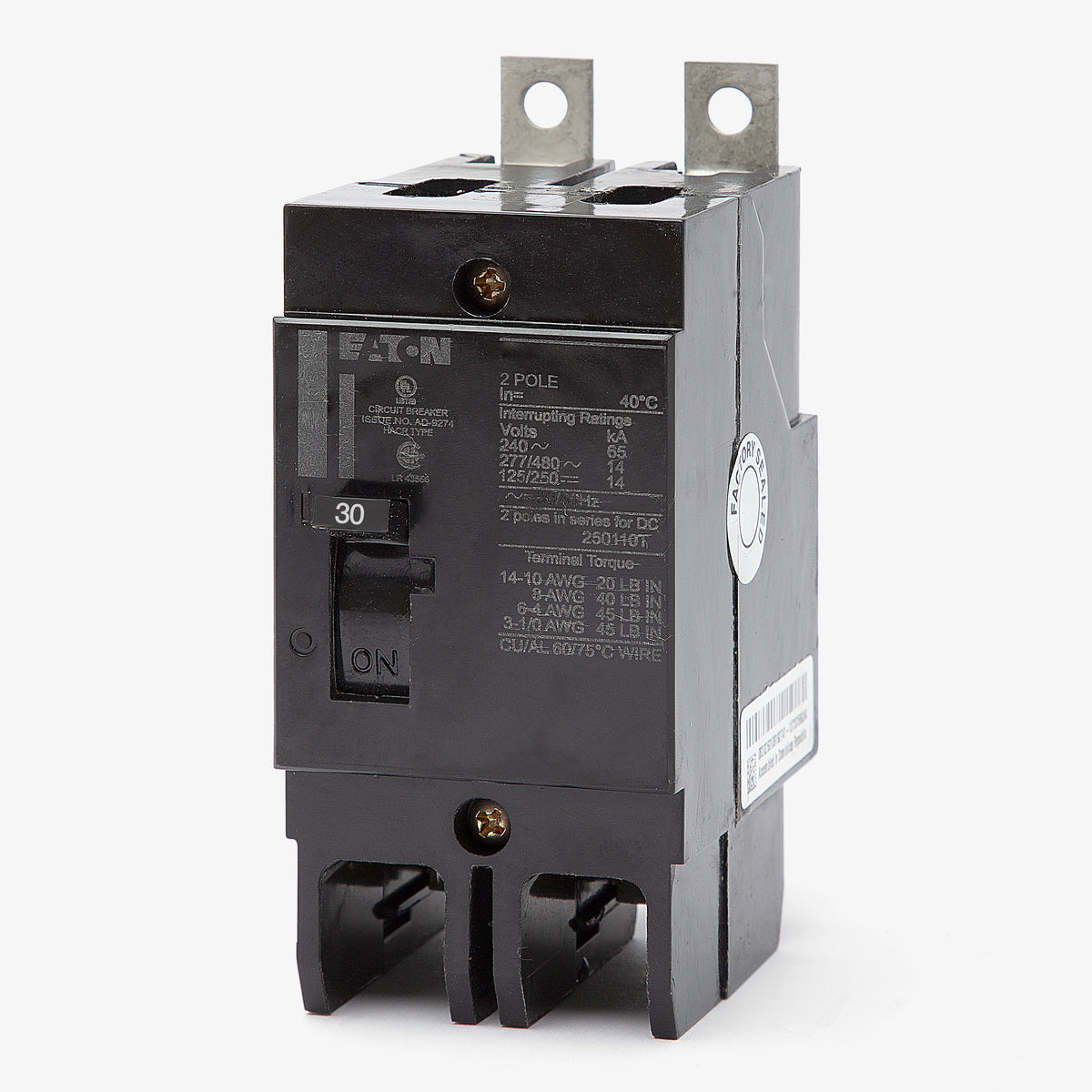

Eaton / Cutler-Hammer GHB2030 Molded Case Circuit Breaker
- 30A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
GHB2030
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB2030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB2030 - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer GHB2030 - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB2030 |
| Series | GHB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Pow-R-Line Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed |
Quantity
Eaton / Cutler-Hammer GHB2030 - 30A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB2030-R |
| Series | GHB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Pow-R-Line Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed |
Similar Items
25A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial distribution, the GHB2030 is a 30A, 2-pole molded case circuit breaker from Eaton. It features a G-frame design with fixed thermal-magnetic trip units, offering reliable protection. The breaker is HACR rated and supports reverse feed applications. This bolt-on MCCB is compatible with Eaton Series C panelboards and motor control centers. It includes lugs that accept 10-1/0 AWG wire. Delivering 14 kAIC at 480Y/277V, it provides excellent short-circuit interruption.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB2030 |
| Series | GHB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Pow-R-Line Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed |
Product FAQs
7 answersWhat panelboards are compatible with the GHB2030 breaker?
This bolt-on breaker installs in Eaton and Cutler-Hammer Series C panelboards, specifically 480Y/277V Pow-R-Line models such as PRL2a and PRL3a, along with compatible switchboards and motor control centers.
Can the GHB2030 be installed in 480V Delta systems?
No. The 480Y/277VAC rating limits this breaker to solidly grounded wye systems with a maximum line-to-neutral voltage of 277V. It is not rated for 480V ungrounded or corner-grounded Delta applications.
Is the Eaton GHB2030 a direct replacement for legacy Westinghouse breakers?
Yes. Current Eaton Series C GHB breakers are the direct replacements for obsolete Westinghouse and Cutler-Hammer GHB frame circuit breakers.
Is this breaker HACR rated for HVAC equipment?
Yes, the GHB2030 carries a HACR rating, permitting its use as branch circuit protection for heating, air conditioning, and refrigeration equipment.
Can the GHB2030 be used in reverse feed installations?
Yes. Eaton Series C G-frame circuit breakers do not have line and load restrictions, making them suitable for reverse feed applications.
Does the GHB2030 have adjustable trip settings?
No. This unit features fixed thermal and fixed magnetic trip functions and cannot be adjusted in the field.
What wire sizes do the factory lugs support?
The standard pressure terminals accept 10 AWG to 1/0 AWG copper or aluminum conductors.
