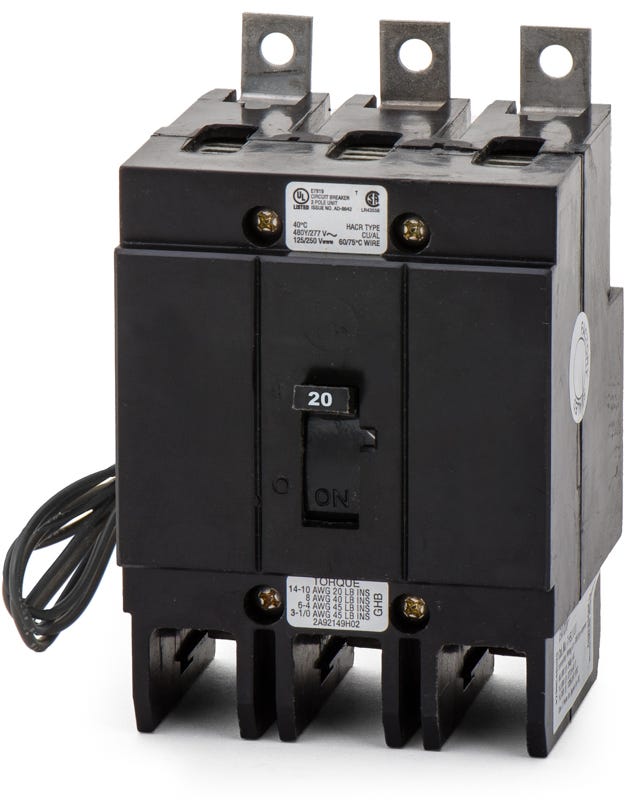

Eaton / Cutler-Hammer GHB3020S1 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
GHB3020S1
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB3020S1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB3020S1 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerGHB3015S1
15A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerGHB3030S1
30A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerGHB3040S1
40A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Eaton GHB3020S1 is a 3-pole, 20A molded case circuit breaker from the Series C G-Frame lineup. It delivers reliable thermal-magnetic protection for demanding electrical systems. This bolt-on MCCB installs into Eaton Pow-R-Line panelboards, switchboards, and motor control centers. Equipped with a factory-installed 120VAC shunt trip, it allows for remote breaker tripping, while providing a 14kAIC rating at 480Y/277VAC.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB3020S1 |
| Series | GHB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhat panelboards are compatible with the GHB3020S1 circuit breaker?
This G-frame breaker is designed for use in Eaton Pow-R-Line panelboards (such as PRL1a, PRL2a, and PRL3a), Series C panelboards, switchboards, and motor control centers that accept bolt-on GHB branch breakers.
What does the S1 suffix indicate on the GHB3020S1 catalog number?
The S1 suffix indicates that this breaker includes a factory-installed 120 Vac shunt trip. This allows the breaker to be tripped remotely by applying a 120V control signal to the rear pigtail leads.
Can I use this breaker on a straight 480V ungrounded delta system?
No. The GHB3020S1 has a 480Y/277 Vac slash rating. It is only rated for use on solidly grounded wye systems where the line-to-ground voltage does not exceed 277V. It is not suitable for ungrounded or corner-grounded delta systems.
What is the recommended terminal torque for the GHB3020S1?
For the accepted 14-10 AWG copper or aluminum wire range, the terminal screws should be torqued to 20 lb-in.
Can I use the GHB3020S1 to replace a standard GHB3020?
Yes. It shares the exact same physical dimensions, bolt-on mounting, and electrical ratings as the standard GHB3020. The only difference is the added 120 Vac shunt trip. If remote tripping is not required for your application, the shunt trip leads can be safely capped off.
