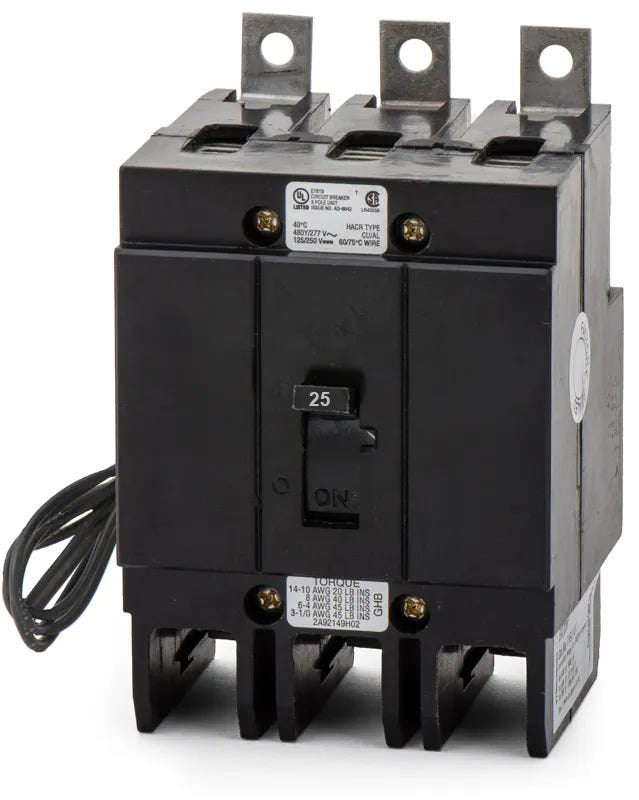

Eaton / Cutler-Hammer GHB3025S1 Molded Case Circuit Breaker
- 25A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
GHB3025S1
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB3025S1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB3025S1 - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerGHB3020S1
20A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerGHB3015S1
15A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerGHB3040S1
40A 3 Pole Molded Case Circuit Breaker
Description
Built for applications requiring remote shutdown, the Eaton GHB3025S1 includes a factory-installed 120VAC shunt trip mechanism. This 3-pole, 25A molded case circuit breaker utilizes standard thermal-magnetic protection for commercial systems. The bolt-on G-frame design fits seamlessly into Eaton Pow-R-Line panelboards and motor control centers. Delivering a 14kAIC rating at 480Y/277VAC, this HACR-rated breaker provides reliable performance and reverse feed capability.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB3025S1 |
| Series | GHB |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Pow-R-Line Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Common Trip, Non-Interchangeable Trip |
Product FAQs
7 answersWhat does the S1 suffix indicate on the GHB3025S1 catalog number?
The S1 suffix indicates that this circuit breaker includes a factory-installed 120VAC shunt trip mechanism with a pigtail lead, allowing for remote tripping of the breaker.
Which panelboards are compatible with the GHB3025S1 circuit breaker?
This G-frame breaker is designed for use in Eaton Series C panelboards, Pow-R-Line panelboards (such as PRL1a, PRL2a, and PRL3a), switchboards, and motor control centers that accept bolt-on GHB breakers.
Can I field-install a shunt trip on a standard GHB3025 breaker instead of ordering the GHB3025S1?
For UL-listed applications, Eaton requires internal accessories like shunt trips to be factory-installed. The GHB3025S1 comes with the 120VAC shunt trip already installed and sealed from the factory.
Is the GHB3025S1 rated for reverse feed applications?
Yes, all Eaton G-frame circuit breakers, including the GHB3025S1, are suitable for reverse feed use.
Is the GHB3025S1 HACR rated?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
Does the GHB3025S1 feature a common trip mechanism?
Yes, all two-pole and three-pole Eaton G-frame circuit breakers are of the common trip type, ensuring that an overcurrent on any single phase will trip all poles simultaneously.
Can the GHB3025S1 be used in 50Hz and 60Hz applications?
Yes, Eaton GHB molded case circuit breakers are rated for use on both 50Hz and 60Hz electrical systems.
