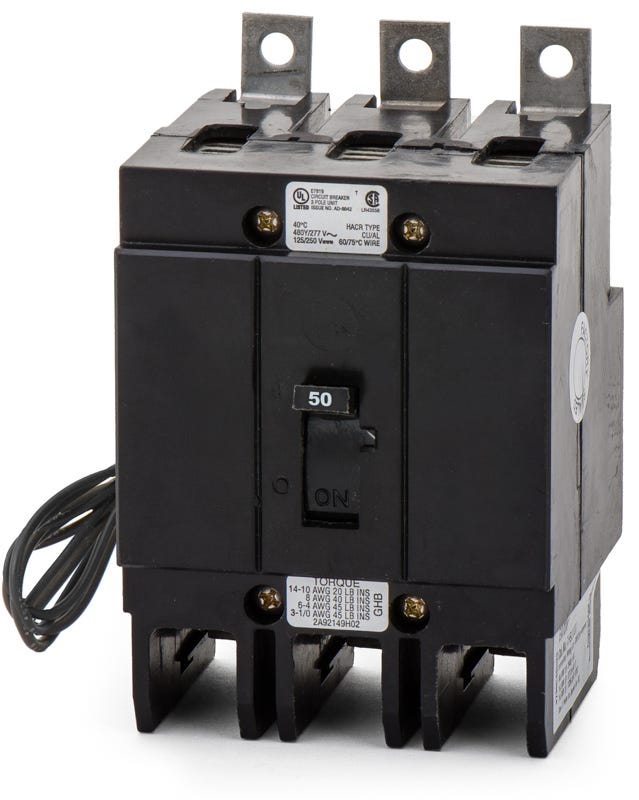

Eaton/Cutler-Hammer GHB3050S1 3 Pole Circuit Breaker
Free Shipping Over $99

Eaton / Cutler-Hammer GHB3050S1 Molded Case Circuit Breaker

  • 50A
  • 3 Pole
  • Bolt-On
Eaton / Cutler-Hammer GHB3050S1
Molded Case Circuit Breaker
Brand Eaton / Cutler-Hammer
SKU GHB3050S1
Select Item Condition
Earn 1334 SuperPoints
  • 50A
  • 3 Pole
  • Bolt-On

Quantity

Bulk Pricing
Send your parts list for a volume quote.
Request Pricing
Eaton/Cutler-Hammer GHB3050S1 3 Pole Circuit Breaker

Eaton / Cutler-Hammer GHB3050S1 - 50A 3 Pole Molded Case Circuit Breaker

New

$1,334.00 In Stock

Quantity

Similar Items

Description SpecificationsProduct FAQs SuperClub Warranties Shipping Reviews 4.8 (30)

Description

Engineered for commercial and industrial distribution, the GHB3050S1 is a 3-pole molded case circuit breaker from Eaton's Series C line. It provides reliable thermal-magnetic protection and includes a factory-installed 120VAC shunt trip for remote shutdown applications. This bolt-on MCCB installs into Eaton Pow-R-Line C, Series C, and legacy Westinghouse PRL2 panelboards. Rated for 14 kAIC at 480Y/277V, it delivers robust performance for motor control and facility power systems.

Specifications

Key specifications
Brand Eaton / Cutler-Hammer
Part Number GHB3050S1
Series GHB
Amperage 50A
Poles 3
Mounting Style Bolt-On
Voltage 240VAC, 480Y/277VAC, 125/250VDC
Phase 3
AIC Rating 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC
Fit and installation
Terminal Type Lugs
For Use With Eaton Pow-R-Line C Panelboards, Series C Panelboards, Westinghouse PRL2 Panelboards
Wire Gauge 10-1/0 AWG (Cu/Al)
Max Wire 1/0 AWG
Min Wire 10 AWG
Protection and operation
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Standards and features
Available Options Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment
Accessories Shunt Trip (120VAC)
Standards CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489
Approval CSA, UL
Temp Rating 40C
Construction Features HACR Rated, Reverse Feed

Product FAQs

5 answers
What does the S1 suffix indicate on the GHB3050S1 catalog number?

The S1 suffix designates a factory-installed 120 VAC shunt trip. This accessory allows the breaker to be tripped remotely by applying a 120V signal to the shunt trip coil, which is commonly used for emergency stop buttons or fire alarm integration.

Which panelboards are compatible with this G-frame breaker?

This bolt-on breaker is designed specifically for Eaton Pow-R-Line C panelboards, Series C panelboards, and legacy Westinghouse PRL2 panelboards.

Can I use this Eaton breaker to replace an older Westinghouse GHB3050S1?

Yes. Eaton acquired the Westinghouse distribution equipment division and continues to manufacture these Series C breakers to the original specifications. An Eaton GHB3050S1 is a direct replacement for a Westinghouse or Cutler-Hammer breaker with the exact same catalog number.

Is this breaker suitable for a 480V ungrounded delta system?

No. The 480Y/277 Vac specification is a slash voltage rating. This means the breaker is only suitable for solidly grounded wye systems where the line-to-ground voltage does not exceed 277V. It must not be installed on 480V ungrounded or corner-grounded delta systems.

What wire sizes and materials do the factory terminals accept?

The included pressure line and load terminals accept wire sizes from 10 AWG up to 1/0 AWG. The lugs are dual-rated, meaning they can safely terminate either copper or aluminum conductors.
