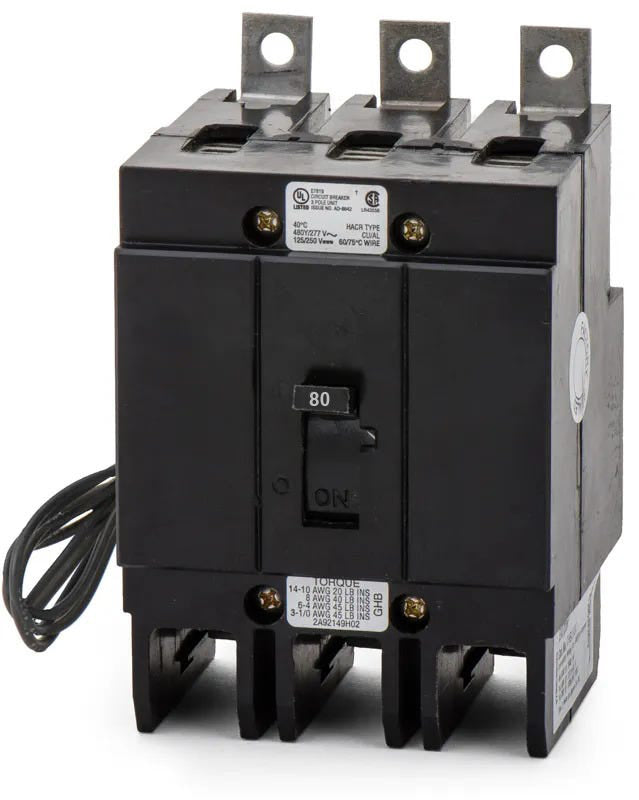

Eaton / Cutler-Hammer GHB3080S1 Molded Case Circuit Breaker
- 80A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
GHB3080S1
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB3080S1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB3080S1 - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerGHB3070S1
70A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerGHB3100S1
100A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerGHB3060S1
60A 3 Pole Molded Case Circuit Breaker
Description
Designed for motor control and industrial setups, this 80-amp G-frame breaker includes a factory-installed 120VAC shunt trip for remote shutdown capabilities. The three-pole unit fastens into Eaton Pow-R-Line C, Series C, and legacy Westinghouse PRL2 panelboards via bolt-on mounting. Delivering 14kAIC at 480Y/277V, this HACR-rated and reverse-feed capable component ensures robust thermal-magnetic protection while meeting strict commercial safety standards.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB3080S1 |
| Series | GHB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Series C Panelboards, Westinghouse PRL2 Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
7 answersWhich panelboards are compatible with the GHB3080S1 circuit breaker?
This breaker is designed for installation in Eaton Pow-R-Line C, Series C, and legacy Westinghouse PRL2 panelboards.
What does the S1 suffix mean in the GHB3080S1 catalog number?
The S1 suffix indicates that the breaker comes equipped with a factory-installed 120VAC shunt trip, which allows the breaker to be tripped remotely for emergency shutdown or control purposes.
What wire sizes are supported by the terminals on this breaker?
The standard lugs on the GHB3080S1 accept wire gauges from 10 AWG up to 1/0 AWG and are compatible with both copper (Cu) and aluminum (Al) conductors.
Can the Eaton GHB3080S1 replace older Westinghouse breakers?
Yes, Eaton (formerly Cutler-Hammer) GHB breakers are direct, drop-in replacements for legacy Westinghouse GHB breakers with the same specifications, as they share the same G-frame design and bolt-on mounting.
Is the GHB3080S1 suitable for HVAC applications?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
Does this breaker support reverse feeding?
Yes, the GHB3080S1 is reverse-feed capable, allowing it to be wired with the line connections on either the top or bottom terminals depending on your panel configuration.
What type of protection does the LI trip function provide?
The LI designation means the breaker includes fixed thermal (Long-Time) protection against gradual overloads and fixed magnetic (Instantaneous) protection against sudden short circuits.
